Specifications
fly ash bricks machine:1) 30 years' development
2) 6 years' export experience
3) reliable service

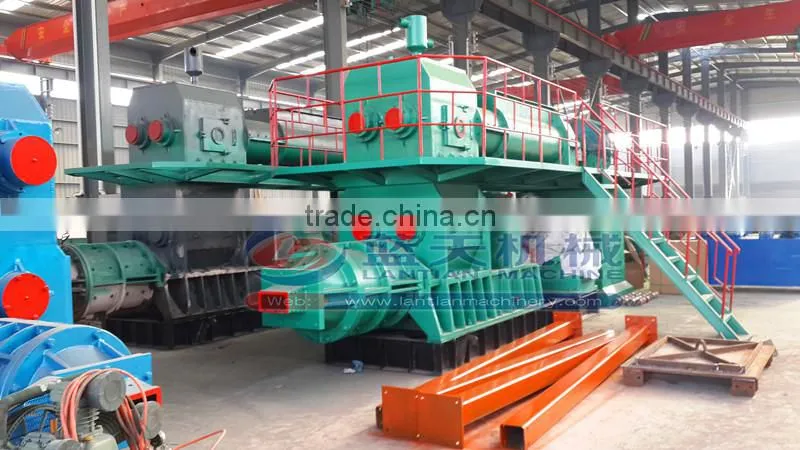

Factory direct sale high quality fly ash bricks machine
Lantian Mechanical Plant
Lantian Mechanical Plant was founded in 1980s. It is a professional bricks machine making factory since
1980s.Through 30 years' development, our factory has been specialized in bricks machine area. Our bricks
machine includes red bricks machine, clay bricks machine, automatic bricks machine, mud bricks machine,
soil bricks machine, fly ash bricks machine. Apart from bricks machine, our factory also produce any kind of
and other assistant equipments of bricks machine. These assistant equipments include crusher,brick cutter,
brick slitter, mixer, etc.(fly ash bricks machine)
Part one: what's fly ash bricks machine?
Fly ash bricks machine just as its name implies, it is to produce brick machinery, general use stone powder,
fly ash, slag, gravel, sand, soil mud, fly ash and water as raw materials, and mix them together to make different
size and shape bricks.(fly ash bricks machine)
Part two: Fly ash bricks machine show
Visitor came to our factory to check our fly ash bricks machine
Part Three: Characteristics of our fly ash bricks machine
Our fly ash bricks machine efficiently use fly ash, slag, powder, desulfurization ash, slag, coal gangue,
phosphorus gypsum, tail sand, such as production of new wall materials, such as autoclaved fly ash brick,
autoclaved lime-sand brick and aerated concrete products, etc. Also applied in the production of high
content fly ash sintered brick, coal gangue sintered brick, brick of stone, brick construction waste, living
garbage burned brick, clay brick and all kinds of waste slag block, desulfurized gypsum comprehensive
utilization, etc., is a large modernization, automation, and the waste brick production line of choice. Using
fly ash/stern/desulfurization ash/slag/ore slag/stone waste carbide slag/phosphorus gypsum brick, recycling
rate above 90%, and each line given solid wastes nearly 100000 tons, products of good quality (20 mpa) or
higher strength, low cost. By changing brick making machine's mold, it can make different shapes and sizes
bricks according to your demands.(fly ash bricks machine)
Part four: Different bricks made by our fly ash bricks machine

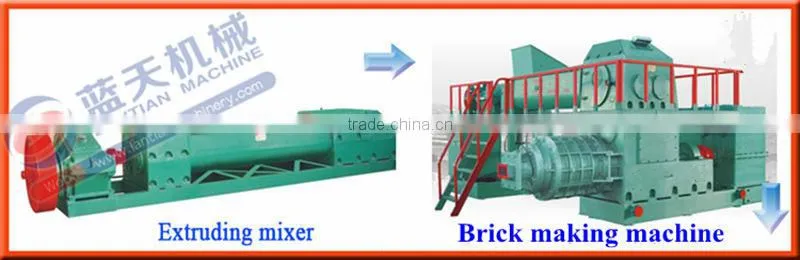

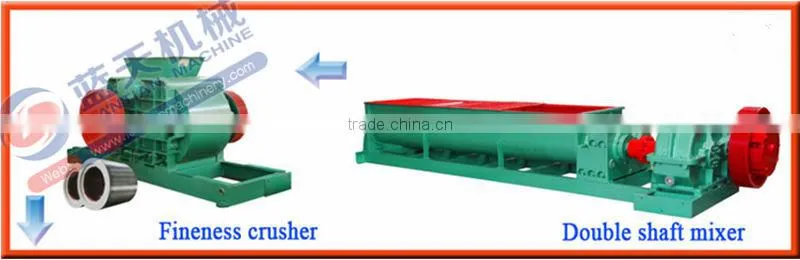

Part five: fly ash bricks machine production line
Fly ash bricks machine production line includes box feeder→ Roller crusher/ Jaw crusher→ Double shaft
mixer→ Finess crusher→ Extrudering mixer →Fly ash bricks machine → Brick slitter→ Brick cutter
1) Taking clay with box feeder, then belt conveyor carries clay to roller crusher till crush clay less than 5 mm.
(fly ash bricks machine)
2) After being crush clay less than 5mm, belt conveyor carries clay powder to double shaft mixer to mix clay.
and then use fineness roller crusher to crush clay under 3 mm.(fly ash bricks machine)
3) After fineness roller crusher, clay powder will less than 3mm. Then belt conveyor carries clay to extrusion
mixer to mix again, which to enhance the plasticity to make good brick. Then clay powder being shaped by
fly ash bricks machine.(fly ash bricks machine)
4) After extruding wet column brick,cutting column brick under 1.0-1.5 mm use the automatic brick cutter to cut
piece brick.with different capacity.(fly ash bricks machine)
Part Six: Raw material of fly ash bricks machine
1) Clay, Mud, Gangue, etc.
2) Fly ash.
3) Shale.
4) River silt.
5) Red soil, black soil.(fly ash bricks machine)
Part Seven: Main parameter of fly ash bricks machine:
Type |
Diameter of reamer of extruding end (mm) |
Capacity (pieces(standard brick size)/h) |
Authorized pressure(Mpa) |
Vacuum Degree(Mpa) |
Installed capacity(kw) |
Dimension(mm) |
JKY70/70-2.5 |
700 |
19000~24500 |
2.5 |
-0.092 |
250+90+1.5 |
6687×6765×2846 |
JKY70/60-3.8 |
600 |
14000~15000 |
3.8 |
-0.092 |
250+90+2.2 |
6632×6855×2866 |
JKY60/60-4.0 |
600 |
21000~24480 |
4.0 |
-0.092 |
250+90+7.5+1.5 |
4819×6416×3065 |
JKY60/50-4.0 |
500 |
12000~18000 |
4.0 |
-0.092 |
200+75+1.5 |
5844×6102×2796 |
JKY50/50-4.0 |
500 |
12200~13420 |
4.0 |
-0.092 |
200+90+7.5+1.5 |
6904×5352×2820 |
JKB50/45-3.0 |
450 |
9800~15100 |
3.0 |
-0.092 |
132+55 |
5375×4521×2723 |
JKR50/45-2.0 |
450 |
12000~16000 |
2.0 |
-0.092 |
110+55 |
4900×4204×2723 |
Installation of fly ash bricks machine
1) Fly ash bricks machine should be installed in a horizontal concrete, fixed by foundation bolt.
2) Fly ash bricks machine's main body should be located vertically with ground.
3) After fly ash bricks machine and its assistant equipments being installed, we should check each part,
each bolt, host storehouse door to see whether ther are tight or not.
4) Confirming the power and control switch according to fly ash bricks machine and its assistant machine's
power.
5) Check finished, we should have a empty load test first. If the test is ok, we can make normal production.
Fly ash bricks machine show:
Our service:
Before-sale services:
(1) tell customer how to build new brick factory, including fly ash bricks machine, drying and firing.(Confirm
clay,power electricity,water,land area, fund)
(2) Guide customers to choose the best and economic plant, recover the investment within short time.
(3) site inspection.(red brick making machine)
In-Sale services:
(1)Quality of red brick making machine control must be inspected strictly
(2)In accordance with the agreements stipulated in the contract.(red brick making machine)
After-sale services:
(1) We will send the technicians about red brick making machine to guide with device installation,
debugging and training operators until customers are fully satisfied.
(2) Guarantee for red brick making machine, materials and equipment supplied under this quotation are
valid for a period of 12 months after commissioning or 16 months after delivery whichever is earlier.
Warranty shall cover manufacturing defect in material and workmanship but exclude:1. Daily wear
and tear 2.mishandling or improper operation3. Incoming power supply fluctuation.(red brick making
machine)
