Hot Sale Factory Sale Brick Molding Machine, Brick Molding Machine Price

Specifications

Hot sale factory sale brick molding machine,brick molding machine price

Lantian Mechanical Plant

Lantian Mechanical Plant was founded in 1980s. It is a professional brick molding machine making factory

since 1980s.Through 30 years' development, our factory has been specialized in brick molding machine

area over 30 years. Our brick molding machine includes clay brick molding machine, mud brick molding

machine, ash brick molding machine, etc. Apart from all kinds of brick moulding machine, our factory also

produce other assistant equipments, such as brick cutter, brick stacker, mixer, feeder, etc.(brick molding

machine)

Part one: what's brick molding machine?

Brick molding machine is suitable for shale, coal gangue, clay and other raw materials to produce all kinds of

hollow brick, standard clay brick. Brick molding machine addopts upper and lower structure. The upper and

lower transmission adopts ZQ type national standard reducer, the axial pneumatic clutch, and the whole

engine is totally welded by steel plate. The surface og the rimer uses wear-resisting material spray welding

process to prolong its service time. (brick molding machine)

Part two: brick molding machine show

Part Three: Characteristics of brick molding machine

1. For doubles shaft mixer blades, we choose 45 Carbon steel.

2. For roller crusher ,we use high manganese

3. Steel axles, gear and other important spare parts which are made by carbon steel and alloy steel through

modulation or quench’s heat treatment procession so as to extend the service life.

4. Compact structure.

5. Strong practicability, small investment, quick effect.(brick molding machine)

Part four: Different bricks made by brick molding machine

Part five: brick molding machine production line

Brick molding machine production line includes box feeder→ Roller crusher/ Jaw crusher→Double shaft

mixer→ Finess crusher→ Extrudering mixer →Brick molding machine → Brick slitter→ Brick cutter→

Brick Stacker→Kiln Car → Kiln.(brick molding machine)

1. Raw material & fuel preparation and handling

 1)Send clay raw material to box feeder with loader. Send the clay raw material to double-roll crusher for

preliminary crushing .

 2)Preliminary crushed material is conveyed to twin-shaft mixing machine for adding water and agitating

through belt conveyer.

 3)After mixing of the first working procedure, the raw material is again sent to intense agitation extruder

and high speed fine pulverizing double roll grinder for supplement water and agitating the raw material.

(brick molding machine)

 2. Molding

1)The molding water content rate should be controlled within 16%-18%.

 2)The vacuum pump will take out the air that entered into the extruding machine together with pug. The

brick molding machine will extrude the pug from machine mouth and then, carry out slitting & parting

according to the required dimension.(brick molding machine)

 3. Drying

1)When the unfired bricks cut by cutter and arranged into groups.

2) The drying chamber work system has heating system, regulating system and moisture excluding system.

The drying quality is controlled by regulating system.(brick molding machine)

 4. Burning

1)After drying , the unfired bricks are sent onto  kiln by the dried brick cart,stacking bricks onto the kiln car

for burning.

2)unloading system The properly burned bricks.(brick molding machine)

Part Six: Main parameter of brick molding machine

Part Seven: Installation of brick molding machine

1) Brick molding machine should be installed in a horizontal concrete, fixed by foundation bolt.

2) Brick molding machine's main body should be located vertically with ground.

3) After brick molding machine and its assistant equipments being installed, we should check

each part, each bolt, host storehouse door to see whether ther are tight or not.

4) Confirming the power and control switch according to brick molding machine and its assistant machine's

power.

5) Check finished, we should have a empty load test first. If the test is ok, we can make normal production.

Work site of brick molding machine show:

Part Eight: How to choose the most suitable brick molding machine?

1) At first, I need to know your raw material.

2) Second, I need to know the brick size, shape.

3) Third, I need to know how many pieces your will make per hour or per day.

4) Fourth, what/s your bricks' application?(brick molding machine)

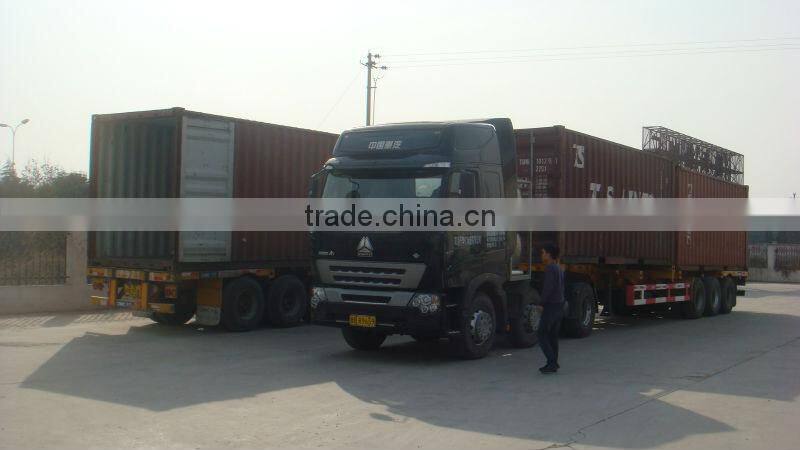

Delivery site of brick molding machine

Visitors came to our factory to test brick molding machine

Our service:

Before-sale services:

(1) tell customer how to build new brick factory, including clc brick making machine, drying and firing.

(Confirm clay,power electricity,water,land area, fund)

(2) Guide customers to choose the best and economic plant, recover the investment within short time.

(3) site inspection.(brick molding machine)

In-Sale services:

(1)Quality of brick molding machine control must be inspected strictly

(2)In accordance with the agreements stipulated in the contract.(brick molding machine)

After-sale services:

(1) We will send the technicians about brick molding machine to guide with device installation, debugging

and training operators until customers are fully satisfied.

(2) Guarantee for brick molding machine, materials and equipment supplied under this quotation are valid

for a period of 12 months after commissioning or 16 months after delivery whichever is earlier. Warranty shall

cover manufacturing defect in material and workmanship but exclude:1. Daily wear and tear 2.mishandling or

improper operation3. Incoming power supply fluctuation.(brick molding machine)
