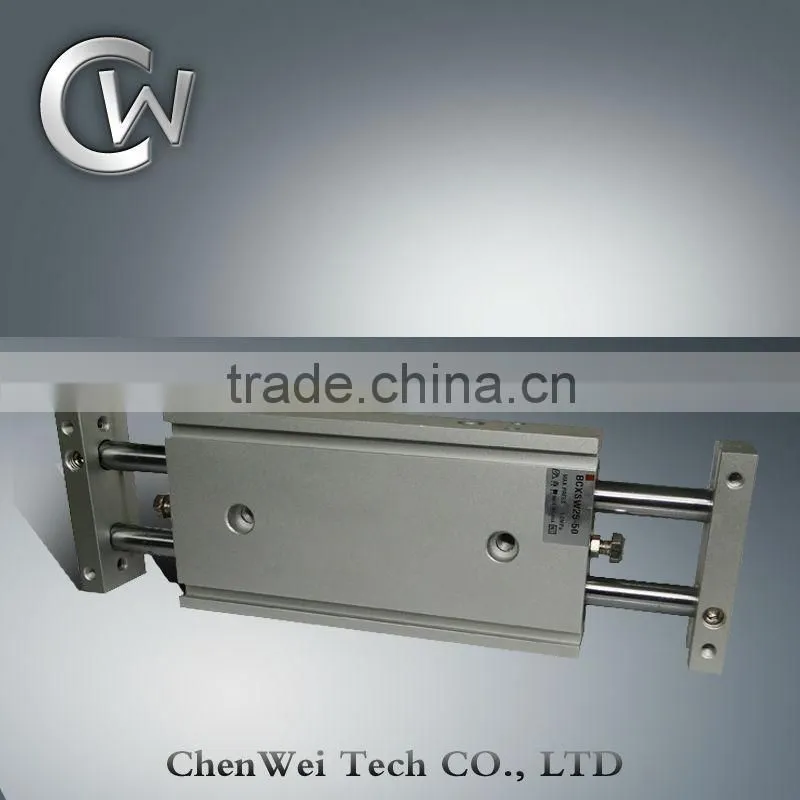

SMC Type CXSW Series Double Rod Pneumatic Cylinder
- 1000 Piece / Pieces per Month
- ningbo or shanghai
- T/T Credit Card PayPal
Product Details
Standard or Nonstandard: | Standard | Structure: | Other, twin rod cylinder | Power: | Pneumatic |
Body Material: | Aluminum | Maximum Stroke: | 200mm | Shaft Diameter: | 8-12mm |
Place of Origin: | Zhejiang, China | Model Number: | CXSW | Brand Name: | CW |
Product Description
Specifications
1.SMC Type CXSW Series Double Rod Pneumatic Cylinder2.Equivalent to SMC
3.Bore size: 10,15, 20, 25, 32mm
4.1 year warranty
SMC Type CXSW Series Double Rod Pneumatic Cylinder
Features:
1.CXS Series SMC pneumatic cylinders.
2.Equivalent to SMC CXS Series SMC pneumatic cylinders, with the same appearance.
3.Double rod design, with twin piston.
4.Bore size(mm): 6, 10, 15, 20, 25, 32.
5.Double acting, Single rod
6.Rubber bumper.
7.Built-in magnet is standard.
How to Order:
Specification:
Bore size (mm) | 6 | 10 | 15 | 20 | 25 | 32 |
Fluid | Air | |||||
Action | Twin acting, Single rod, Twin piston | |||||
Minimum operating pressure | 0.15 MPa | 0.1 MPa | 0.05 Mpa | |||
Maximum operating pressure | 0.7 MPa | |||||
Proof pressure | 1.05 MPa | |||||
Ambient and fluid temperature | -20 to 80°C (No freezing) | |||||
Cushion | Rubber bumper | |||||
Lubrication | Non-lube | |||||
Port size | M5x0.8 | G1/8 |
Standard Stroke:
Main Mterial:
No. | Description | Material | Note |
1 | Pneumatic Cylinder barrel | Aluminium alloy | Hard anodized |
2 | Piston rod | High-alloy steel | Hard chrome plated |
3 | Rod cover | Aluminum alloy | Clear anodized |
4 | End cover | Aluminum alloy | Clear anodized |
5 | Piston | Aluminum alloy | Chromated |
6 | Plate | Aluminum alloy | Clear anodized |
7 | Seal | NBR | - |
Shippment
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.
Package
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage
Payment
1: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
Why choose us
1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok
6: Provide free products information.
7. Reliable quality assured and active after-sell service
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
