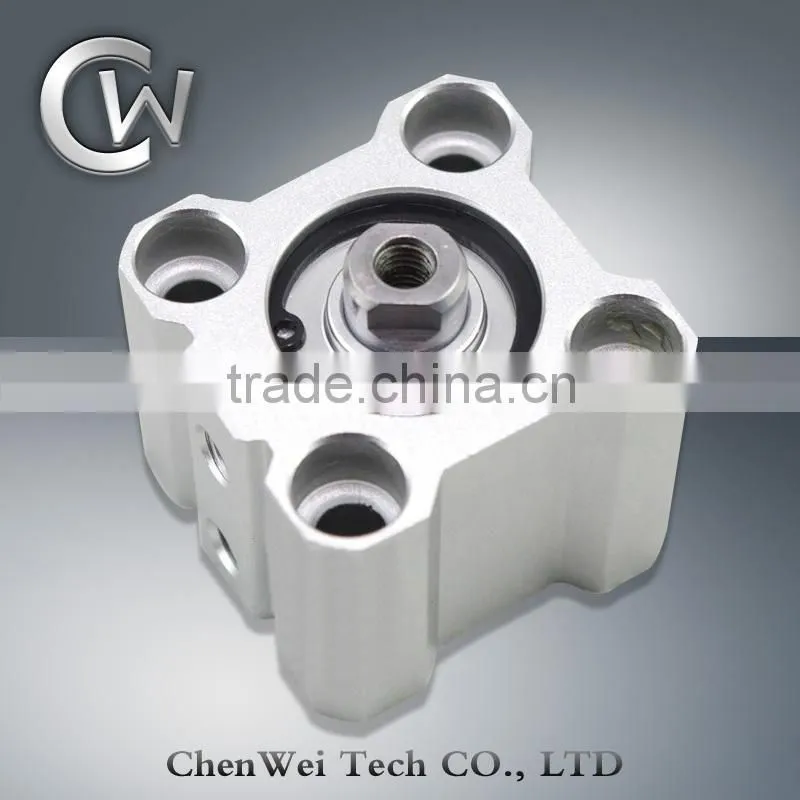

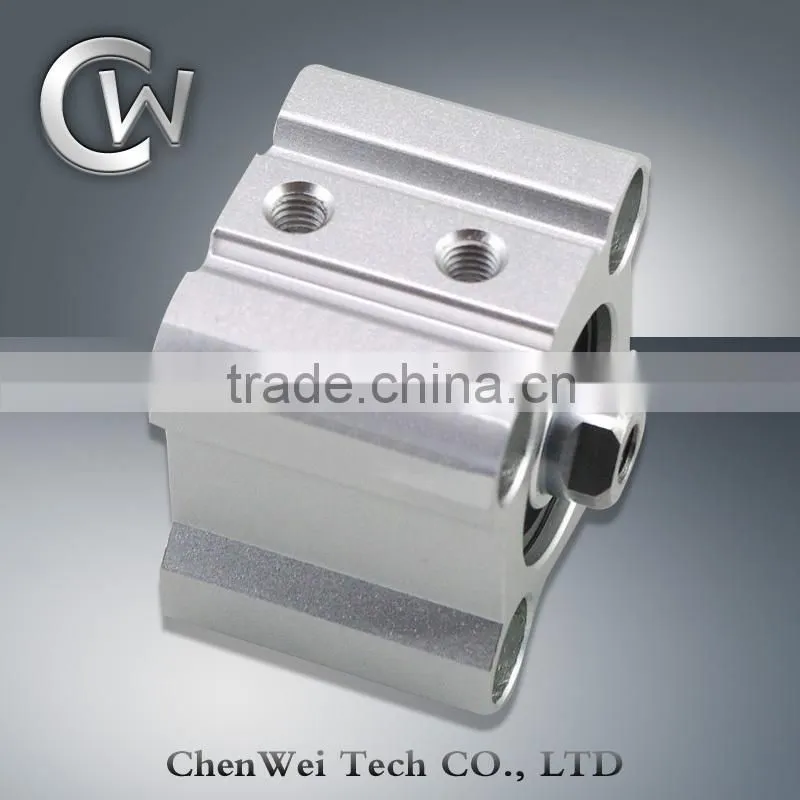

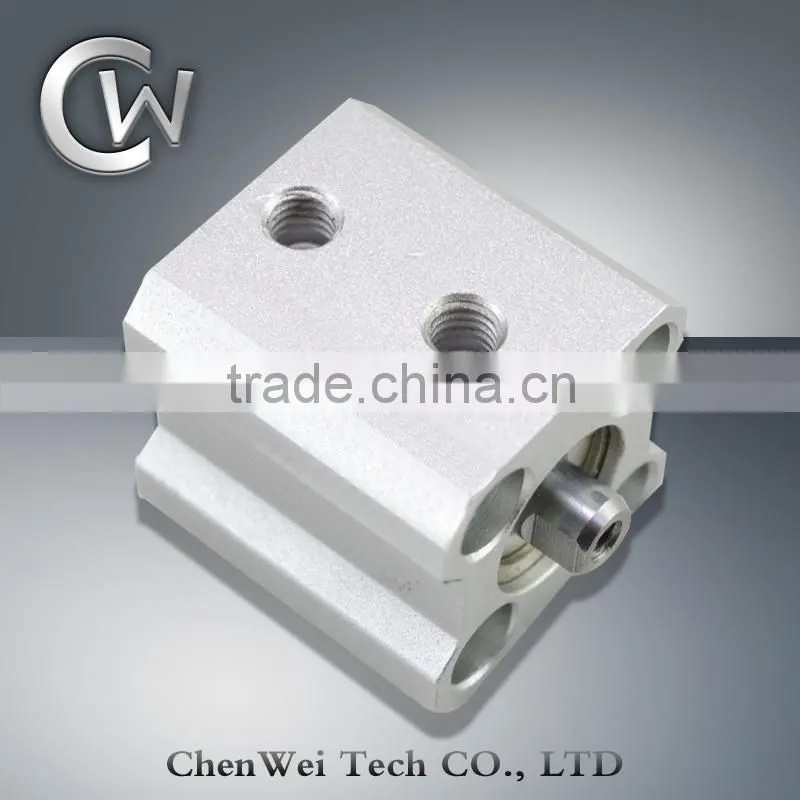

SMC Type CQ2B Series Double Acting Pneumatic Compact Cylinder

Specifications

1.SMC Type CQ2B Series Double Acting Pneumatic Compact Cylinder
2.Double acting, Single/Double rod
3.bore size: 12 to 100mm

SMC Type CQ2B Series Double Acting Pneumatic Compact Cylinder

Features:

1.CQ2 Series Magnetic Pneumatic Cylidners .

2.Equivalent to SMC CQ2 Series Magnetic Pneumatic Cylidners , with the same appearance.

3.Compact design.

4.Bore size(mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100.

5.Double acting, Single/Double rod

6.Single acting, Single rod, Spring return/extend

7.Rubber bumper(Option).

8.Built-in magnet is optional.

9.Cylinder kits, barrel, piston is available.



How to Order:



Specification:



Bore size (mm)		12	16	20	25	32	40	50	63	80	100
Fluid		Air
Action	CQ2-D	Double acting, Single/Double rod
	CQ2-S/T	Single acting, Single rod, Spring return/extend							-
Minimum operating pressure	Double Acting	0.07 MPa		0.05 MPa
	Single Acting	0.25 MPa		0.18 MPa		0.17 MPa	0.15 MPa	0.13 MPa	-
Maximum operating pressure		1.0 MPa
Proof pressure		1.5 MPa
Ambient and fluid temperature		-20 to 80°C (No freezing)
Cushion		Rubber bumper (Option)
Lubrication		Non-lube
Piston rod dia.		6 mm	8 mm	10 mm	12 mm	16 mm		20 mm		25 mm	30 mm
Rod end thread	Female thread	M3x0.5	M4x0.7	M5x0.8	M6x1.0	M8x1.25		M10x1.25		M16x2.0	M20x2.5
	Male thread	M5x0.8	M6x1.0	M8x1.25	M1.0x1.25	M14x1.5		M18x1.5		M22x1.5	M26x1.5
Port size		M5x0.8				G1/8		G1/4		G3/8





Main Material:



No.	Description	Material	Note
1	Cylinder barrel	Aluminium alloy	Hard anodized
2	Piston rod	Stainless steel	ø12 to ø25
		High-alloy steel	Hard chrome plated
3	Rod cover	Aluminum alloy	Clear anodized
4	End cover	Aluminum alloy	Clear anodized
5	Piston	Aluminum alloy	Chromated
6	Seal	NBR	-
6	Seal	NBR	-
