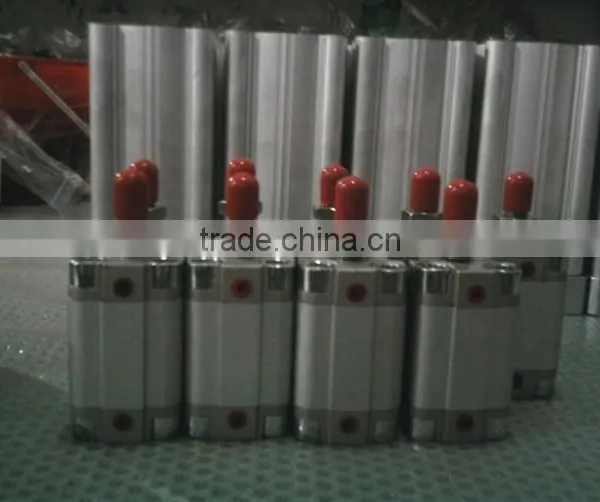

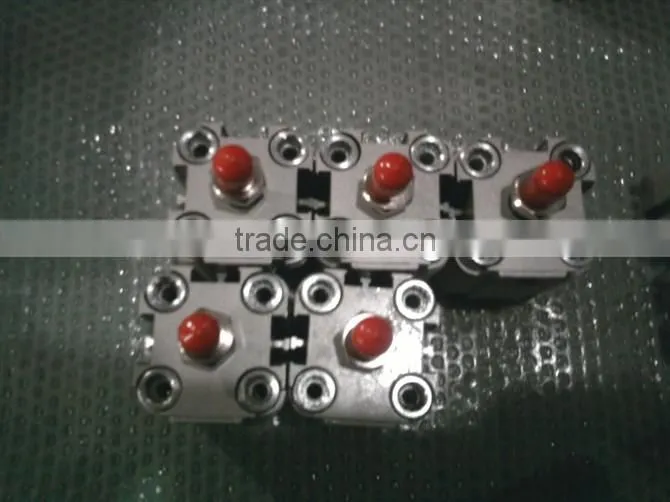

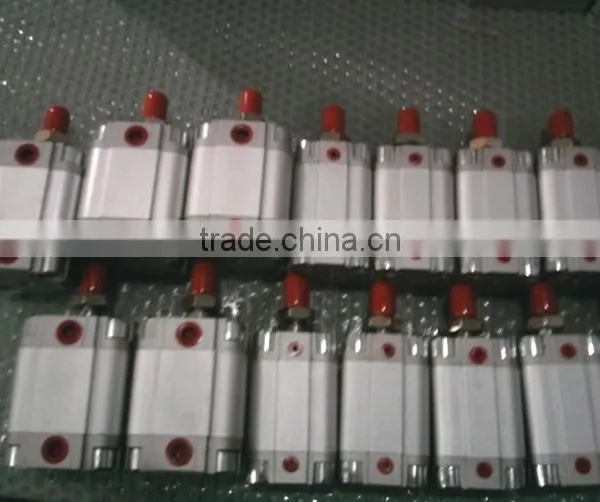

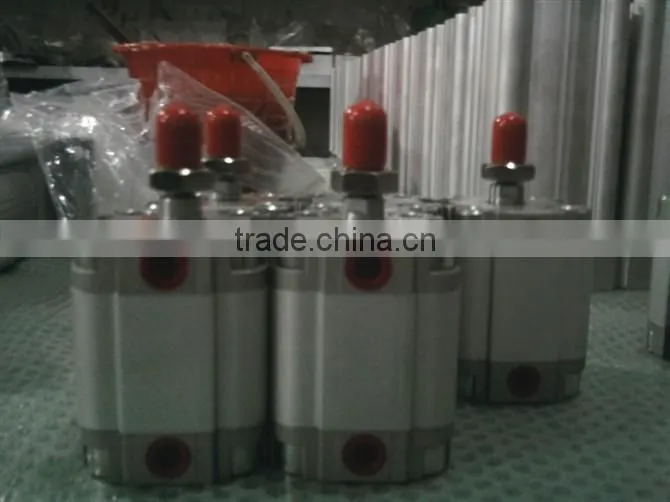

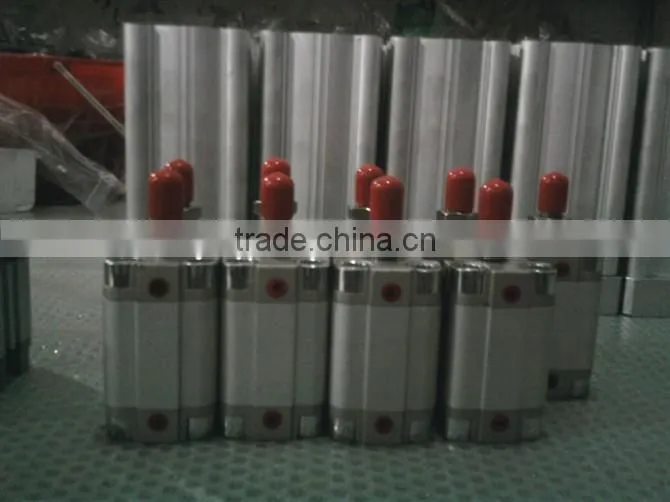

ADVU Thin Compact Air Cylinder-FESTO Type
Features:
1.ADVU Series compact cylinder.
2.Equivalent to FESTO ADVU Series compact cylinder, with the same appearance.
3.Compact design.
4.Bore size(mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100.

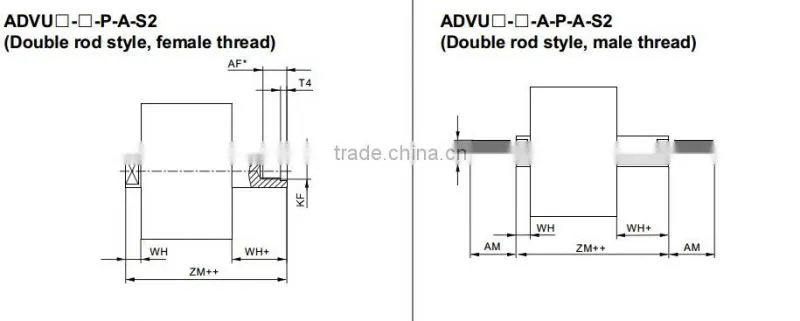

5.Double acting, Single/Double rod
6.Single acting, Single rod, Spring return/extend.
7.Rubber bumper is standard.
8.Built-in magnet is optional.
9.Cylinder kits, barrel, piston is available.

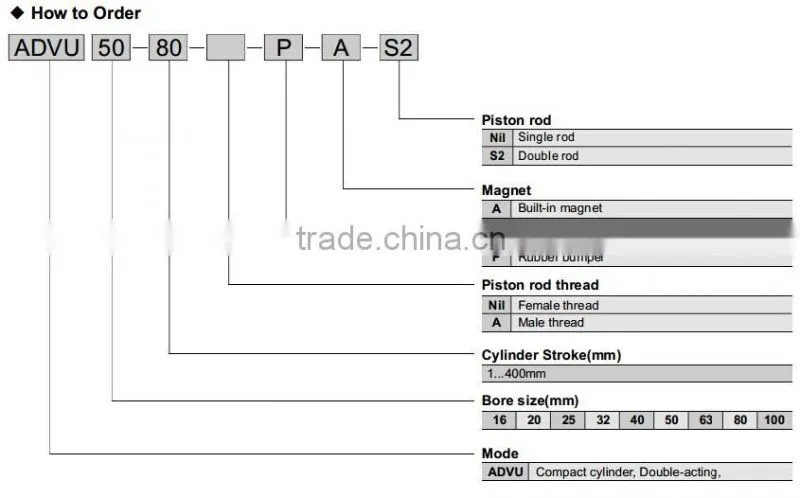

How to Order:

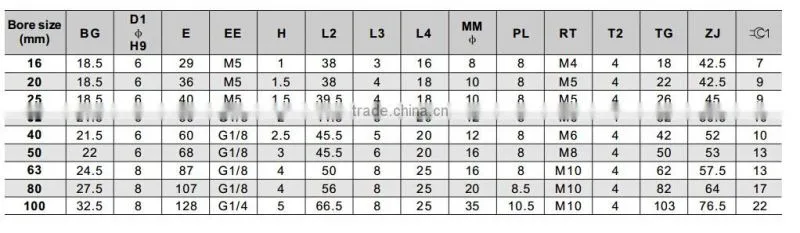

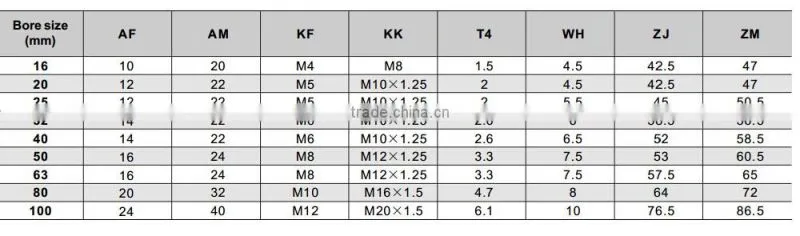

Specification:
| Bore size (mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
| Fluid | Air | ||||||||||
| Action | ADVU | Double acting, Single/Double rod | |||||||||
| AEVU/AEVUZ | Single acting, Single rod, Spring return/extend | ||||||||||
| Minimum operating pressure | Double Acting | 0.12 MPa | 0.1 MPa | 0.08 MPa | 0.06 MPa | ||||||
| Single Acting | 0.15 MPa | 0.13 MPa | 0.1 MPa | 0.08 MPa | 0.06 MPa | ||||||
| Maximum operating pressure | 1.0 MPa | ||||||||||
| Proof pressure | 1.5 MPa | ||||||||||
| Ambient and fluid temperature | -20 to 80°C (No freezing) | ||||||||||
| Cushion | Rubber bumper | ||||||||||
| Lubrication | Non-lube | ||||||||||
| Piston rod dia. | 6 mm | 8 mm | 10 mm | 12 mm | 16 mm | 20 mm | 25 mm | ||||
| Rod end thread | Female thread | M3x0.5 | M4x0.7 | M5x0.8 | M6x1.0 | M8x1.25 | M10x1.25 | M12x1.25 | |||
| Male thread | M6x1.0 | M8x1.25 | M10x1.25 | M12x1.25 | M16X1.5 | M20x1.5 | |||||
| Port size | M5x0.8 | 1/8 | 1/4 | ||||||||

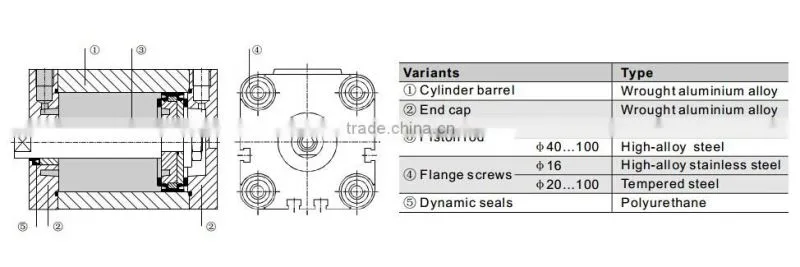

Main Material:
1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.
Package
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage
Payment
1: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
Why choose us
1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok
6: Provide free products information.
7. Reliable quality assured and active after-sell service
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
