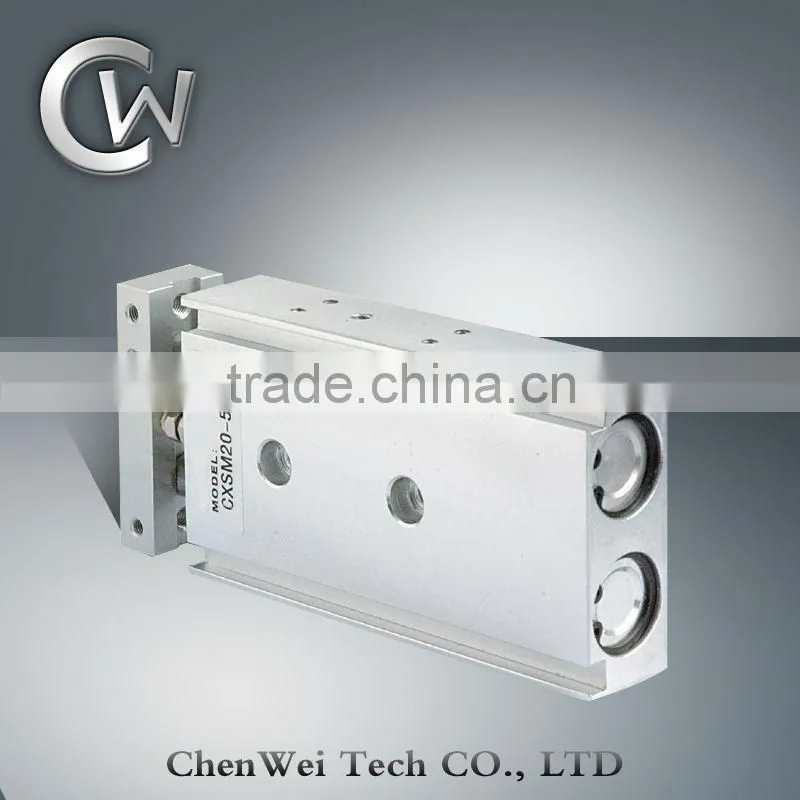

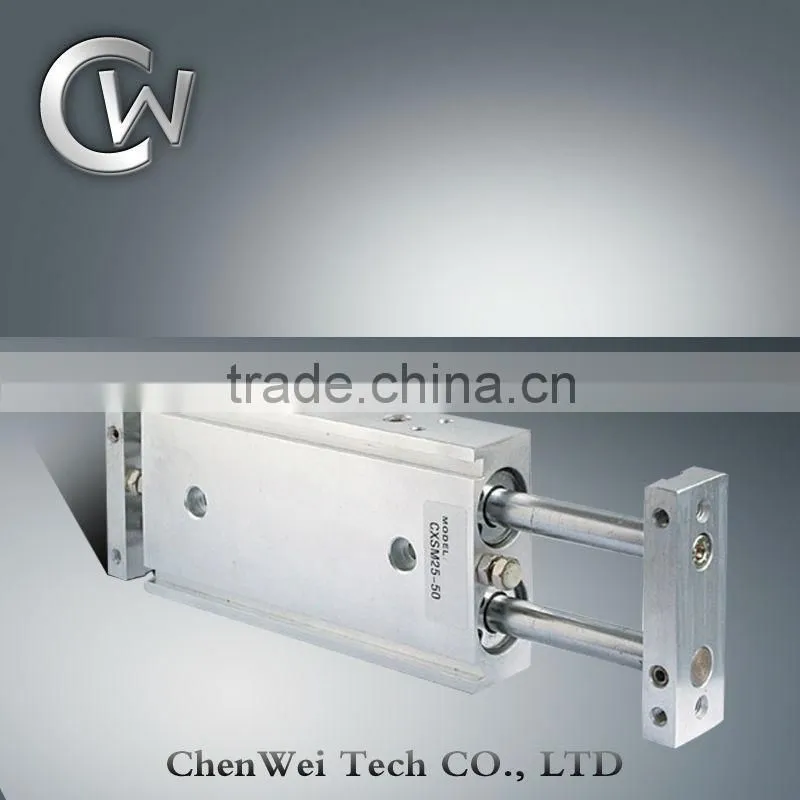

SMC Type CXSM Series Double Shaft Pneumatic Cylinder

Specifications

1.SMC Type CXSM Series Double Shaft Pneumatic Cylinder
2.Equivalent to SMC
3.Bore size: 10,15, 20, 25, 32mm
4.1 year warranty

SMC Type CXSM Series Double Shaft Pneumatic Cylinder

Features:

1.CXS Series SMC pneumatic cylinders.

2.Equivalent to SMC CXS Series SMC pneumatic cylinders, with the same appearance.

3.Double rod design, with twin piston.

4.Bore size(mm): 6, 10, 15, 20, 25, 32.

5.Double acting, Single rod

6.Rubber bumper.

7.Built-in magnet is standard.



How to Order:



Specification:

Bore size (mm)	6	10	15	20	25	32
Fluid	Air
Action	Twin acting, Single rod, Twin piston
Minimum operating pressure	0.15 MPa	0.1 MPa		0.05 Mpa
Maximum operating pressure	0.7 MPa
Proof pressure	1.05 MPa
Ambient and fluid temperature	-20 to 80°C (No freezing)
Cushion	Rubber bumper
Lubrication	Non-lube
Port size	M5x0.8				G1/8



Standard Stroke:



Main Mterial:

No.	Description	Material	Note
1	Pneumatic Cylinder barrel	Aluminium alloy	Hard anodized
2	Piston rod	High-alloy steel	Hard chrome plated
3	Rod cover	Aluminum alloy	Clear anodized
4	End cover	Aluminum alloy	Clear anodized
5	Piston	Aluminum alloy	Chromated
6	Plate	Aluminum alloy	Clear anodized
7	Seal	NBR	-





Shippment
