SMC Type CJ2 Series Stainless Steel Mini Pneumatic Air Cylinder

Specifications

1.SMC Type CJ2 Series Stainless Steel Mini Pneumatic Air Cylinder
2.According to ISO6432 standard.
3.with magnet

SMC Type CJ2 Series Stainless Steel Mini Pneumatic Air Cylinder

Features:

1.CJ2 Series mini cylinder.

2.Equivalent to SMC CJ2 Series mini cylinder, with the same appearance.

3.Bore size(mm): 6, 10, 16.

4.Double acting, Single/Double rod

5.Rubber bumper, or with adjustable air cushion at both ends(Option).

6.Built-in magnet is optional.

7.Cylinder kits, barrel, piston is available.

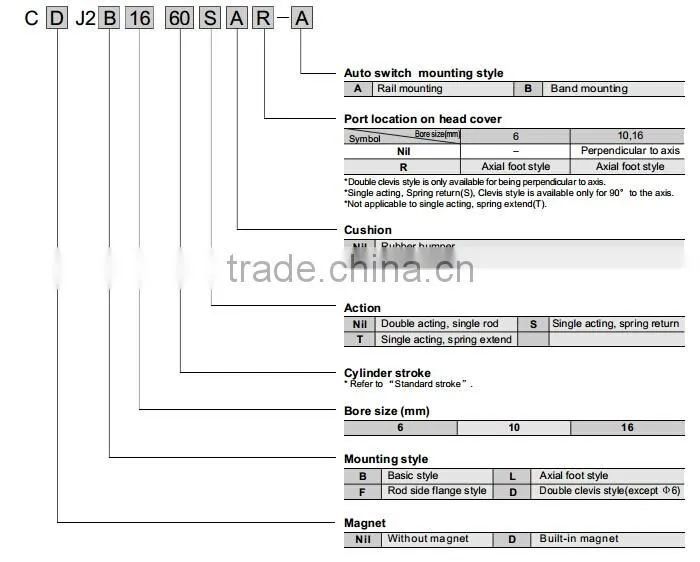

How To Order:



Specification:

Bore size (mm)		6	10	16
Fluid		Air
Action	CJ2-D	Double acting, Single/Double rod
	CJ2-S/T	Single acting, Single rod, Spring return/extend
Minimum operating pressure	Double acting	0.12 MPa	0.06 MPa (air cushion 0.1 MPa)
	Spring return	0.2 MPa	0.15 MPa
	Spring extend	0.25 MPa
Maximum operating pressure		0.7 MPa
Proof pressure		1.0 MPa
Ambient and fluid temperature		-20 to 80°C (No freezing)
Cushion	Double acting	Rubber bumper
		-	Adjustable air cushion at both ends
	Single acting	Rubber bumper
Lubrication		Non-lube
Piston rod dia.		3 mm	4 mm	5 mm
Rod end thread		M3x0.5	M4x0.7	M5x0.8
Port size		M5x0.8

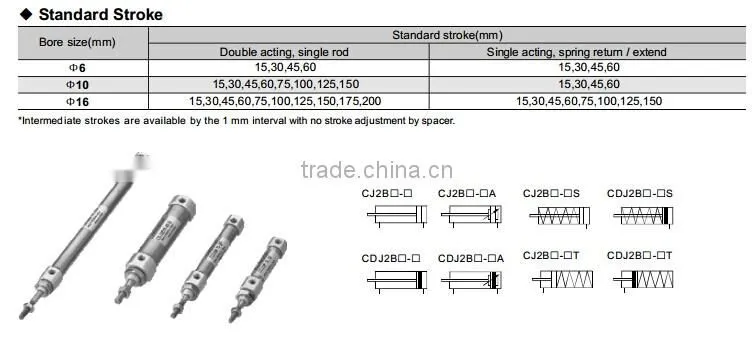

Standard Stroke:
