Help CenterHigh Quality Ball Mill Hot Sale in South America
Related Products
-
Rotary Dryer Used for Iron OreUS$ 6,000 - 80,000MOQ: 1 Set -
Spiral ClassifierUS$ 2,000 - 50,000MOQ: 1 Set
-
Spiral Classifier, Spiral SeparatorUS$ 2,000 - 50,000MOQ: 1 Set
-
Spiral Separator, Iron Ore Spiral SeparatorNegotiableMOQ: 1 Set
-
Iron Ore Spiral Separator, Spiral ClassifierNegotiableMOQ: 1 Set
Specifications
High Quality Ball Mill hot sale in South America:1.simple structure and convenient maintenance;
2.large capacity;

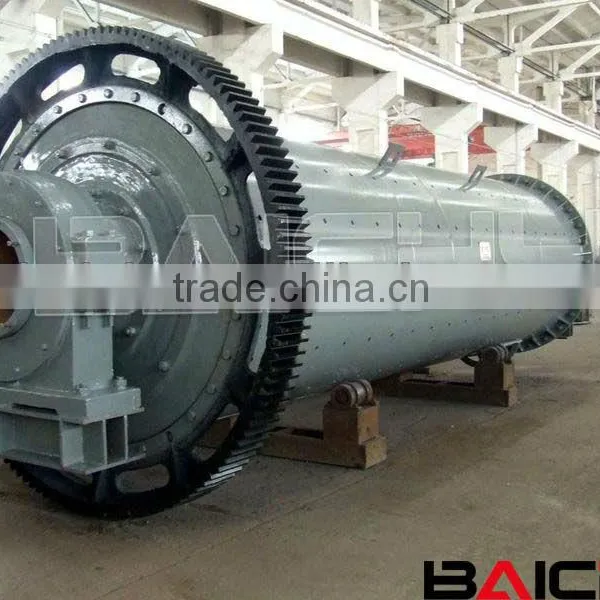

Ball Mill
Brief introduction:
Ball Mill is mainly used to grind materials in mineral, cement, refractory, chemical industry, etc. Ball Mill has dry and wet ways. When wet Ball Mill works, certain water and other liquid will be added into materials to increase flowability of materials, so the capacity is increased. When dry Ball Mill works, capacity is affected because material flowability is reduced, so absorbing wind device is needed on the outlet of Ball Mill, and then negative pressure is formed in the Ball Mill to increase flowability of material, so the capacity is increased.
Features:
1. Large application range, simple structure and convenient maintenance.
2. Large capacity and continuous work are very obvious.
3. Barrel lining and grinding media can apply various abrasive materials.
4. Installation and adjustment are very convenient and easy to be operated.
Technical Parameters:
Model |
Speed (r/min) |
Max. weight of balls (t) |
Input size (mm) |
Output size (mm) |
Power (Kw) |
Capacity (t/h) |
Weight (t) |
Φ900×1800 |
37 |
1.8 |
≤15 |
0.075-0.4 |
15 |
0.5-2 |
3.4 |
Φ900×2100 |
37 |
2.3 |
≤15 |
0.075-0.4 |
18.5 |
0.4-2 |
3.9 |
Φ900×3000 |
35 |
3.85 |
≤25 |
0.075-0.4 |
30 |
1.1-2.5 |
7.78 |
Φ1200×2400 |
35 |
4.6 |
≤25 |
0.075-0.4 |
30 |
1.3-3.2 |
8.65 |
Φ1200×2800 |
35 |
5.4 |
≤25 |
0.075-0.4 |
37 |
1.5-3.7 |
10.02 |
Φ1200×4500 |
35 |
8.6 |
≤25 |
0.075-0.4 |
45 |
2.7-6.79 |
14 |
Φ1500×3000 |
29 |
9 |
≤25 |
0.047-0.4 |
75 |
3.3-8.2 |
14.12 |
Φ1500×3500 |
29 |
10.5 |
≤25 |
0.047-0.4 |
75 |
3.3-8.5 |
15.64 |
Φ1500×4500 |
29 |
13.5 |
≤25 |
0.047-0.4 |
90 |
4.5-12 |
20 |
Φ1500×5700 |
29 |
17 |
≤25 |
0.047-0.4 |
110 |
2.6-14 |
21.5 |
Φ1830×3000 |
24 |
13.5 |
≤25 |
0.047-0.4 |
135 |
4-15 |
28 |
Φ1830×3600 |
24 |
14 |
≤25 |
0.047-0.4 |
135 |
4-15 |
29 |
Φ1830×4500 |
24 |
20 |
≤25 |
0.047-0.4 |
155 |
4-19 |
32 |
Φ1830×7000 |
24 |
31.5 |
≤25 |
0.047-0.4 |
210 |
6-22 |
36.5 |
Φ2100×3000 |
22 |
18 |
≤25 |
0.047-0.4 |
210 |
6.4-28 |
40.79 |
Φ2100x3600 |
22 |
20 |
≤25 |
0.047-0.4 |
210 |
7-28 |
42 |
Φ2100×4000 |
22 |
21.5 |
≤25 |
0.047-0.4 |
210 |
7.6-28 |
43.45 |
Φ2200×3600 |
21.7 |
25 |
≤25 |
0.047-0.4 |
245 |
5.2-32 |
44 |
Φ2200×7000 |
21.7 |
46 |
≤25 |
0.047-0.4 |
380 |
15-38 |
63 |
Any change of technical parameters, there is no further notice.
