Specifications
Spiral Classifier:1.Easy into the loop with ball mill.
2.Simple structure, reliable and easy operation.
3.High efficiency.

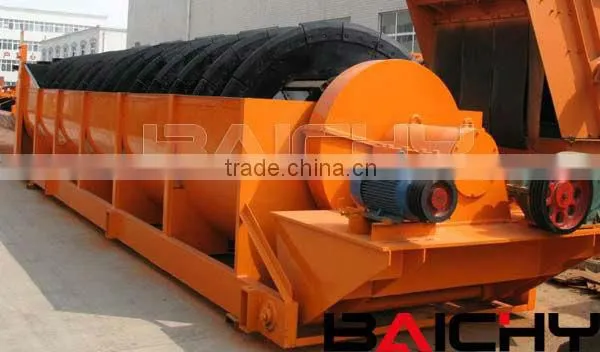

Spiral Classifier
Brief introduction:
Spiral Classifier is widely used to control material size from Ball Mill in the beneficiation process, separate mineral
sand and fine mud in the gravity concentration, and clean mud and water in washing mineral process. This machine
has features of simple structure, reliable and convenient operation, etc.
Technical parameters:
Model |
Spiral Diameter(mm) |
Speed of Spiral(r/min) |
Capacity |
Slope (°) |
Power (Kw) |
Weight (t) |
|
Sand Return (t/h) |
Overflow (t/h) |
||||||
FLG500 |
500 |
8-15.5 |
6-11 |
32 |
12-18 |
3 |
1.9 |
FLG750 |
750 |
4.5-10 |
11-24 |
65 |
12-18 |
3 |
2.7 |
FLG1000 |
1000 |
1.6-7.4 |
25-45 |
110 |
12-18 |
5.5 |
4.1 |
FLG1200 |
1200 |
5-7 |
50-80 |
155 |
12-18 |
5.5 |
7.5 |
FLG1500 |
1500 |
2.5-6 |
70-115 |
235 |
12-18 |
7.5 |
10.5 |
FLG1800 |
1800 |
2.5-6 |
100-190 |
310 |
12-18 |
11 |
17.1 |
FLG2000 |
2000 |
2.5-6 |
160-230 |
400 |
12-18 |
15 |
19.3 |
Any change of technical parameters, there is no further notice.
