Specifications
Rotary Dryer used for Iron Ore:1.dry various materials;
2.simple to be operated.
Rotary Dryer used for Iron Ore
Name |
Rotary Dryer |
Type |
Industrial Drying Machine |
Application |
Suitable for drying metallic and nonmetallic minerals, clay in cement industry and coal in coal mine, etc. |
Raw Material |
Slag, Clay, Fly Ash, Sand, Quartz Sand, Slime, Lignite, Chicken Manure, Saw Dust, Desulfurization Gypsum, etc. |

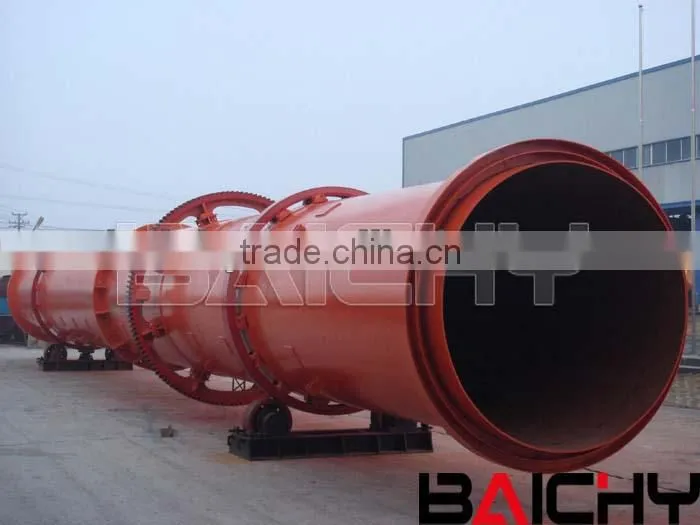

Surface of Rotary Dryer:

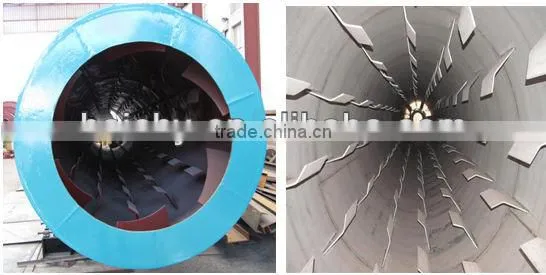

Inner of Rotary Dryer:
Combustion Chamber & Burner:
Brief Introduction of Rotary Dryer:
Rotary dryer is suitable to dry metallic and nonmetallic mineral, clay in cement industry and coal in coal mine,
etc. Rotary dryer can be widely used to dry various materials, and it is simple to be operated.
Working Principle of Rotary Dryer:
Materials are sent to hopper of rotary dryer by belt conveyor or bucket elevator. The barrel is installed with
slope to horizontal line. Materials enter the barrel from the higher side, and hot air enters the barrel from the
lower side, materials and hot air mix together. Materials go to the lower side by gravity when the barrel rotates. Lifters on the inner side of barrel lift materials up and down to make materials and hot air mix completely. So
drying efficiency is improved.
Technical Parameters of Rotary Dryer:
Model |
Shell Diameter (mm) |
Shell Length (mm) |
Slope (°) |
Rotary Speed (r/min) |
Weight (t) |
Power (Kw) |
Volume (m³) |
Φ0.6×8 |
600 |
8000 |
3-5 |
8 |
5.1 |
6-4 |
2.26 |
Φ0.8×10 |
800 |
10000 |
3-5 |
7.2 |
6.9 |
6-4 |
5.02 |
Φ1.0×10 |
1000 |
10000 |
3-5 |
6.73 |
7.5 |
6-5.5 |
7.85 |
Φ1.2×12 |
1200 |
12000 |
3-5 |
5.8 |
13.1 |
6-11 |
13.31 |
Φ1.5×12 |
1500 |
12000 |
3-5 |
4.8 |
22.3 |
6-15 |
21.2 |
Φ2.2×14 |
2200 |
14000 |
3-5 |
3.2 |
52.8 |
30 |
53.22 |
Φ2.4×18 |
2400 |
18000 |
3-5 |
3 |
73.3 |
37 |
81.43 |
Φ2.8×24 |
2800 |
24000 |
3-5 |
2.59 |
97 |
75 |
147.8 |
