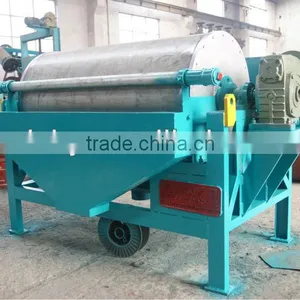

Help CenterMagnetic Drum Separator/ Wet Magnetic Separator
Related Products
Specifications
Magnetic Separator:1.High magnetic intensity.
2.Low energy consumption.
3.Good beneficiating efficiency.
Magnetic Separator
Brief introduction:
Magnetic Separator is used to separate magnetite, hematite, limonite, pyrrhotite, ilmenite smaller
than 3 mm in wet way. It is also used to separate iron in coal, nonmetallic ore, construction
industry,etc. We can provide magnetic separators of forward flow, semi counter flow and counter
flow types according to customers’ request.
Working principle:
Slurry enters chute through ore tank firstly, and then separating zone by waterpower. Mineral with
strong magnetism is absorbed on the barrel surface, sent to concentrate discharging zone and
discharged into concentrate box by water effect. Gangue and ore with weak magnetism are
discharged into a pipe in opposite direction of barrel.
Features: 1.High magnetic intensity. 2.Low energy consumption. 3.Good beneficiating efficiency.
Technical parameters:
Model |
Shell Diameter (mm) |
Shell length (mm) |
Feed size (mm) |
Capacity (t/h) |
Power (Kw) |
Weight (t) |
CTB612 |
Φ600 |
1200 |
0-2 |
10-20 |
1.1 |
1.5 |
CTB618 |
Φ600 |
1800 |
0-2 |
15-30 |
2.2 |
1.8 |
CTB718 |
Φ750 |
1800 |
0-2 |
25-45 |
3.0 |
2.2 |
CTB918 |
Φ900 |
1800 |
0-3 |
35-70 |
4.0 |
2.8 |
CTB1018 |
Φ1050 |
1800 |
0-3 |
40-75 |
5.5 |
4.3 |
CTB1024 |
Φ1050 |
2400 |
0-3 |
52-100 |
5.5 |
5.2 |
CTB1218 |
Φ1200 |
1800 |
0-3 |
47-90 |
5.5 |
5.0 |
CTB1224 |
Φ1200 |
2400 |
0-3 |
80-120 |
7.5 |
6.4 |
Any change of technical parameters, there is no further notice.
