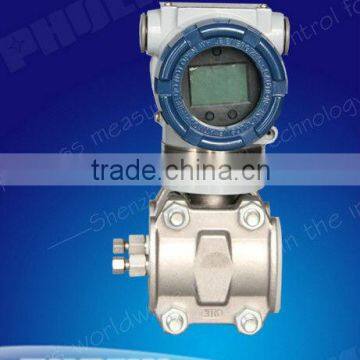

flange mounted differential pressure transmitter

Specifications

It's equipped with microprocessor, can measure pressure, flow and level, with HART protocol. High accuracy. Long-term stability.

Brief introduction:

The RP62 smart differential pressure transmitter is a micro process based high performance transmitter, which has flexible pressure calibration and output, automatic compensation of ambient temperature and process variable, configuration of various parameters, communication with HART protocol. The application is very various, as measuring liquid, gas or steam flow as well as pressure and liquid level by application method. All data of sensor is to be input, modified and stored in EEPROM.



Specifications:

Superior Performance

High Reference Accuracy:±0.075% of Calibrated Span(The option: ±0.04% of Calibrated Span)

Long-term Stability (0.125% URL for 3 years)

High Range ability (100:1) (for the range 4-0)

Flexibility

Data Configuration with HART Configurator.

Zero Point Adjustment

Reliability

Continuous Self-Diagnostic Function

Automatic Ambient Temperature Compensation

Fail-mode Process Function

EEPROM Write Protection

CE EMC Conformity Standards

(EN50081-2, EN50082-2)

Transfer Function

Self-Compensation

Self-Diagnosis and Others

CPU&Analog Module Fault Detection

Communication Error

Fail-mode Handling

LCD Indication

Temperature Measurement of Sensor Module

Explosion-proof Approval &Intrinsic Safety Approval: ATEX,FM,FM Canada, GOST, KOSHA, KTL,etc.

Technical Parameters:

1.RP series Pressure Sensor Range&URL



2.Electrical Specifications:



3 Performance Specifications:



4 Physical Specifications:



5 Model selection of measuring range (pressure):

Num	Measuring range	G	A	D	H
3	0-0.2-7.0kPa(0-20-715mmH2O )	♥	♦	♥	♦
4	0-0.4-37.4kPa(0-38-3810mmH2O )	♥	♥	♥	♥
5	0-1.8-186.8 kPa(0-190-19050 mmH2O)	♥	♥	♥	♥
6	0-6.9-690 kPa(0-0.07-7kgf/cm2 )	♥	♥	♥	♥
7	0-20.6-2068kPa(0-0.21-21 kgf/cm2 )	♥	♥	♥	♥
8	0-68.9-6890kPa(0-0.7-70 kgf/cm2 )	♥	♥	♥	♦
9	0-206.8-20680 kPa(0-2.1--210 kgf/cm2 )	♥	♦	♦	♦
0	0-413.7-41370kPa(0-4.22-422kgf/cm2)	♥	♦	♦	♦

Note:  ♥ means it’s optional,  ♦ means not.

Dimensions: (mm)

Standard Model (We can design the suitable model according to your special demand.)



Functional Block Diagram:
