Help CenterSingle-side Flange Pressure Transmitter
Related Products
-
Smart Single Flange 4-20ma Pressure Transmitter SensorUS$ 99 - 400MOQ: 1 Set -
RP64 Differential Pressure Co2 TransmitterUS$ 300 - 700MOQ: 1 Set
-
RP63 High Accuracy China Pressure Transmitter RemoteUS$ 300 - 700MOQ: 1 Set
-
RP62 High Accuracy Smart Pressure Remote TransmitterUS$ 290 - 660MOQ: 1 Set
-
RP61 Smart Capacitive Pressure TransmitterUS$ 150 - 500MOQ: 1 Set
Specifications

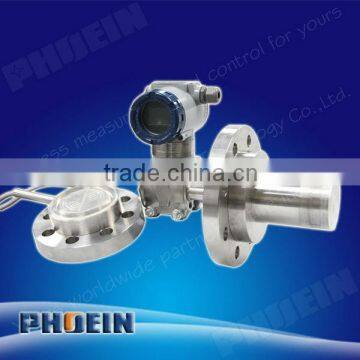

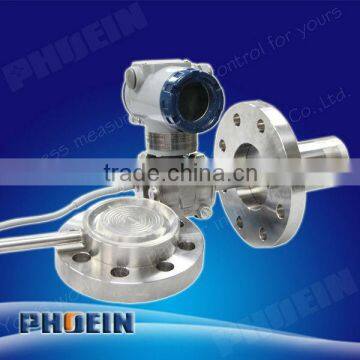

RP63 smart single flange pressure transmitter adopts the microprocessor technology, which can measure the differential pressure,Specifications:
1 Suitable for viscous, strong corrosive or easy to be crystallized media. Both level and pressure can be measured.
2 Withstand high temperatures: the liquid contacting parts can stand as high as 383°C or 720°F.
3 It can measure the liquid surface.
Operating condition:
Parameters |
Rated temperature |
Operating limits |
Transportation and storage |
Environment temperature(°F) |
-104—185 |
-104—195.8 |
-131--257 |
Body temperature(°F) |
-104—230 |
-104—257 |
-131--257 |
Humidity(%RH) |
10—85 |
0--100 |
0--100 |
Over-pressure capacity |
14MPa, 21MPa for specific |
||
Vacuum degree(kPa) |
0 |
3.5 |
|
Electrical parameters
Power voltage |
11.9-45 VDC |
Signal output |
4-20mA DC/HART |
HART load resistance |
250-1500Ω |
Insulation voltage |
500 Vrms(707VDC) |
Damping time |
0.25 S |
Starting time |
5 S |
Other technical parameters:
Material of process connection |
Process isolated diaphragm: 316L SS, HastelloyC-276,Monel alloy, Tantalum. Process joint:Teflon,Viton Exhaust/drain valve: 316L SS, HastelloyC-276 Bolt: carbon steel, A286 SS (NACE) Note: The anti-corrosion materials for liquid contacting parts are optional. Please contact with us. |
Liquid filled in |
Silicone oil DC200, Silicone oil DC704 or CTFE |
Shell |
Epoxy polyester paint, copper-aluminum alloy. Stainless steel material is optional, meet the standard of NEMA 4X and NEMA7. |
Process connection |
1/4 NPT, 1/2NPT adapter(optional) |
Wiring |
16AWG (1.5mm diameter) |
Weight |
4.2kg,(about 5kg with attachments) |
Dimension of package |
234×185×155mm |
Name plate |
304 stainless steel |
Accuracy |
±0.075% of Span(0.2URL≤Span≤URL) |
Stability |
±0.01% full scale/ per year |
Temperature factor |
±(0.025%URL+0.125%Span)/28 |
Vibration factor |
In the case of 200Hz of any axle, the error is ±0.05%/g of the max scale |
CE Certification |
89/336/EEC, meet the standard of EMC |
5 Model selection of measuring range (pressure):
Num |
Measuring range |
G |
A |
D |
H |
3 |
0-0.2-7.0kPa(0-20-715mmH2O)
|
♥
|
♥
|
♥
|
♥
|
4 |
0-0.4-37.4kPa(0-38-3810 mmH2O) |
♥ |
♥ |
♥
|
♥ |
5 |
0-1.8-186.8 kPa(0-190-19050 mmH2O) |
♥ |
♥ |
♥ |
♥ |
6 |
0-6.9-690 kPa(0-0.07-7kgf/ cm2) |
♥ |
♥ |
♥ |
♥ |
7 |
0-20.6-2068kPa(0-0.21-21 kgf/cm2 ) |
♥ |
♥ |
♥ |
♥ |
8 |
0-68.9-6890kPa(0-0.7-70 kgf/ cm2 ) |
♥
|
♥
|
♥
|
♦ |
9 |
0-206.8-20680 kPa(0-2.1--210 kgf/ cm2 ) |
♥
|
♦
|
♦
|
♦
|
0 |
0-413.7-41370kPa(0-4.22-422kgf/ cm2 ) |
♥
|
♦
|
♦
|
♦
|
Note:
♥
means it’s optional,
♦
means not.
Dimensions: (mm)
Standard Model (We can design the suitable model according to your special demand)
Functional Block Diagram:
