aluminum spacer bending cutting machine

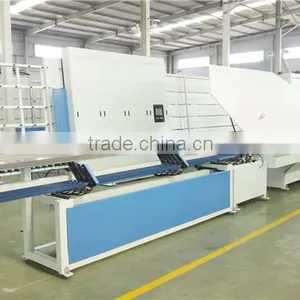

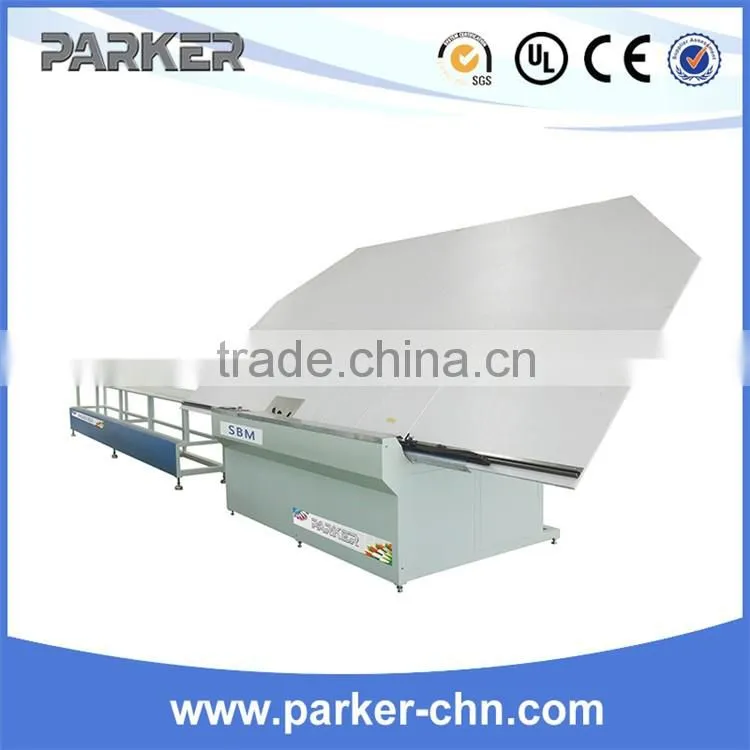

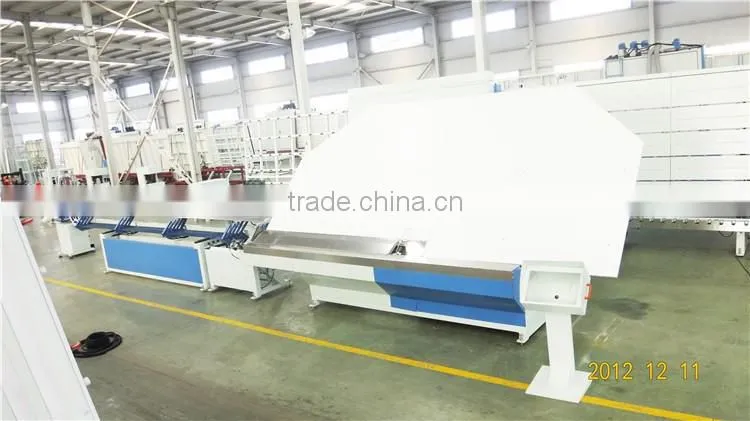

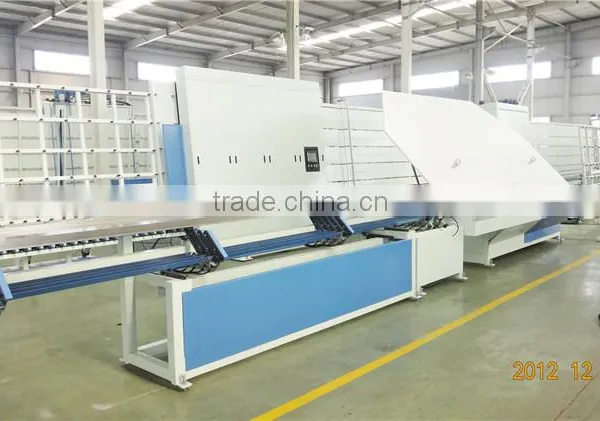

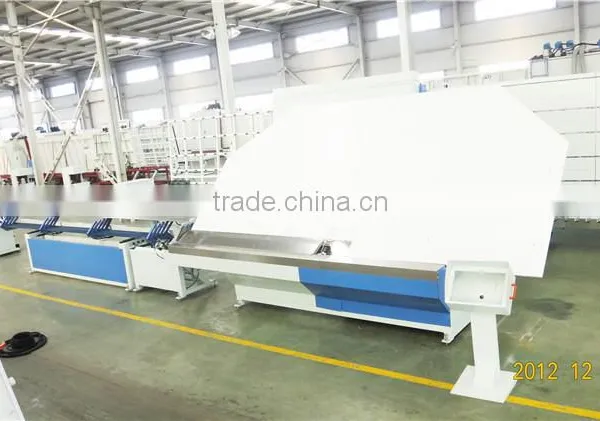

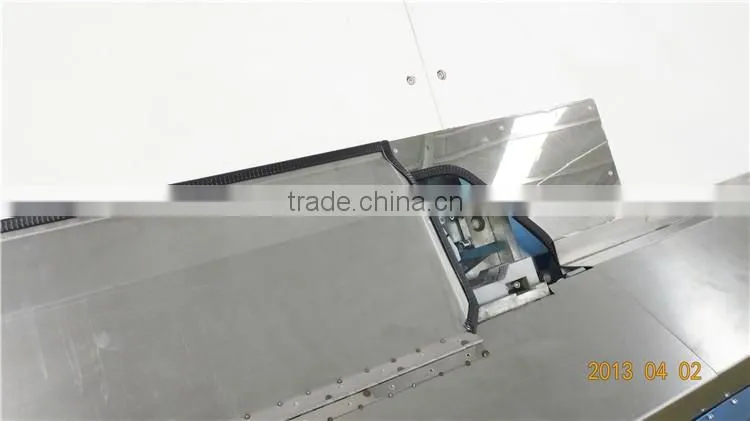

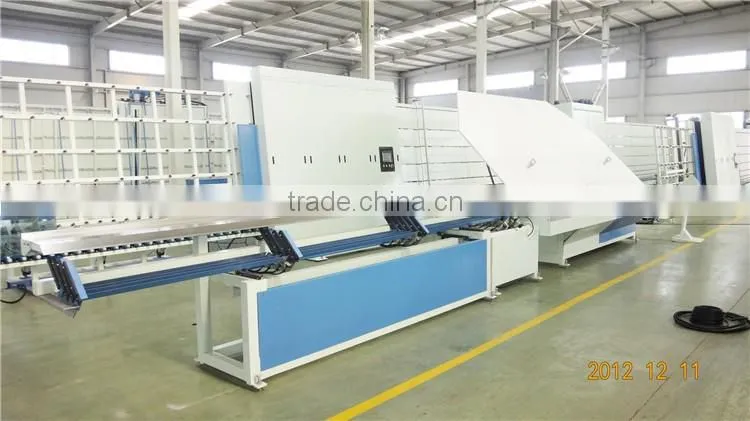

SBM aluminum spacer bending machine is used to bend aluminum spacer bars of insulating glass. The aluminum spacer bar bender can adjust and control aluminum frame size automatically through CNC system. It can also achieve rectangle-shape bending of three aluminum spacer bars in single working operation. Featuring high precision, easy operation and high efficiency, this aluminum spacer bending machine is the ideal equipment for mass production of cold-edge insulating glass.
| Voltage | AC 220 V 50 Hz |
| Power | 1.0 kW |
| Air Pressure | 0.5 to 0.8 Mpa |
| Aluminum Bar Size | 6 mm to 24 mm |
| Aluminum Spacer Size |
250 mm × 150 mm (Min.) 2000 mm × 2000 mm (Max.) |
| Overall Dimension | 3200 mm × 1300 mm × 1950 mm |
| Weight of Aluminum Spacer Bar Bender | 200 kg |
Features:
1. All the operations except “start” and “stop” are controlled through display screen.
2. Several groups of cutters are optional with the aluminum space bar.
3. Installed bi-scale construction, the aluminum spacer bending machine can bend square and rectangle bars efficiently.
4. This aluminum spacer bar bender adopts PLC controller, manual load spacer and automatic bending after calculating the size.
5. The imported pneumatic components from Taiwan are more stable.
6. Profiles can be cut after bending.
1.Sample service:
Engineer available overseas
2. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
3.After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? Can I visit there?
Our factory is located in Jinan City, Shandong Province, China, near to Jinan and Qingdao. You are warmly welcomed to visit us!
3. Q: How does your factory do regarding quality control?
We have strict control in testing of raw material, production process and final process. Only qualified products can be sent out.And we have passed ISO,CE certificate.
4.Q:What you can do if my machines have problems?
a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
5. Q: If OEM available?
Answer: Yes, as we usually do.
6. Q: What are your company normal payment Terms?
Answer: We accept T/T (30% T/T prepaid before production, 70% T/T prepaid before shipment)
