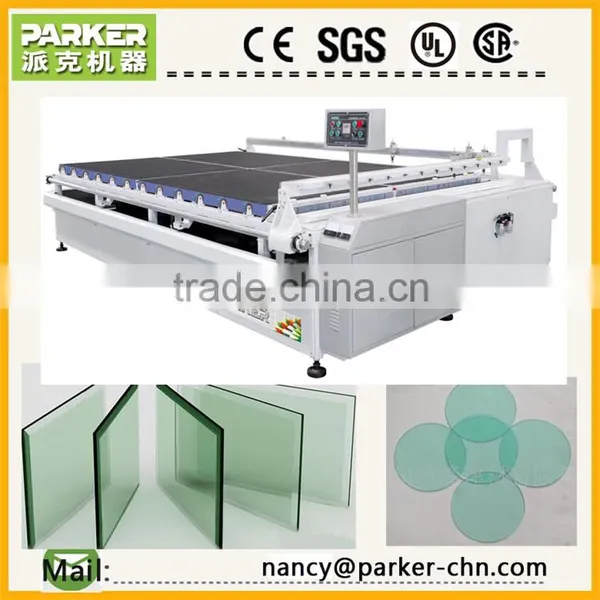

RGC-CNC Automatic rectilinear glass cutting machine
1. Technical parameters:
1),Loading Sheet size:
Min.loading size:1500*1500mm,
Max.loading size:2440*3660mm
2),Loading thickness: 2~19mm.
3),The fastest loading cycle: 30-60s(adjustable)
4),Transfer speed: 0~40m/min(adjustable)
5),Max.suction depth: 750mm
6),Max.loading weight: 900Kg
7),Unilateral upper arm volume: Four arms.
8),The number of single arm suckers:Three.
9),Turning arm:Double
10),Loading position:Multi-position.
11), Power supply/Power
Installed power supply: 380V/50Hz(Special condition can be adjusted according to customer’s demand)
12),Installed power: 9KW about 9kw.
13),Compressed air: 0.5-0.8Mpa
14),Vacuum pressure: -70~90Kpa((according to glass’s depth can be adjusted)
15), X axis normal working speed: 25m/min(Variable frequency can be adjusted)
Y axis normal workding speed: 5m/min (Variable frequency can be adjusted)
16),Table Height: 900±50mm
1.Sample service:
Engineer available overseas
2. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
3.After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? Can I visit there?
Our factory is located in Jinan City, Shandong Province, China, near to Jinan and Qingdao. You are warmly welcomed to visit us!
3. Q: How does your factory do regarding quality control?
We have strict control in testing of raw material, production process and final process. Only qualified products can be sent out.And we have passed ISO,CE certificate.
4.Q:What you can do if my machines have problems?
a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
5. Q: If OEM available?
Answer: Yes, as we usually do.
6. Q: What are your company normal payment Terms?
Answer: We accept T/T (30% T/T prepaid before production, 70% T/T prepaid before shipment)
