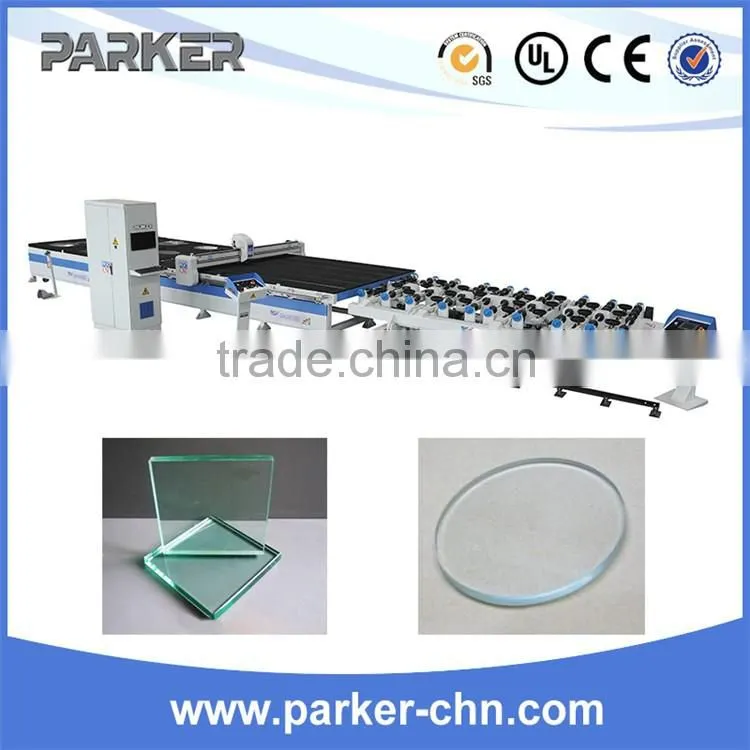

CNC control glass cutting line/low-e glass cutting machinery

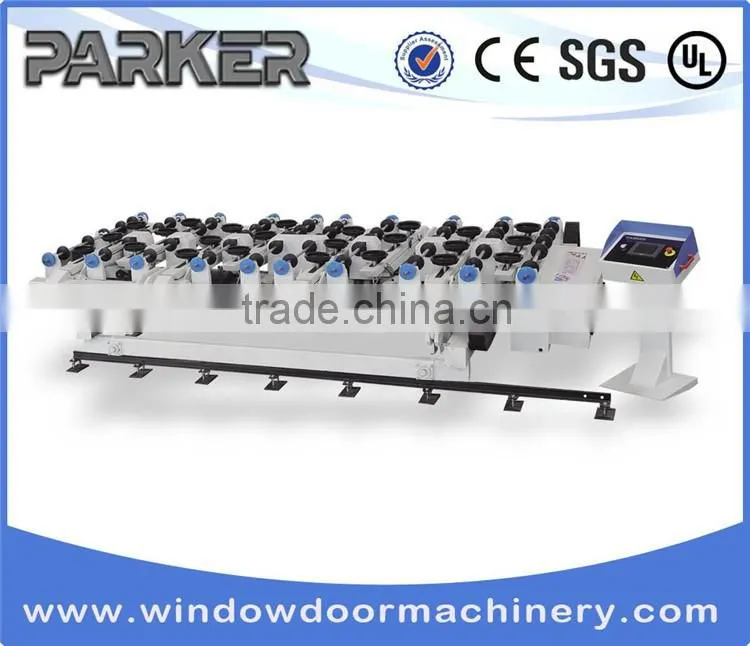

Automatic double muti-position glass loading machine
| Technique Parameter | |
| Loading sheet size | Min. loading size:1500x1500mm |
| Max. Loading size:2440x3660mm | |
| Loading thickness | 2~19mm |
| The fastest loading cycle | 30~60s |
| Transfer speed | 0~40m/min(adjustable) |
| Max. suction depth | 750mm |
| Max. loading weight | 900 kgs |
| Unilateral upper arm volume | Four arms |
| The number of single arm suckers | three |
| Turning arm | double |
| Loading position | Muti-position |
| Installed power supply | 380v 50hz |
| Installed power | about 9 kw |
| Compressed air | 0.5-0.8 Mpa |
| Vacuum pressure | -70-90 kpa |
| X axis normal working speed | 25m/min |
| Y axis normal working speed | 5m/min |
| Table height | 900±50mm |
Automatic Glass Cutting Machine
| Cutting the max. glass size | 3660x2500mm |
| The height of working table | 900±50mm |
| Cutting thickness | 2-25mm |
| Cutting precision | ≤±0.20mm/m |
| Cutting bridge speed | 0-150m/min |
| Cutter head speed | ≥ 160m/min |
| The error for cutting head positioning | ≤±0.15mm/m |
| Cutting operation:Using air pressure and the spring SMC precision digital display module,the cutter head rotate 360 degrees, upper and lower cutter can cut any different glass shapes. | |
| Oil injection mode | Automatic oil inject device |
| Conveying device:Automatic induction of synchronous belt transmission device | |
| Glass positioning | The photoelectric scanning positioning system and posisioning be used together |
| Power supply | 380v 50hz |
| The actural power | 5 kw |
| Air pressure | 0.8 Mpa |
1.Sample service:
Engineer available overseas
2. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
3.After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? Can I visit there?
Our factory is located in Jinan City, Shandong Province, China, near to Jinan and Qingdao. You are warmly welcomed to visit us!
3. Q: How does your factory do regarding quality control?
We have strict control in testing of raw material, production process and final process. Only qualified products can be sent out.And we have passed ISO,CE certificate.
4.Q:What you can do if my machines have problems?
a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
5. Q: If OEM available?
Answer: Yes, as we usually do.
6. Q: What are your company normal payment Terms?
Answer: We accept T/T (30% T/T prepaid before production, 70% T/T prepaid before shipment)
