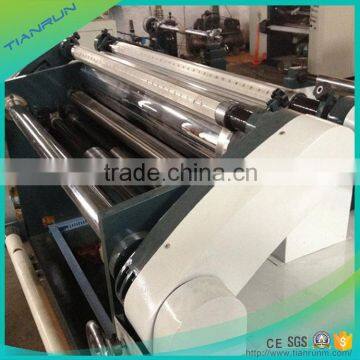

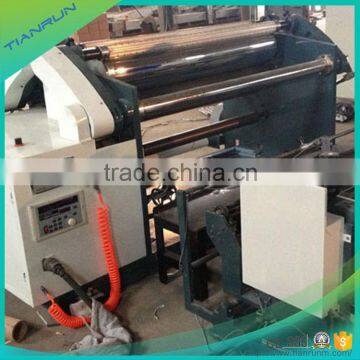

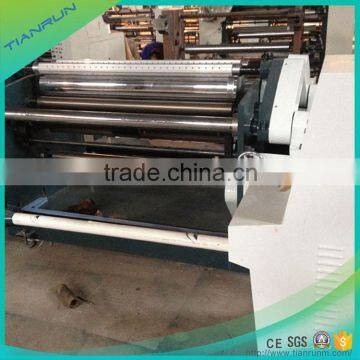

Professional Manufacturer Surface Center Rewinding Slitting Machine
Summary:

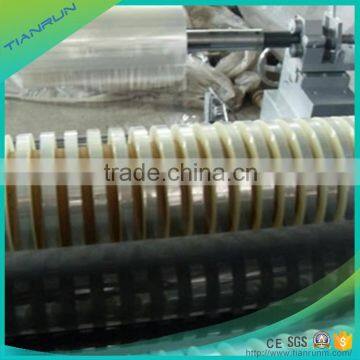

This machine is suitable for slitting and rewinding such various roll materials as PE, BOPP, PET, PP, CPE, PVC, aluminum foil, paper and isolating material, etc.
1.It combines center-winding and surface-contacting winding.
2.Automatic EPC web guider for unwinding, photocell is suitable for tracking the edge and color of transparent material.
3.It’s equipped with magnetic powder brake for unwinding tension control.
4.Use magnetic powder clutch for rewinding tension control, with pneumatic lifting device.
5.3pcs of pneumatic shafts are equipped for unwinding and rewinding.

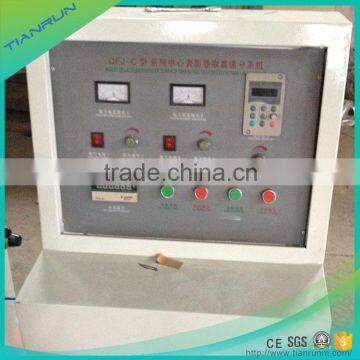

6.Main Motor is controlled by inverter for speed regulation.
7.Automatic meter counting and automatic stop device.
8.Equipped with air trim discharge conveying system.
Main Technical Parameters:
Model |
SFQ-1100 |
Max. Mother Roll Width |
1100mm |
Max. Mother Roll Diameter |
1000mm |
Min. Width of Final Roll |
5mm |
Max. Rewinding Diameter |
420mm |
Internal Diameter of Roll Paper Core |
76mm |
Max. Mechanical Free Speed |
180m/min |
Slitting & Rewinding Speed |
5-160m/min |
Error Precision |
±0.5mm |
Waste Edge Fan Motor |
0.75kw |
Gross Power |
5.5kw |
Machine Weight |
2000kg |
Machine Dimension |
1800×2200×1200mm |
Working Voltage |
380V 3-phase 50Hz |
Tianrun retains the right to modify parameters without previous advice. | |
