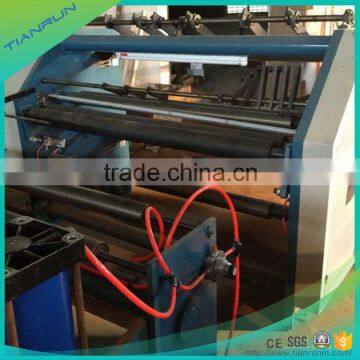

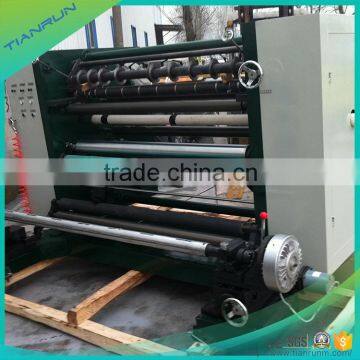

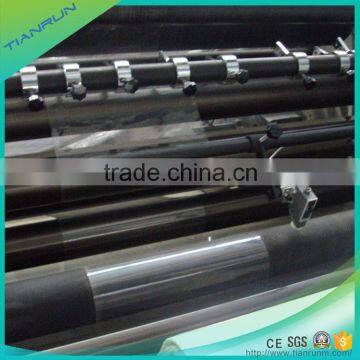

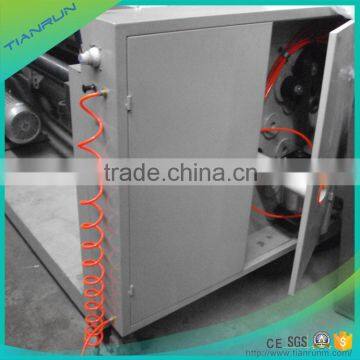

Horizontal Type High-speed Slitting & Rewinding Machine
Main Technical Parameters:
1.Slitting Material: Film, Paper Roll etc.
2.Slitting Width: 30-1000mm
3.Machine Speed: 200m/min
4.Slitting Speed: 180m/min
5.Unwinding Diameter: 800mm Tension 50N.m 3” Air shaft
6.Rewinding Diameter: 2x500mm Tension 50N.m 3” Air shaft
7.Main Motor: 3.5KW frequency conversion motor
8.Cutting System: Adopt round blade/flat blade, slitting accuracy: ±0.1mm, minimum slitting width: 30mm
9.Transmission: Belt
10.Guide Roller: Φ80 Hard Aluminum Alloy
11.Machine Construction: Alloy Iron
12.Web guide scope: 120mm Accuracy: ±0.3mm
Main Configuration:

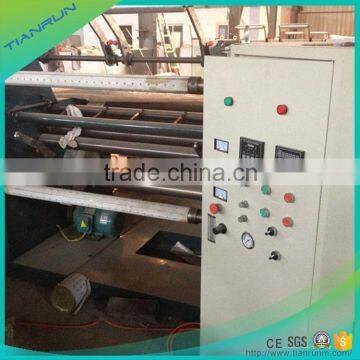

1.Main Control Part: It has the function of meter counting or length counting, automatic stopping, Speed Adjustment.
Unwinding Tension: Adopt Magnetic Powder control tension 50N.M
Rewinding Tension: Adopt Magnetic Powder control tension 50N.M
Main Motor: Adopt Three Phase AC 3.5KW Frequency Conversion Motor
2.Running and Locking: Pneumatic
3.Lower Voltage Apparatus: Adopt CHNT
4.Pneumatic Component: Adopt Domesitc Mingyou or Jingwei
5.Web Guide: Adopt photoelectric eye
6.Slitting Blade: Scaleplate Orientation, it’s easy to install, and accurate.
Main Components:
1.Main Motor: 3.5KW 1pc (Shanghai Lichao)
2.Frequency Conversion 1pc (Huifeng)
3.Fan 1pc (Ruian Qiangguang)
4.Air Shaft: Unwinding 1 pcs, Rewinding 2 pcs (Ruian Qiangguang)
5.Aluminum Guide Roller 9pcs (Shanghai)
6.Magnetic Powder Control: Unwinding 1 pcs, Rewinding 2 pcs
7.Low-Voltage Apparatus: CHNT
8.Web guide 1pc (Shaoxing)
9.Pneumatic Component (Chuangfeng)
10.Slitting Blade: Round Blade 5pcs. Flat Blade: 5pcs
Company Name: Ruian Tianrun Machinery Co., Ltd.
Operational Address: Ruya Industrial Area, Ruya Village, Shangwang Street, Rui'an, Wenzhou, Zhejiang, China (Mainland)
Telephone: 86-577-65136187
Mobile Phone: 86-13867795521
Fax: 86-577-65550515
Zip: 325200
