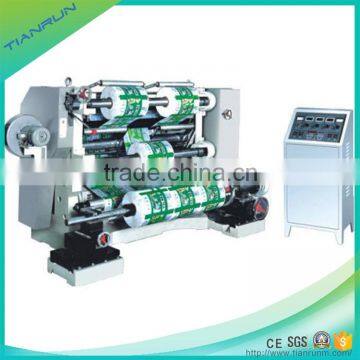

Vertical Type Automatic Slitting & Rewinding Machine
Summary:
This machine is suitable for slitting and rewinding such various roll materials as PE, BOPP, PET, CPP, CPE, PVC, aluminum foil, nonwoven and paper, etc. It can cut edge separately and cut the material according to different requirements during production.
1.Automatic EPC web guider for unwinding, photocell is suitable for tracking the edge and color of transparent material.
2.It’s equipped with magnetic powder brake for unwinding tension control. Use magnetic clutch for rewinding tension control.
3.3pcs of pneumatic shafts are equipped with the machine.
4.Main Motor is controlled by inverter for speed regulation.
5.Separated general control cabinet, more flexible and even easier operation.
6.Equipped with air trim discharge conveying system.
7.Automatic meter counting device.
8.Pressure roller for rewinding to make rewinding roll more uniform.
Main Technical Parameters:
Model |
LFQ-700A |
LFQ-1100A |
LFQ-1300A |
Max. Width of Mother Roll |
700mm |
1100mm |
1300mm |
Max. Diameter of Mother Roll |
Φ600mm |
Φ600mm |
Φ600mm |
Width of Final Roll |
30-600mm |
30-1000mm |
30-1200mm |
Slitting & Rewinding Speed |
5-160m/min |
5-160m/min |
5-160m/min |
Tolerance of EPC |
±0.5mm |
±0.5mm |
±0.5mm |
Gross Power |
2.7kw |
3.5kw |
3.5kw |
Machine Weight |
1200kg |
1500kg |
1800kg |
Machine Dimension |
2.0×1.2×1.4m |
2.4×1.2×1.4m |
2.6×1.2×1.4m |
Working Voltage |
380V 3-phase 50Hz |
||
Tianrun retains the right to modify parameters without previous advice. | |||
