High Speed 4 Color Flexo Printing Machine

High Speed 4 Color Flexo Printing Machine photo-1
High Speed 4 Color Flexo Printing Machine photo-2

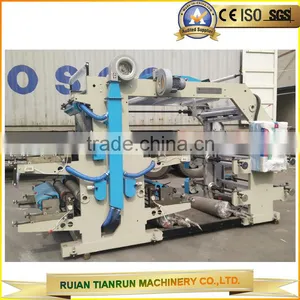

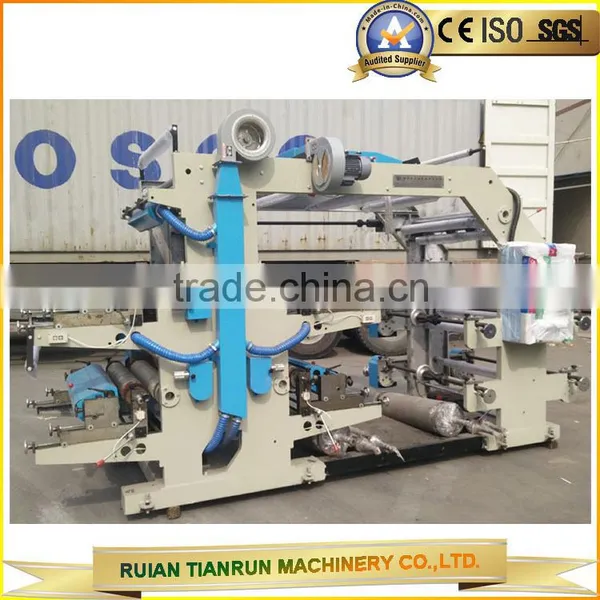

High Speed 4 Color Flexo Printing Machine photo-3

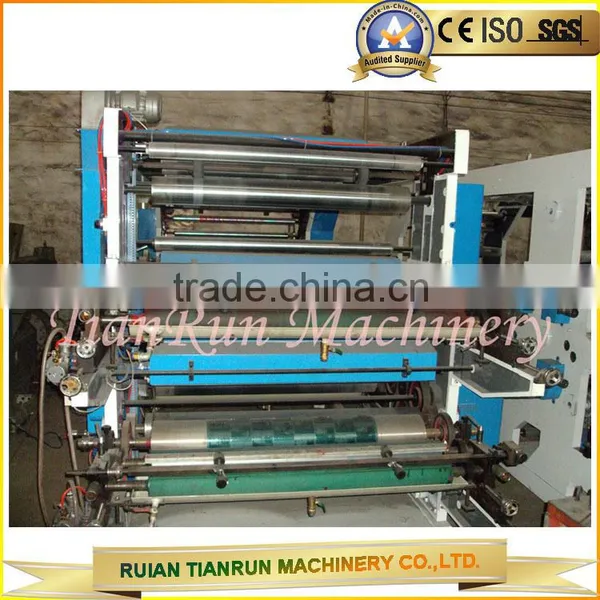

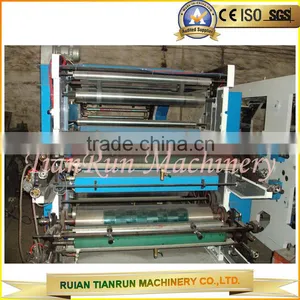

High Speed 4 Color Flexo Printing Machine photo-4

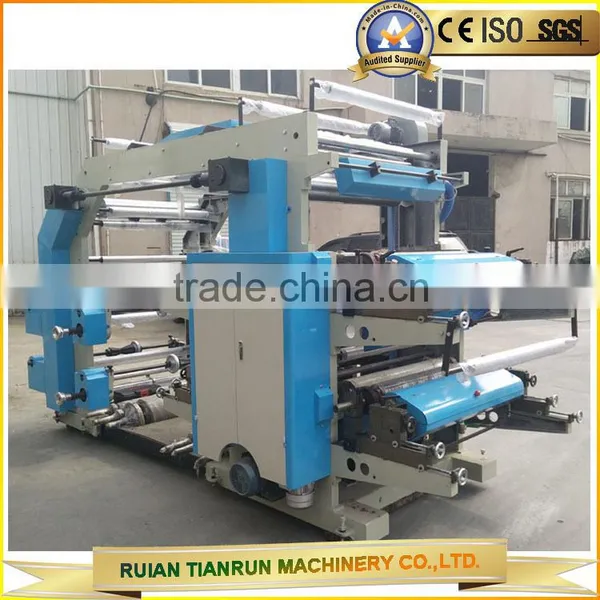

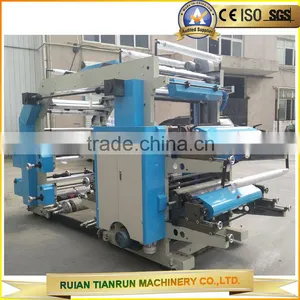

High Speed 4 Color Flexo Printing Machine photo-5

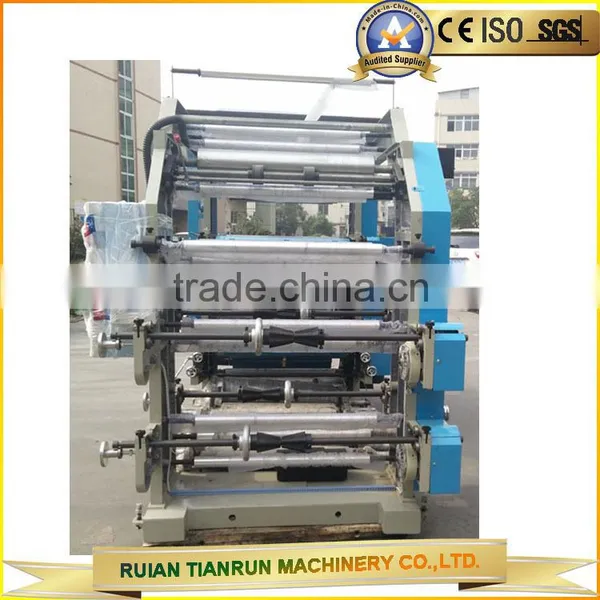

High Speed 4 Color Flexo Printing Machine photo-6
US$ 8,000 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Letterpress
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Plate Type Letterpress
Place of Origin Zhejiang, China
Brand Name TianRun
Model Number YT-4600
Usage Paper Printer
Automatic Grade Automatic
Voltage 220V / 380V
Gross Power 9.8kw
Dimensions(L*W*H) 2200*1500*2200mm
Weight 3000kg
Certification CE ISO SGS
After-sales Service Provided Engineers available to service machinery overseas
Machine Details

Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

Characteristics

1.Easy operation, flexible starting, accurate color register.
2.The meter counter can set printing quantity according to the requirement. The machine will stop automatically when reach the set quantity or when the material is cut off.
3.Lift plate cylinder up and down manually. It will automatically stir the printing ink after lifting.
4.The printing ink is spread by the Anilox cylinder with even ink color.
5.Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360° continuous and adjustable longitudinal register device.
7.The frequency control of motor speed adapts to different printing speed.
8.There are inching/Stopping buttons on the plate roller base and material rolling rack so as to easily operate the machine when the plate is installed.

Main Technical Parameters
Model
YT-4600
YT-4800
YT-41000
YT-41200
Max. Material Width
600mm
800mm
1000mm
1200mm
Max. Printing Width
560mm
760mm
960mm
1160mm
Printing Length
190-914mm
Printing Speed
5-60m/min
5-60m/min
5-60m/min
5-60m/min
Max. Diameter of Roll Material
Φ600 mm
Total Power
9.8kw
10.5kw
11.2kw
12kw
Plate Thickness (including two-sided glue paper)
2.38mm
Machine Weight
3000kg
3500kg
4000kg
4500kg
Overall Dimension
4.5×1.6×2.4m
4.5×1.8×2.4m
4.5×2.0×2.4m
4.5×2.2×2.4m
Working Voltage
380V 3-phase 50Hz
Extra optional devices
1) EPC web guider + Auto tension controller
2) Digital Corona Treater
3) Air Shaft
Tianrun retains the right to modify parameters without previous advice.

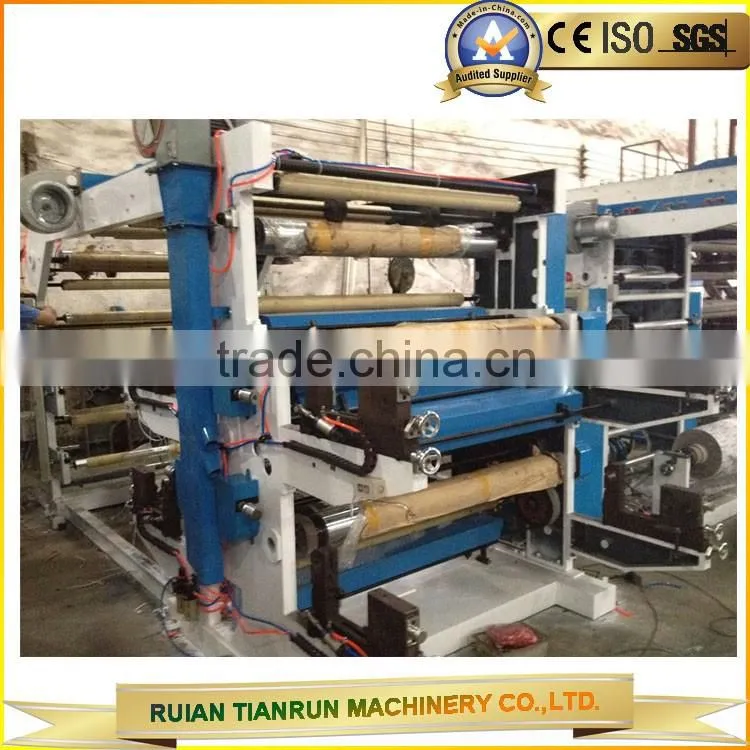

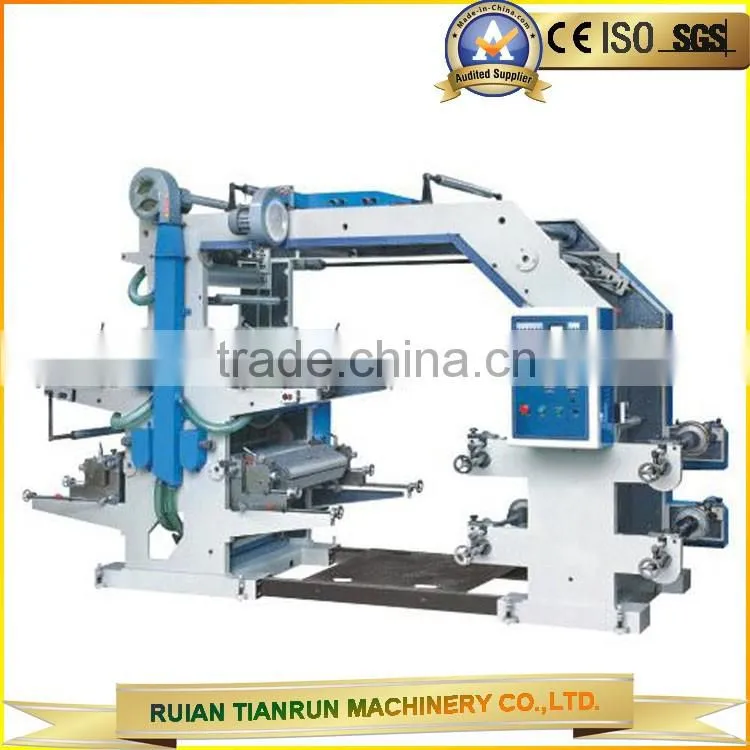

Machine Photos

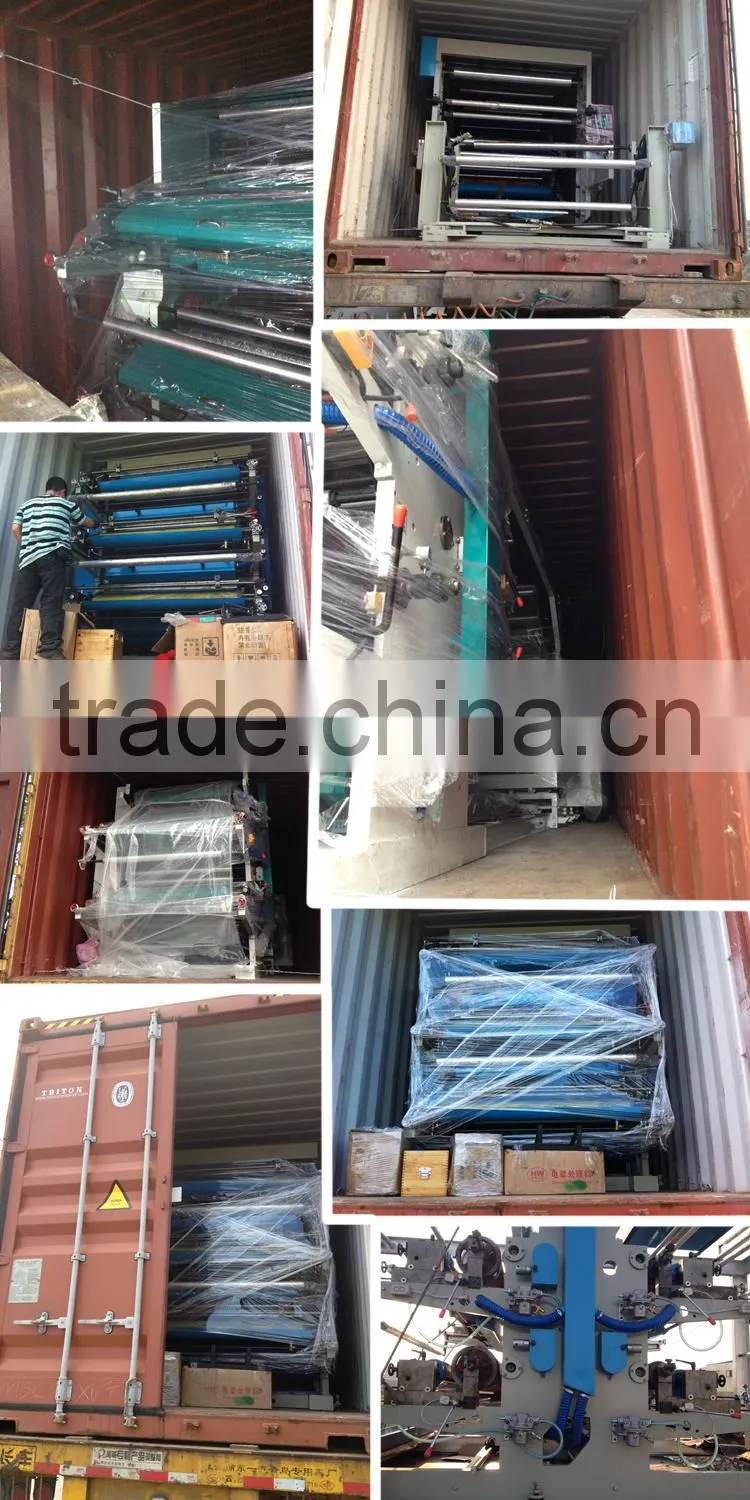

Package & Delivery
