Specifications
1.chlorine dioxide generator for wastewater disinfecting2.large treating capacity
3.good effect
4.low cost
5.easy operating
Chlorine Dioxide Generator for Wastewater Disinfecting
1. Composition:
It consists of feeding system, reaction system, control system, mixing and absorption system, security system.
2. Reaction Principle:
NaCLO3+2HCL→CLO2+1/2CL2+NaCL+H2O
Raw material:sodium chlorate(GB/T1618-1995, content: more than 99%),
hydrochloric acid(GB320-93, concentration : more than 31%).
3. Features:
(1) For production of compound disinfectant (chlorine dioxide as main, chlorine gas as auxiliary), calculated by available chlorine, CLO2 : more than 75%.
(2) Flow-meter dosage system for transferring raw material ensures simple operation, accurate material input, un-blockage and stable performance.
(3) Main reaction pot adopts imported compound material that is temperature-resistant, anti-corrosion with long life time.
(4) Total convertible rate of raw material≥85%,low energy consumption.
(5) Semi-auto run of machine, no need of extra worker if there’s enough material.
(6) Upper-positioned material basket is suitable for low water pressure area.
4. Consumption of raw material:
1g available chlorine consumes 0.65g sodium chlorate and 1.3g hydrochloric acid
5. Technical Parameters:
Model |
Available chlorine output(g/h) |
Pressure(Mpa) |
DN1(mm) |
DN(mm) |
Power(Kw) |
BT-50 |
50 |
≥0.20 |
25 |
32 |
0.5 |
BT-100 |
100 |
≥0.20 |
25 |
32 |
0.5 |
BT-200 |
200 |
≥0.20 |
25 |
32 |
0.5 |
BT-300 |
300 |
≥0.20 |
25 |
32 |
0.5 |
BT-500 |
500 |
≥0.20 |
25 |
32 |
0.5 |
BT-800 |
800 |
≥0.20 |
25 |
32 |
0.5 |
BT-1000 |
1000 |
≥0.20 |
32 |
40 |
0.5 |

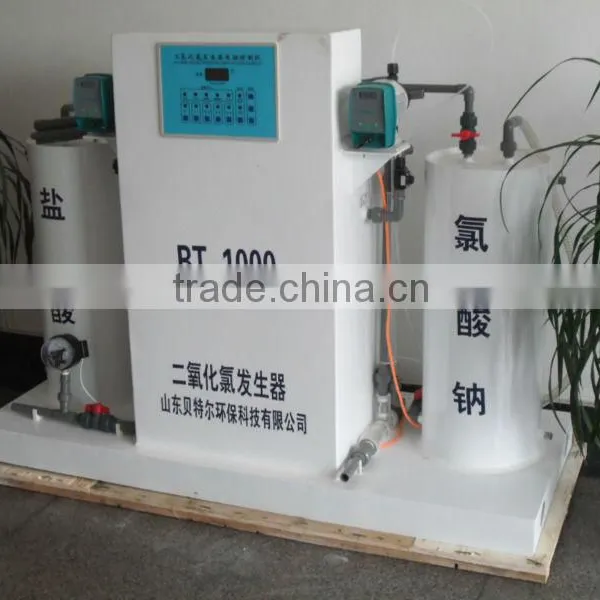

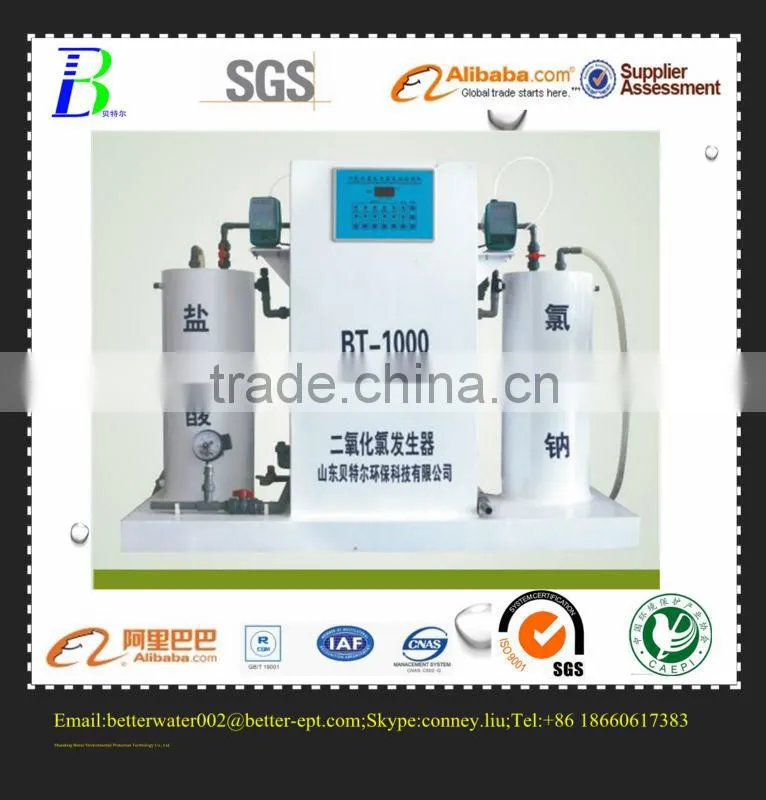

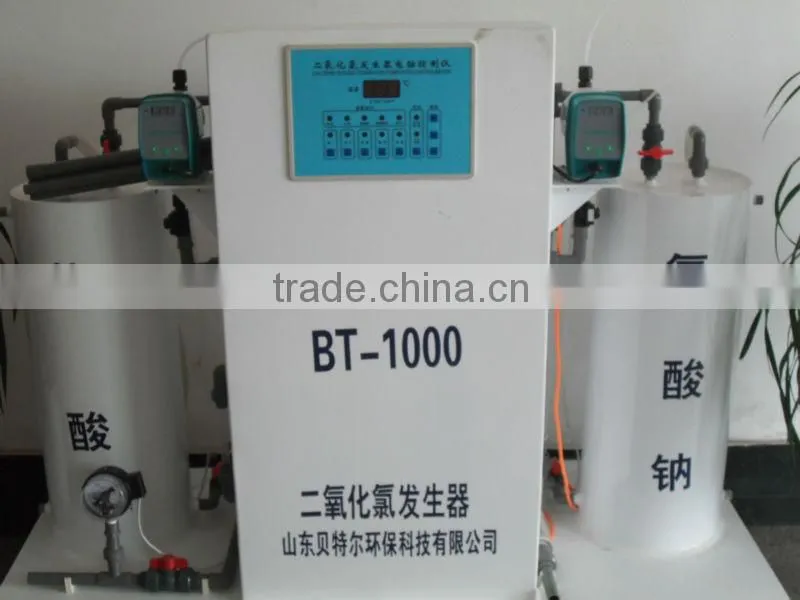

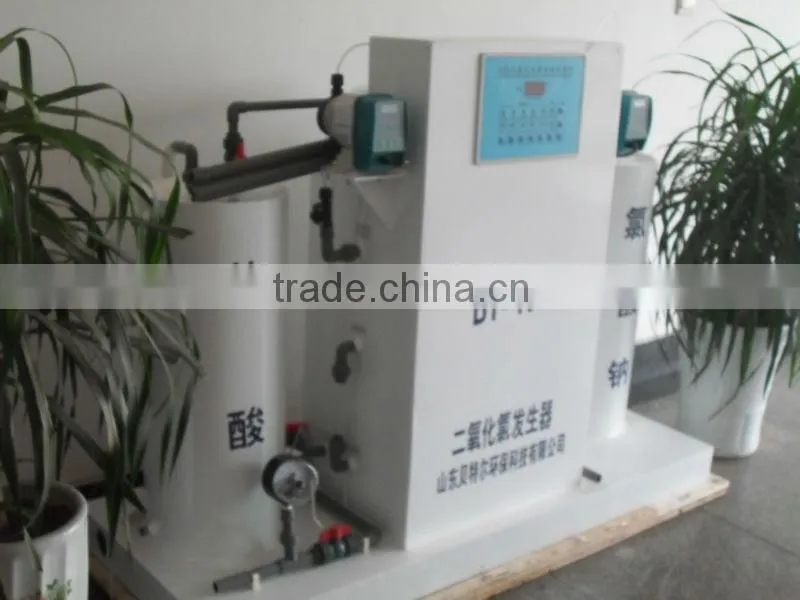

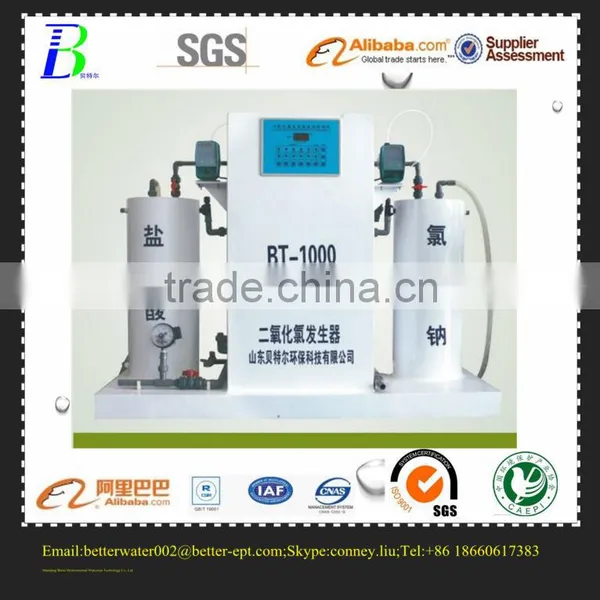

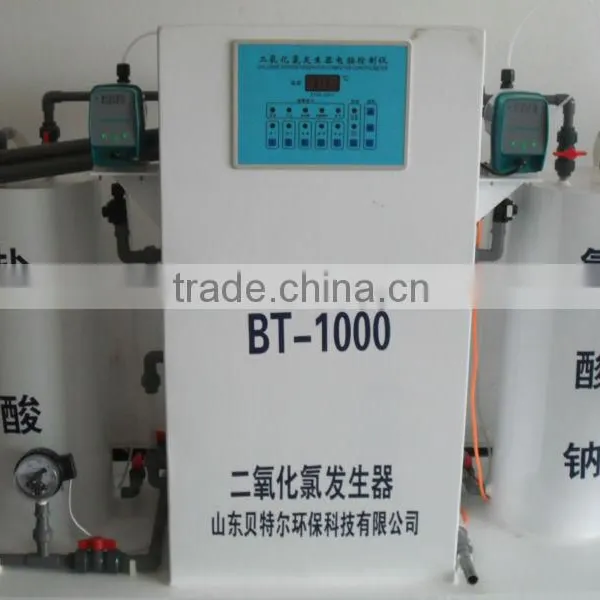

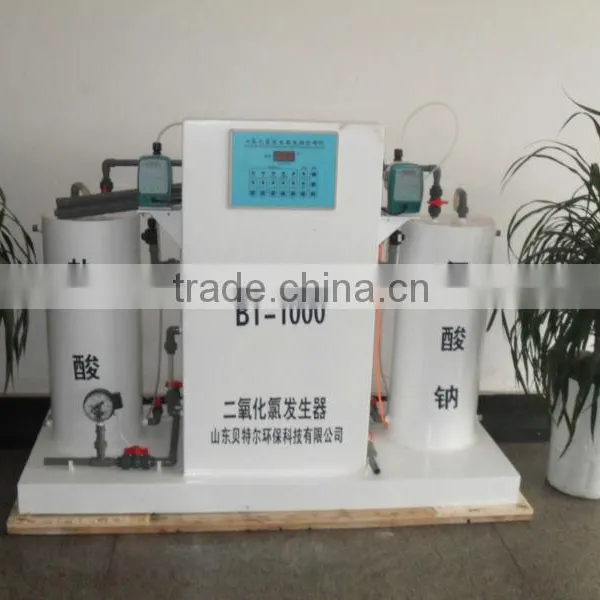

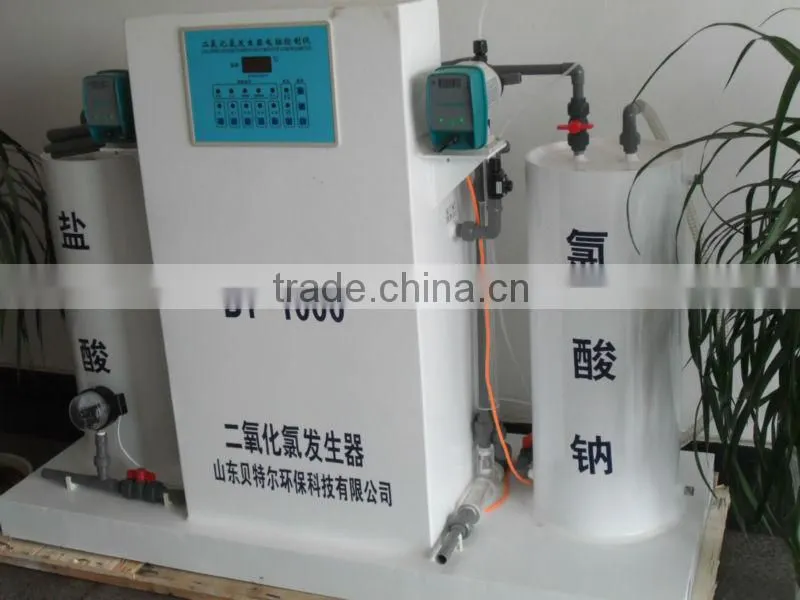

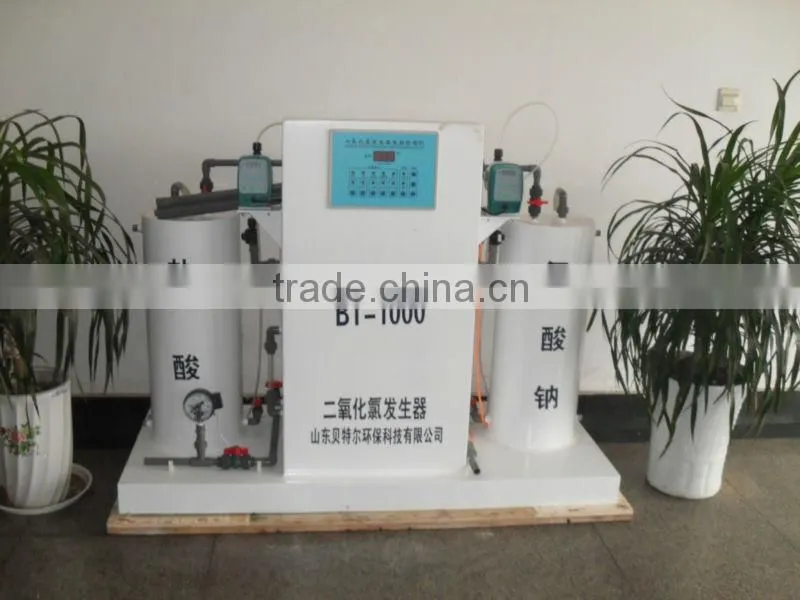

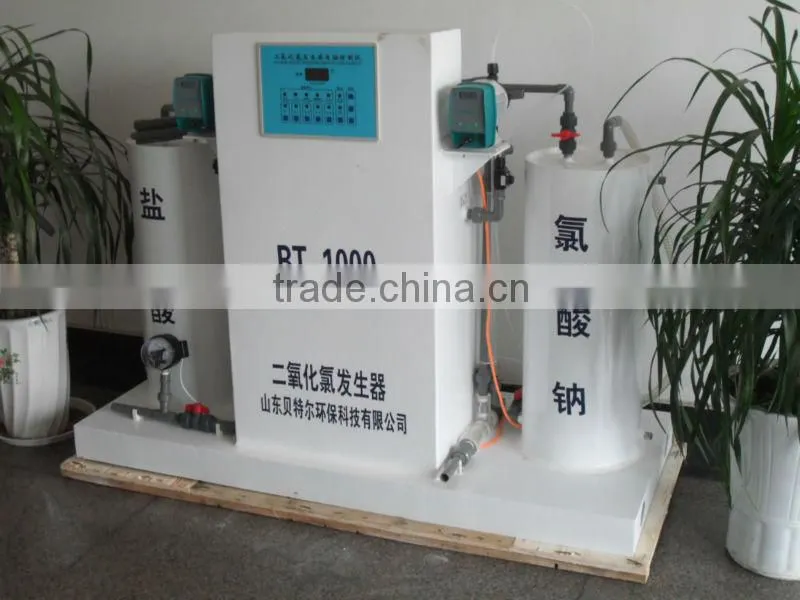

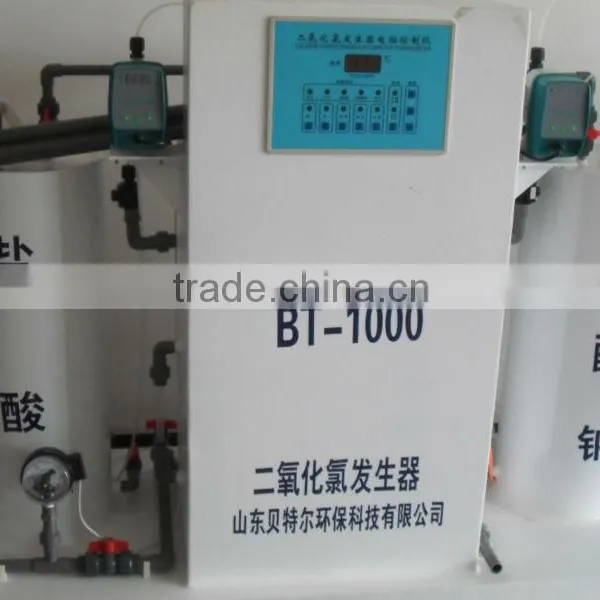

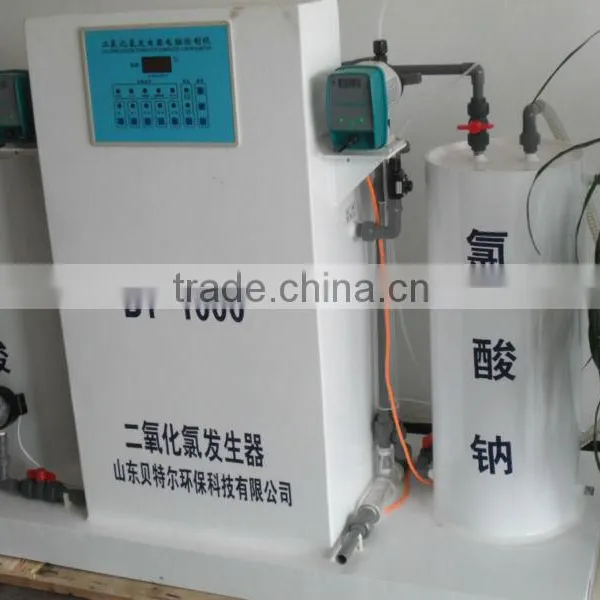

6. Product pictures:
Contact person:
Connnie Liu
skype: conney.liu
QQ: 917379746
Phone number: +86 15954432797
About us: why choose us
Company profile
Shandong Better Environmental Protection Technology Co., Ltd. is a high-tech enterprise which was established through the introduction of US technology and specialized in technical research and development, production, design and construction.
The company is located in Shandong Zhucheng, facing the coastal city Qingdao on the east and emerging port Rizhao port on the south, which has a superior location, convenient traffic and well equipped foundation. The company covers an area of 33000 m2, with a registered capital of 10 million yuan and the fixed asset 50 million yuan. At present, there are 185 employees in the company, among the existing staff, there are 76 professional personnel with college degree above or intermediate title above.
Depend on the perfect production and reliable quality, the products are widely used in the industrial and municipal sewage area. Now the products sell well at home, and once exported to other countries such as Japan, Holland, Pakistan, South America, Africa and Southeast Asia more than 30 countries and regions.
"There is no best, only Better", it is the pursuit we will never stop. We sincerely look forward to cooperating with friends at home and abroad and warmly welcome you to cooperate together for creating the better future.

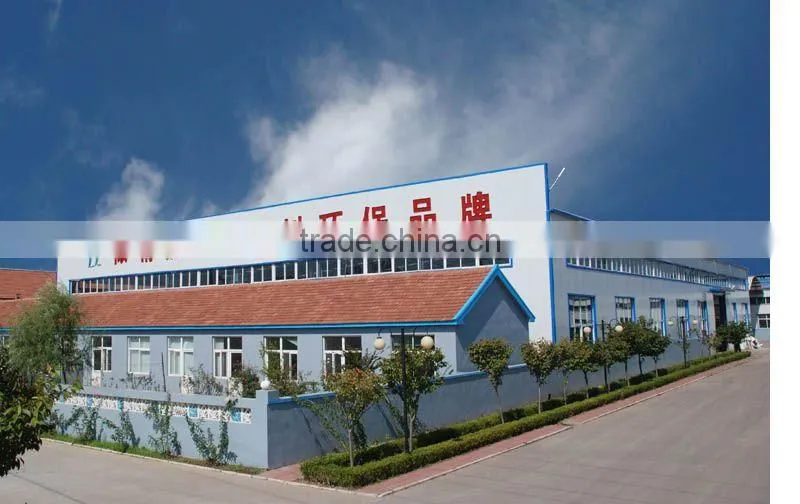

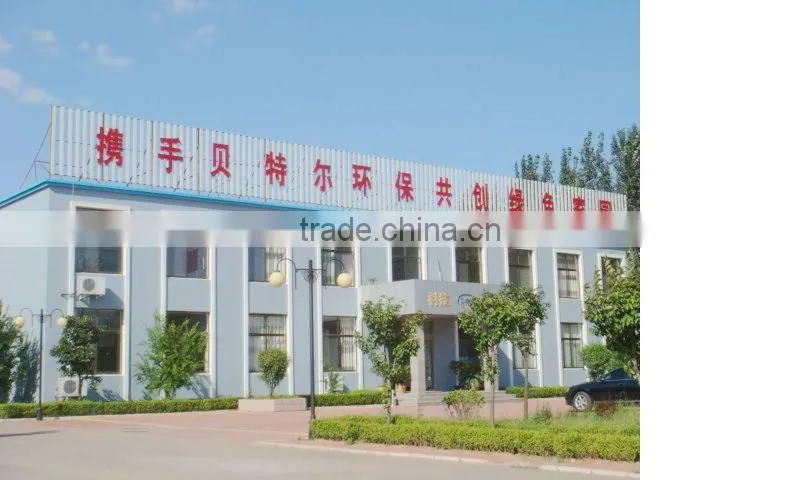

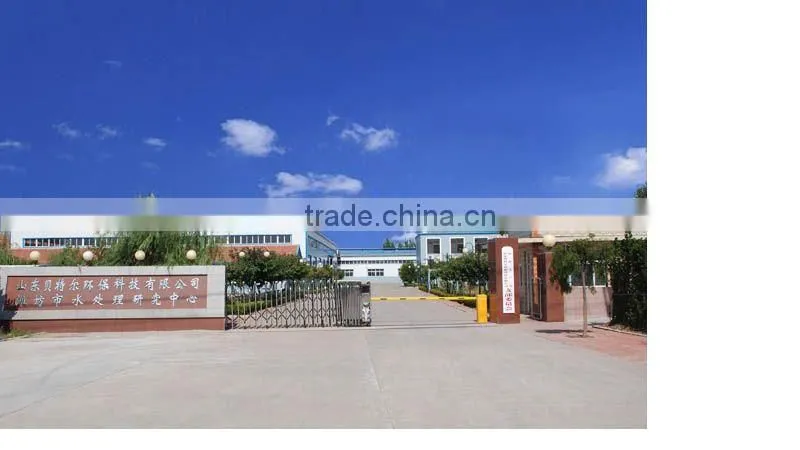

Company's photos:
