ClO2 Generator/ Chlorine Dioxide

Specifications

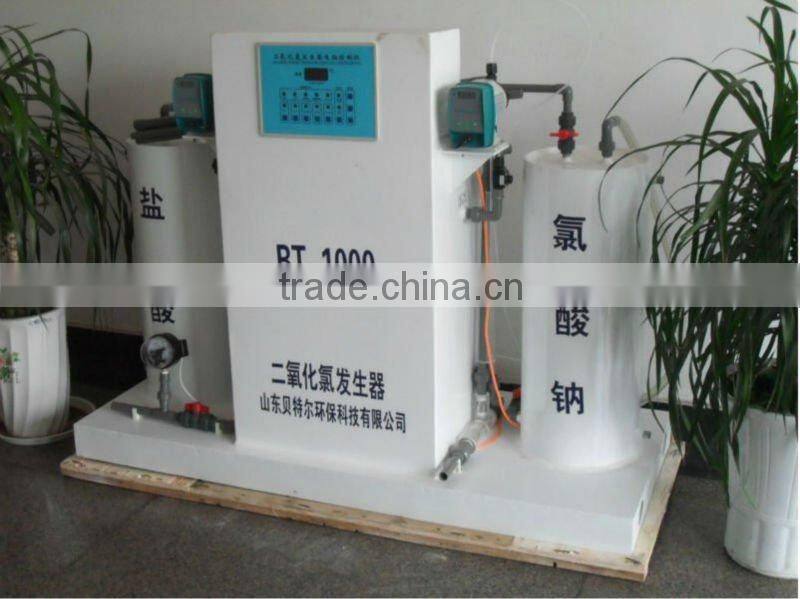

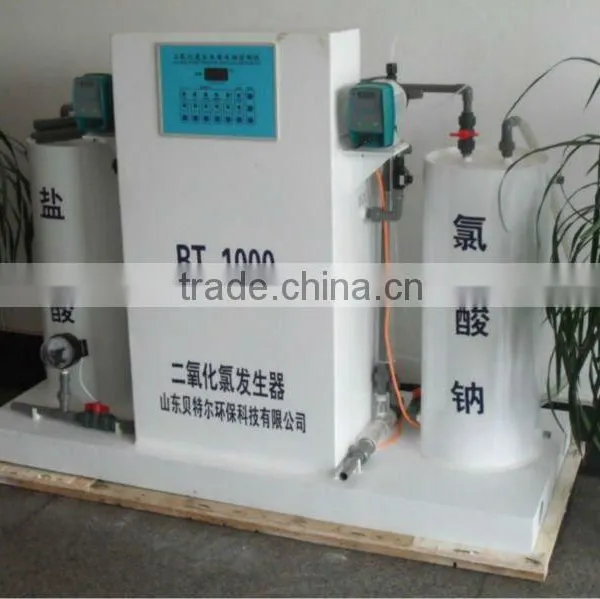

Chlorine Dioxide Generator

1. Composition:

   It consists of feeding system, reaction system, control system, mixing and absorption system, security system.

2. Reaction Principle:

    NaCLO3+2HCL→CLO2+1/2CL2+NaCL+H2O
 Raw material:sodium chlorate(GB/T1618-1995, content: more than 99%),

                    hydrochloric acid(GB320-93, concentration : more than 31%).
 3. Features:
(1) For production of compound disinfectant (chlorine dioxide as main, chlorine gas                    as auxiliary), calculated by available chlorine, CLO2  : more than 75%.

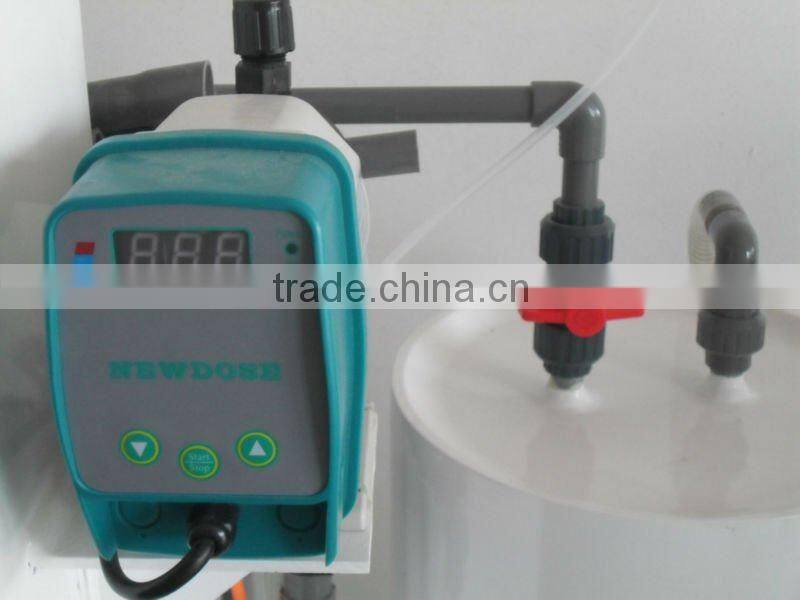

(2) Flow-meter dosage system for transferring raw material ensures simple operation, accurate material input, un-blockage and stable performance.
(3) Main reaction pot adopts imported compound material that is temperature-resistant, anti-corrosion with long life time.
(4) Total convertible rate of raw material≥85%,low energy consumption.
(5) Semi-auto run of machine, no need of extra worker if there’s enough material.

(6) Upper-positioned material basket is suitable for low water pressure area.

4. Consumption of raw material:

  1g available chlorine consumes 0.65g sodium chlorate and 1.3g hydrochloric acid

5. Technical Parameters:
