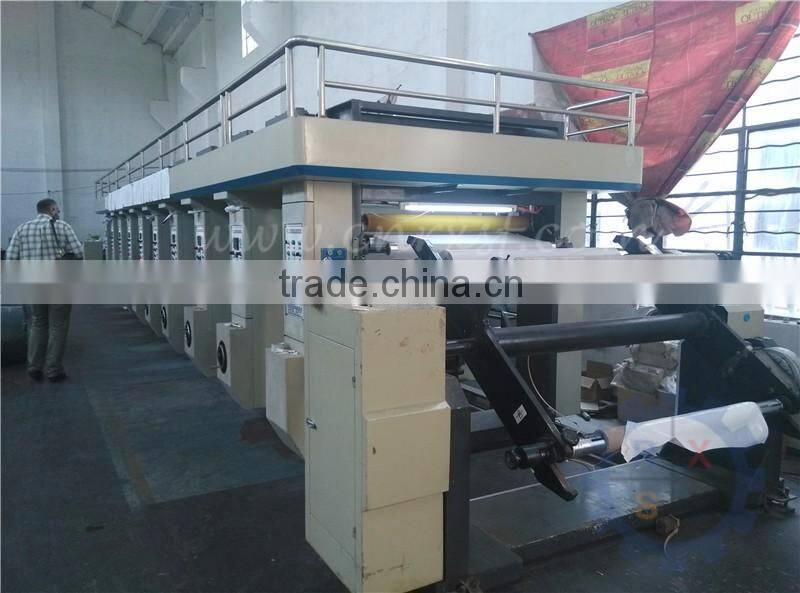

9 Color Rotogravure Thermal Transfer Paper / Film Printing Machine
US$ 74,000 - 120,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
RXSF
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shnaghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
9 Color 1200mm Computer Register and Web Video Gravure Printing Machine Quality ChoiceUS$ 65,000 - 95,000MOQ: 1 Set -
Rotogravure Printing Machine for FoilUS$ 85,000 - 145,000MOQ: 1 Set
-
2000mm Wide Format Rotogravure Printing Machine for PVC WallpaperUS$ 50,000 - 120,000MOQ: 1 Set
-
Gravure Printing Type Thick Pvc Shower Curtain Printing Machine Quality ChoiceUS$ 50,000 - 120,000MOQ: 1 Set
-
4 Color 1600mm Gravure Type Decorative Paper Printing MachineUS$ 55,000 - 75,000MOQ: 1 Set
Condition
New
Place of Origin
Zhejiang, China
Brand Name
RXSF
Model Number
1200
Usage
Other, heat transfer printing
Automatic Grade
Automatic
Voltage
380V 50Hz
Gross Power
140kw
Dimensions(L*W*H)
14.5*2.9*2.7 M
Weight
21000kg
Certification
CE Certification
Warranty
One Year
After-sales Service Provided
Engineers available to service machinery overseas
rotogravure printing machine for thermal transfer paper & film
800mm diameter unwinding and rewinding
Fujikura tension control system
Deep engraving design, also for woven materials
Product Description
1.Main Technical Parameters
A. Model (9 colors 13 units) |
1200 |
Remarks |
B. Printing Cylinder Dia (mm) |
100-380 |
External Dia |
C. Printing Width (mm) |
1230/1200 |
Max/Effective |
D. Printing Speed (m/min) |
10-120(Film/paper) 10-60(Thermal transfer paper/film )
|
|
E. Register Precision (mm) |
≤0.10 |
|
F. Unwinding Dia (mm) |
800 |
Duplex |
G. Rewinding Dia (mm) |
800 |
Duplex |
H. Tension Control Range (kg) |
2-50 |
|
I. Drying Method |
Electric-heating |
|
J. Total Power (kw) |
140 |
|
K. Weight (kg) |
21000 |
|
L. Overall Dimension (M) |
14.5*2.9*2.7 |
Removable Transport |
2.Comprehensive Description
Thermal transfer printing technology as an emerging technology, widely used in PP woven fabrics, woven cloth, textile fabrics, leather, Polyester, ABS, coated metal, wood printing. Process is divided into two steps: First, transfer film (paper) for dot printing, resolution of not less than 300dpi. Second, through sublimation transfer machine (heat and pressure) to achieve transfer printed pattern.
In the past decade, we have developed and improved through the years, already has a mature technology and rich experience. In our technical support, a number of factories at home and abroad to establish a complete production line of thermal transfer printing.
3. Product Features
(1) Duplex unwinding & rewinding, non-stop reloading
(2) Designed specifically for thermal transfer printing, dot printing resolution of 300dpi or greater
(3) Total printing unit (color) can be increased or decreased, not affect the registration accuracy.
(4) Automatic tension control, each printing unit has a separate web guide device
(5) Optional equipped with central surface curl rewinding unit, if width of more than 1400mm,
(6) PLC control, also computer color register and video detection systems can be optional
(7) Unique imprint technology, can be directly printing on woven material
4. Details and photos
1. Every detail will be described in detail by text and pictures, as confirmation.
2. We provide customized manufacture according to customer demand.
3. manufactured in accordance with European CE safety standards.

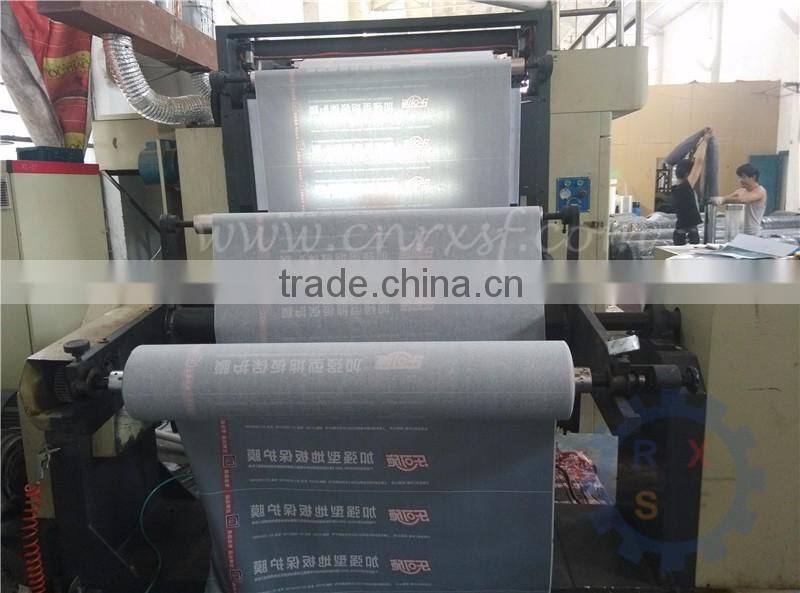

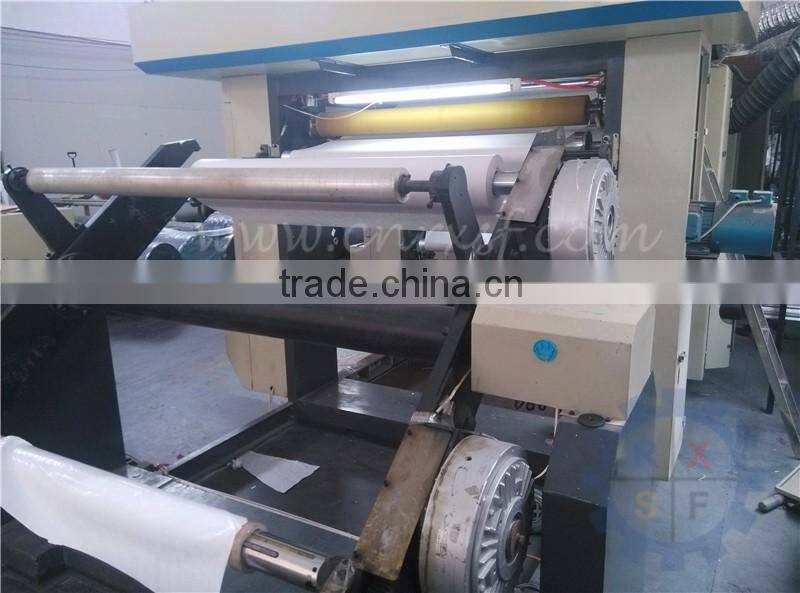

A. Unwinding & rewinding equipped with 800mm diameter rotary duplex, independent motor control and good synchronization:
B. Each printing unit equipped with a separate registration system, there is no cumulative error:

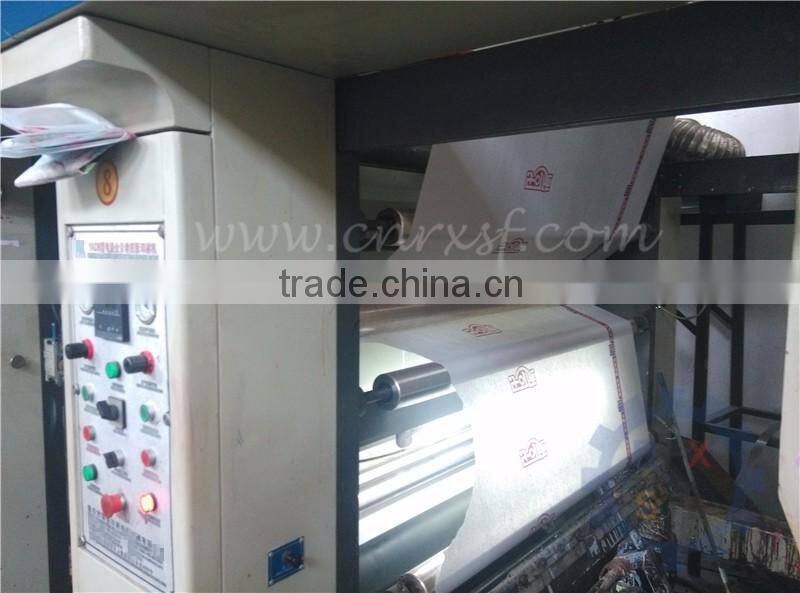

C. Rewinding motor adopt (Yasukawa) inverter control, with detection light box and high speed video camera systems:

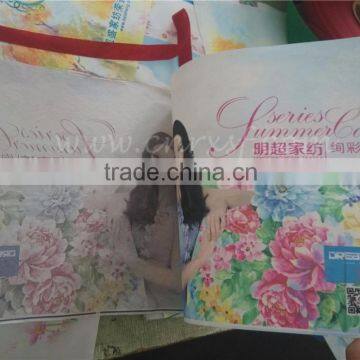

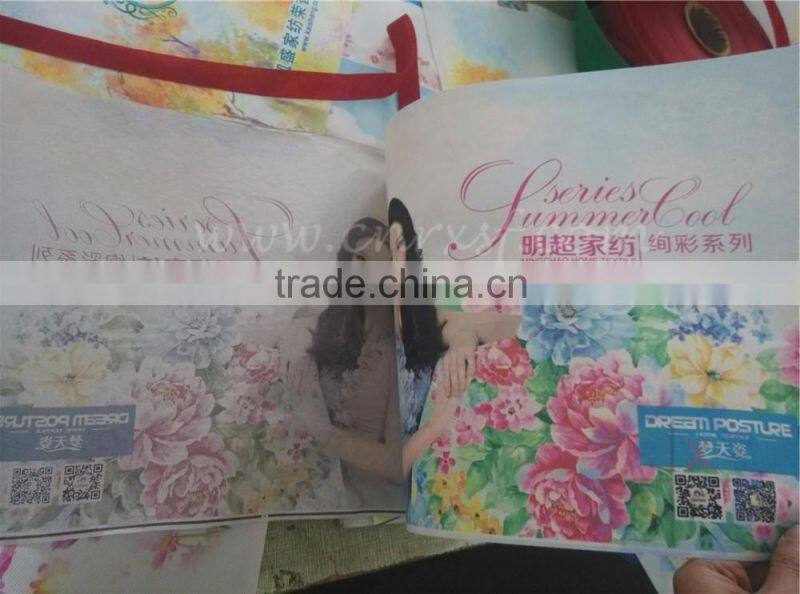

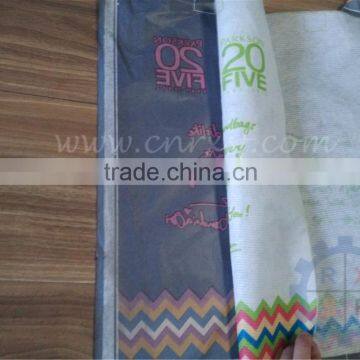

D. Thermal transfer paper and the non-woven fabric posttransfer:

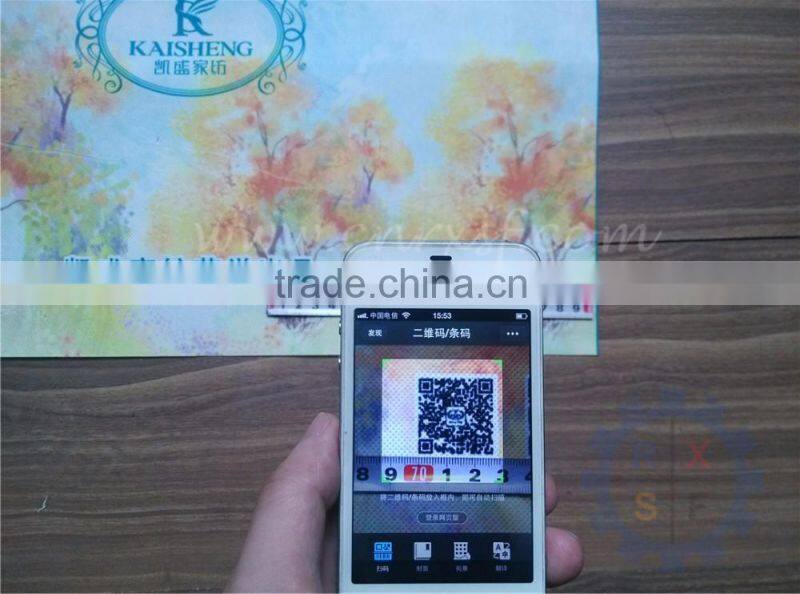

E. High-resolution thermal transfer, 2.7cm size dimensional code can be identified by Iphone 4S:

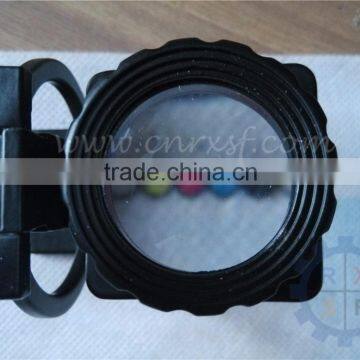

F. Printing color code 20 times magnification detection, accuracy better than 0.10mm:
A. Unwinding & rewinding equipped with 800mm diameter rotary duplex, independent motor control and good synchronization:
B. Each printing unit equipped with a separate registration system, there is no cumulative error:
C. Rewinding motor adopt (Yasukawa) inverter control, with detection light box and high speed video camera systems:
D. Thermal transfer paper and the non-woven fabric posttransfer:
E. High-resolution thermal transfer, 2.7cm size dimensional code can be identified by Iphone 4S:
F. Printing color code 20 times magnification detection, accuracy better than 0.10mm:
Packaging & Shipping
5. Packaging and shipping

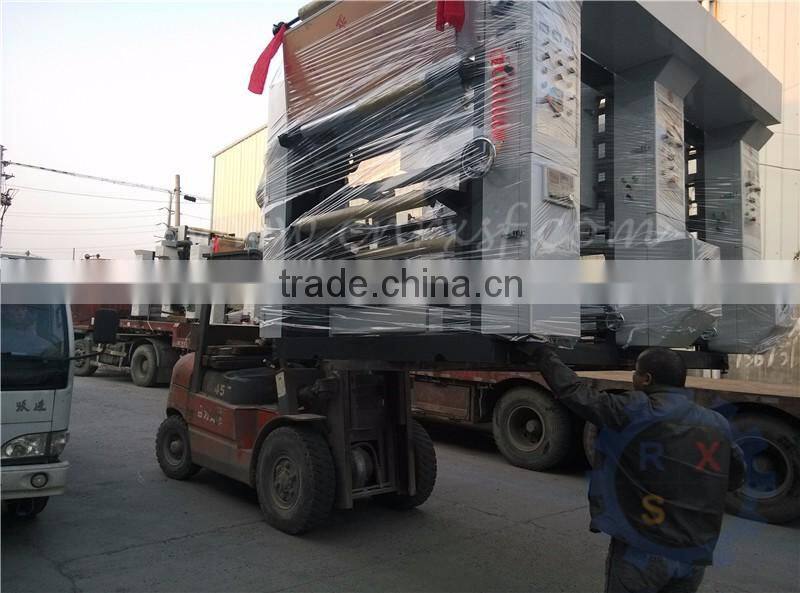

A. PE stretch film wrapping, corrugated cardboard protection, steel wire fixed:
B. Rubber roller, printing plate roller and spare parts, using felt and wooden box:
C. Electronic systems and wearing parts use wooden cases:
A. PE stretch film wrapping, corrugated cardboard protection, steel wire fixed:
B. Rubber roller, printing plate roller and spare parts, using felt and wooden box:
C. Electronic systems and wearing parts use wooden cases:
Our Services
6. Trading terms and after sales service
(1) We sold machines provide at least 360 days of quality assurance, during the warranty period, we assume full responsibility for the quality.
(2) The following three cases: beyond the quality guarantee period, improper operation and man-made damage, we still provide lifetime maintenance & guidance & commissioning of after-sales Service. However, engineers need to charge service fees.
(3) The non-standard machines that we manufacture according to customer needs, for non-standard parts, we offer customization and maintenance of lifetime, but the cost may be slightly higher than the standardized parts.
(4) Trading in FOB Term; the quoted price include the full price of the machine, transported to Ningbo Port fees, customs fees. Not include shipping and insurance charges. We can handle shipping on behalf of the purchaser, the cost paid separately by the purchaser.
(5) Earthquake, shipwrecks, war and other force majeure could be the grounds of exemption for delayed or cannot fulfill. Correspondingly, the other party's corresponding liability is also exempt.
(6) Installation and commissioning are part of after-sales service, at no additional charge. If the customer requests in writing, we will send qualified and experienced engineers. The fees borne by the customer, including but not limited to: transportation costs, accommodation costs, $ 100 per day in subsidies.
(7) Under any circumstances, customer information and contract details will be kept strictly confidential. Unless the court order or the consent of the client.
(8) Matters not covered in this document, refer to "United Nations Convention on Contracts for the International Sale of Goods (1980)" the relevant provisions solution. Both China and the United States are parties to the Convention.
7. Documents
7. Documents
A. Manuals, technical documentation, CE certificate (if required) will be sent along with the machine;
B. Bill of lading, invoices, certificates of origin (MFN certificate of origin), fumigation certificate (if required) will confirm with the client, and then sent via DHL or UPS:
