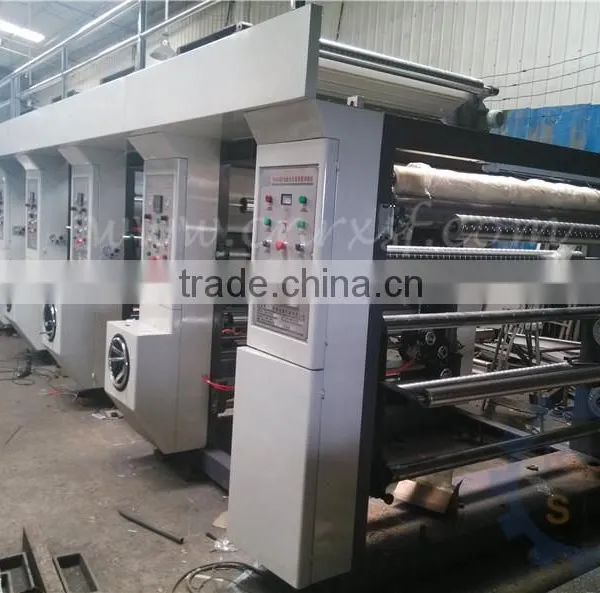

4 Color 1600mm Gravure Type Decorative Paper Printing Machine
US$ 55,000 - 75,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
RXSF
Payment & Shipping
Payment Methods:
Port of Shipment:
NIngbo/Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Decorative Paper Rotogravure Printing MachineUS$ 55,000 - 75,000MOQ: 1 Set -
10 Color Rotogravure Printing MachineUS$ 70,000 - 125,000MOQ: 1 Set
-
Automatic Computer Register and PLC Control Rotogravure Printing MachineUS$ 70,000 - 125,000MOQ: 1 Set
-
Rotogravure Label Aluminum Foil Printing Machine Supplier's ChoiceUS$ 85,000 - 145,000MOQ: 1 Set
-
9 Color Rotogravure Thermal Transfer Paper / Film Printing MachineUS$ 74,000 - 120,000MOQ: 1 Set
Condition
New
Place of Origin
Zhejiang, China
Brand Name
RXSF
Model Number
ASY 4-1600
Usage
Paper Printer
Automatic Grade
Automatic
Voltage
380V 50Hz
Gross Power
80
Dimensions(L*W*H)
8.5*3.2*2.7 M
Weight
10000kg
Certification
CE Certification
Warranty
One Year
After-sales Service Provided
Engineers available to service machinery overseas

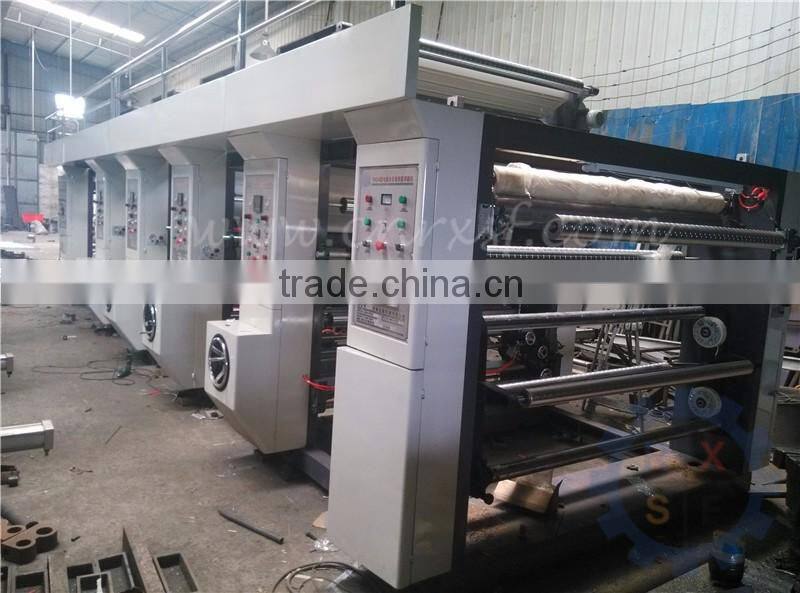

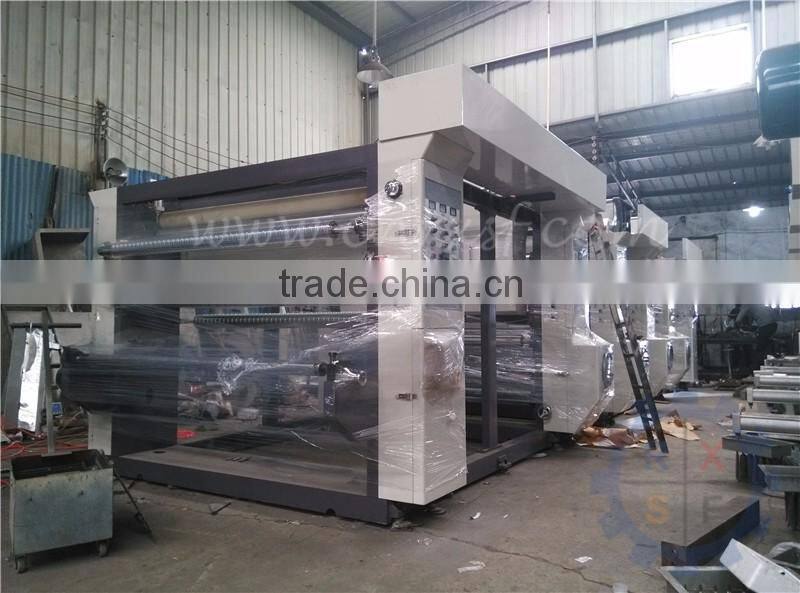

4 color 1600mm gravure type decorative paper printing machine
Specially designed for the decorative paper. Can be customized, one or two units can be converted into a coating unit for "formaldehyde - melamine" coating. Can increase the laminate type oven at the top to form the "printing - coating - dry" production line.
Product Description
1.Main Technical Parameters
A. Model (4 colors 6 units) |
1600 |
Remarks |
B. Printing Cylinder Dia (mm) |
100-380 |
External Dia |
| C. Anilox Coating Roller Lines | 60-120 | Amount of glue 15-40 g/m² |
D. Printing/coating Width (mm) |
1630/1600 |
Max/Effective |
E. Printing/coating Speed (m/min) |
10-120 |
|
F. Printing Register Precision (mm) |
≤0.10 |
|
G. Unwinding Dia (mm) |
1000 |
Hydraulic lift optional |
H. Rewinding Dia (mm) |
600 |
Rotating duplex |
I. Tension Control Range (kg) |
2-30 |
Fujikura low-friction cylinder |
J. Drying Method |
Electric-heating |
Laminating type oven optional |
K. Total Power (kw) |
80 |
|
L. Weight (kg) |
9000 |
|
M. Overall Dimension (M) |
8.5*3.2*2.7 |
Without laminating type oven |
2.Comprehensive Description
This is a custom design, mainly used for variety of specialty paper printing or coating. Different from the ordinary gravure printing machine, it is more like a multi-functional machine. Each printing unit is a combination of "doctor blade & roller" of, so can also be used to coating. If the customer needs, we can increase the laminated type oven. Front of units for printing, using the vertical-type printing oven; The last unit for coating (typically formaldehyde - melamine), and then into the oven laminate type. Thus, to form a versatile decorative paper production lines.
3. Product Features
(1) 1000mm unwinding and rotation duplex 600mm rewinding for jumbo dia materials
(2) Fujikura "Low-friction cylinder -PLC" tension control systems, micro spring shaft auxiliary adjusting
(3) Cylinder segment control doctor blade and separate reciprocating motor to ensure the printing effect
(4) Shaftless transmission and plate changing technology, ease of operation, improve efficiency
(5) External heat source, L-type composite oven with good drying effect and energy saving
(6) Computer register system and web video system
(7) Fully automatic operation with PLC control
4. Details and photos
1. Every detail will be described in detail by text and pictures, as confirmation.
2. We provide customized manufacture according to customer demand.
3. Manufactured in accordance with European CE safety standards.

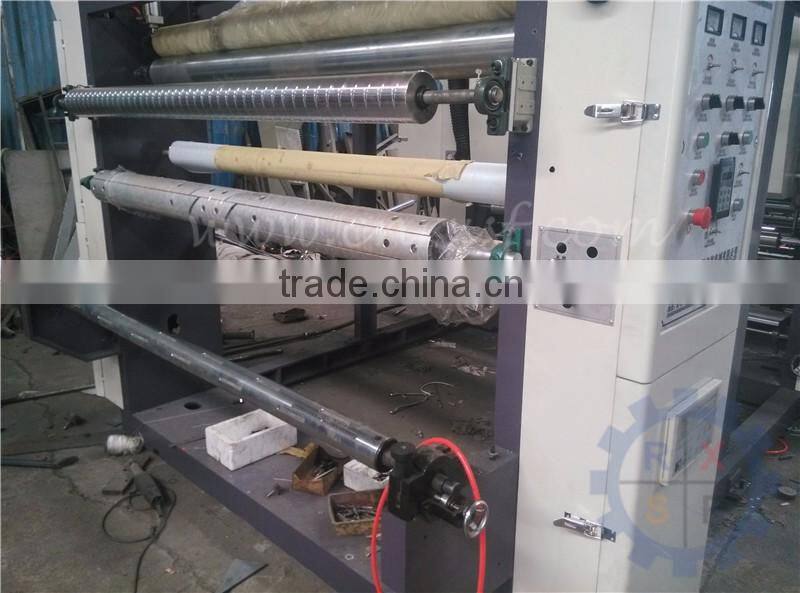

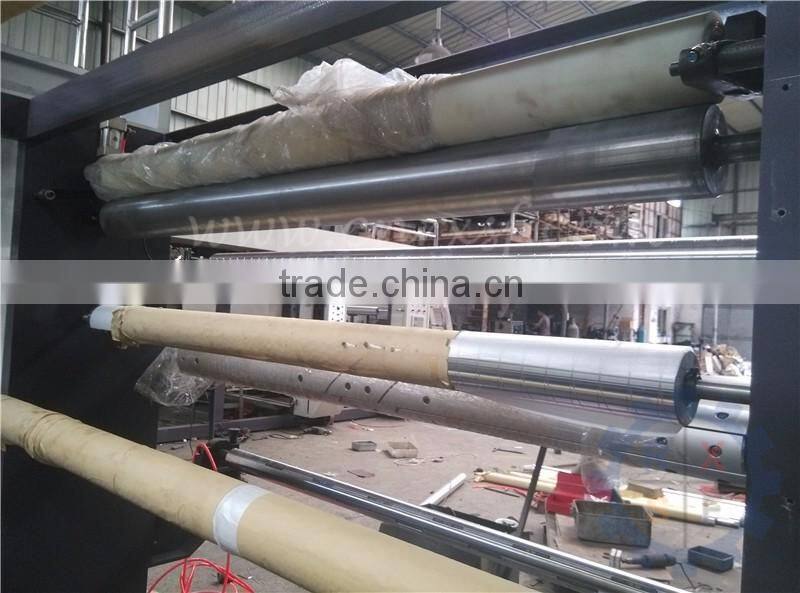

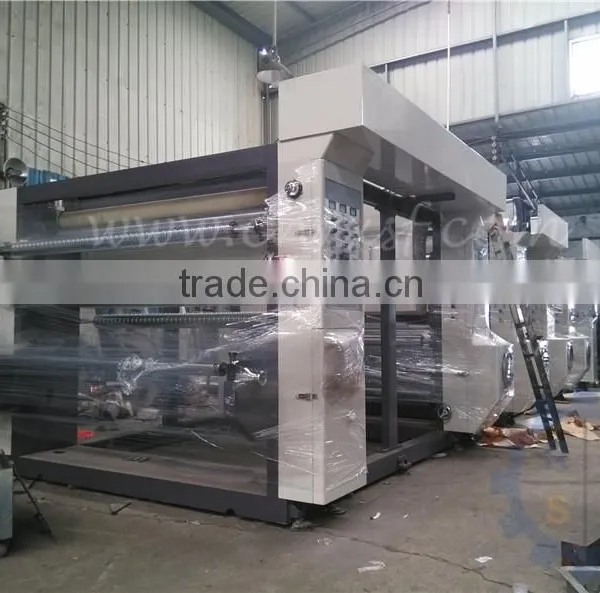

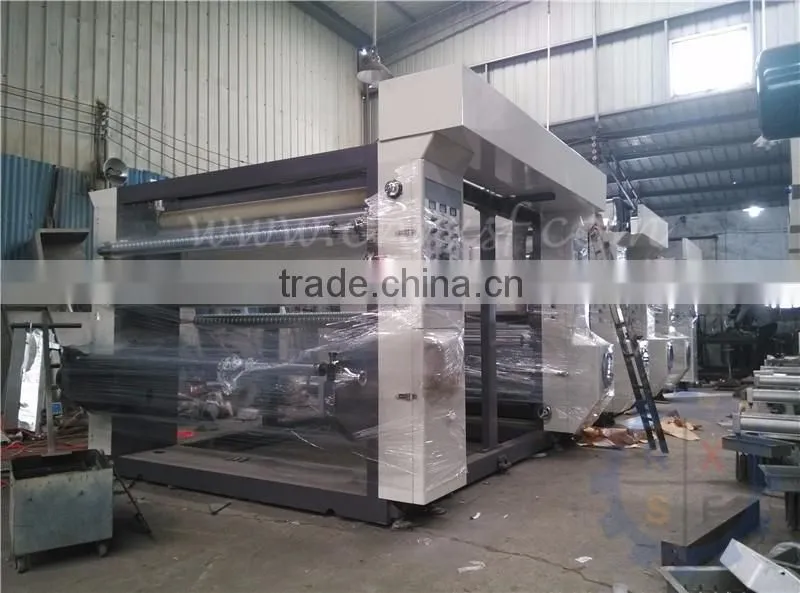

A. 1000mm unwinding and rotation duplex 600mm rewinding for jumbo dia materials:

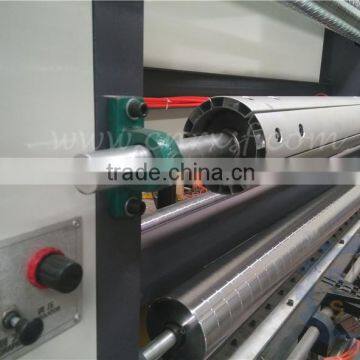

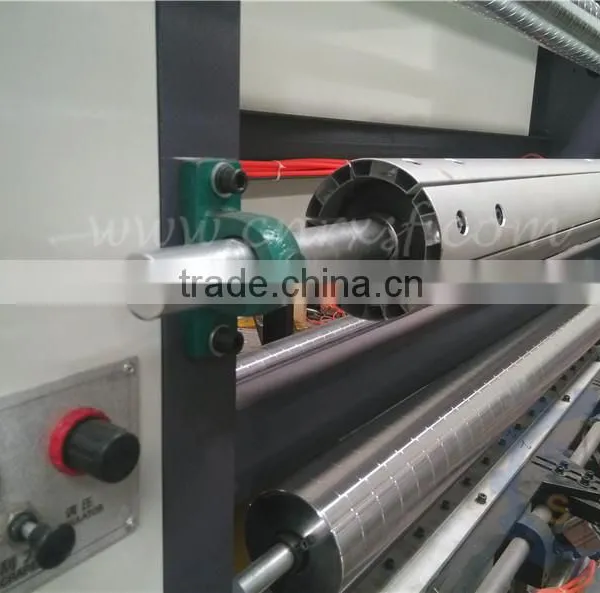

B. Fujikura "Low-friction cylinder -PLC" tension control systems, micro spring shaft auxiliary adjusting:

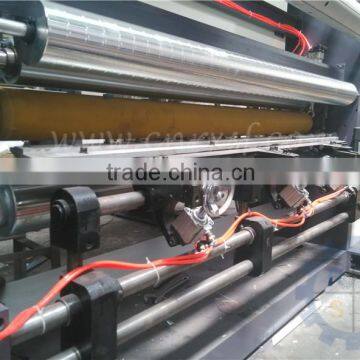

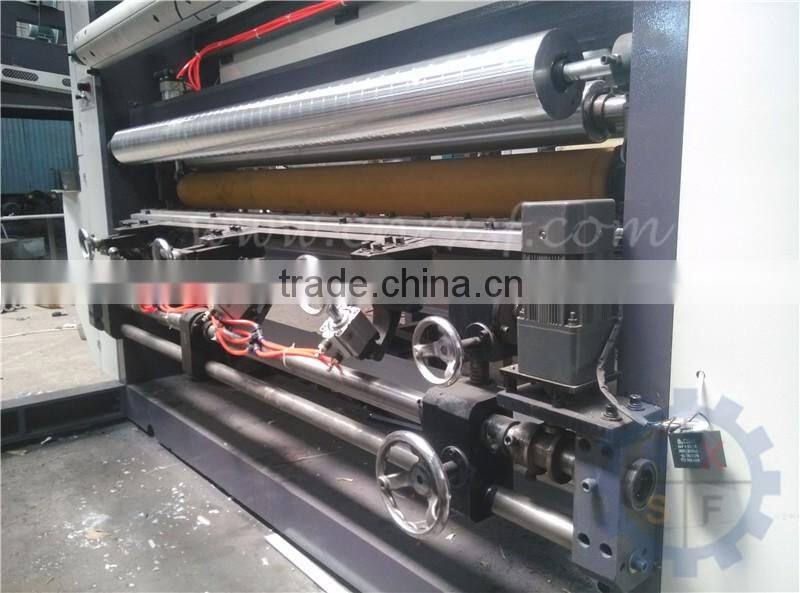

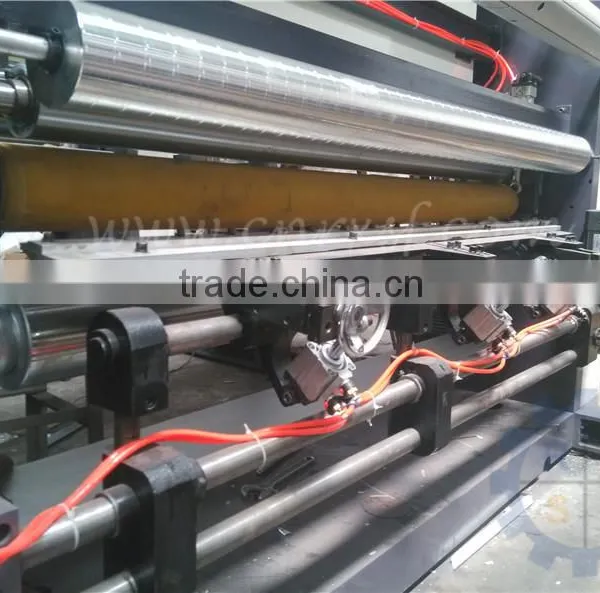

C. Cylinder segment control doctor blade and separate reciprocating motor to ensure the printing effect:

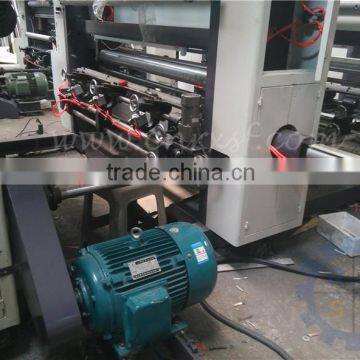

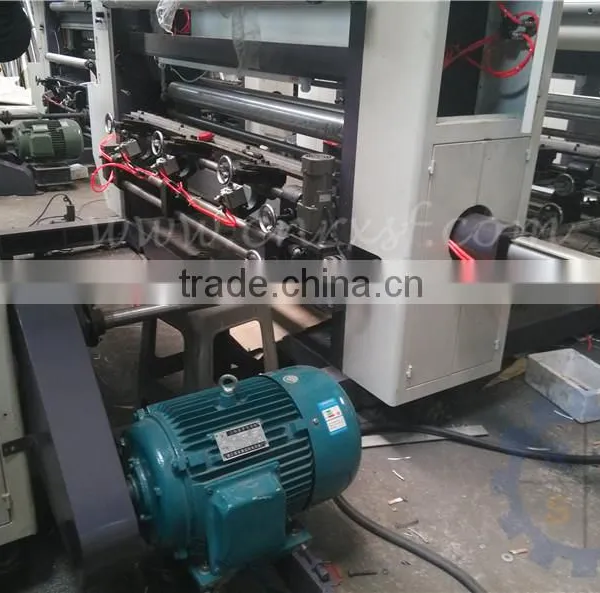

D. Shaftless transmission and plate changing technology, ease of operation, improve efficiency:
A. 1000mm unwinding and rotation duplex 600mm rewinding for jumbo dia materials:
B. Fujikura "Low-friction cylinder -PLC" tension control systems, micro spring shaft auxiliary adjusting:
C. Cylinder segment control doctor blade and separate reciprocating motor to ensure the printing effect:
D. Shaftless transmission and plate changing technology, ease of operation, improve efficiency:

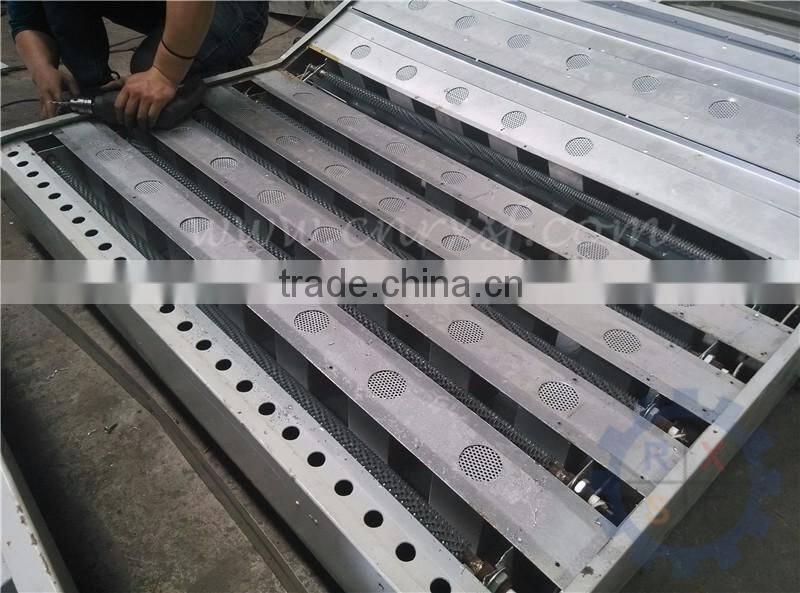

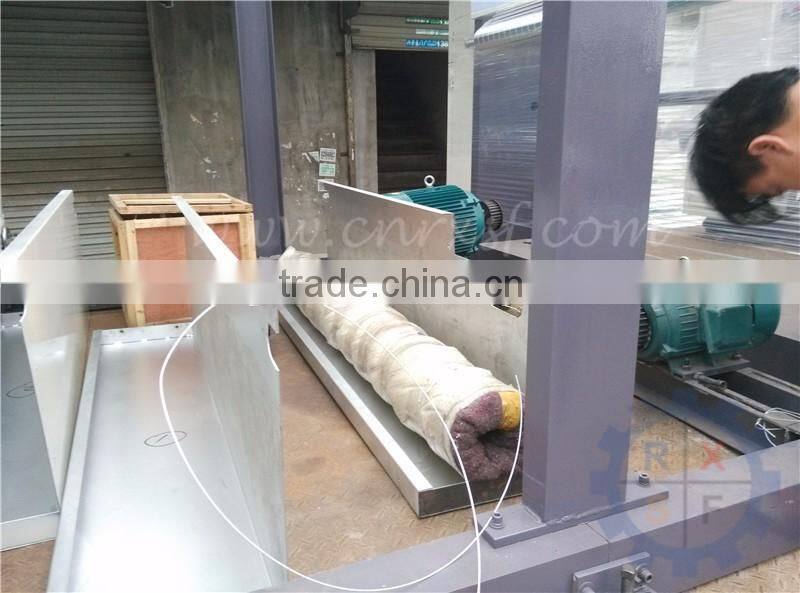

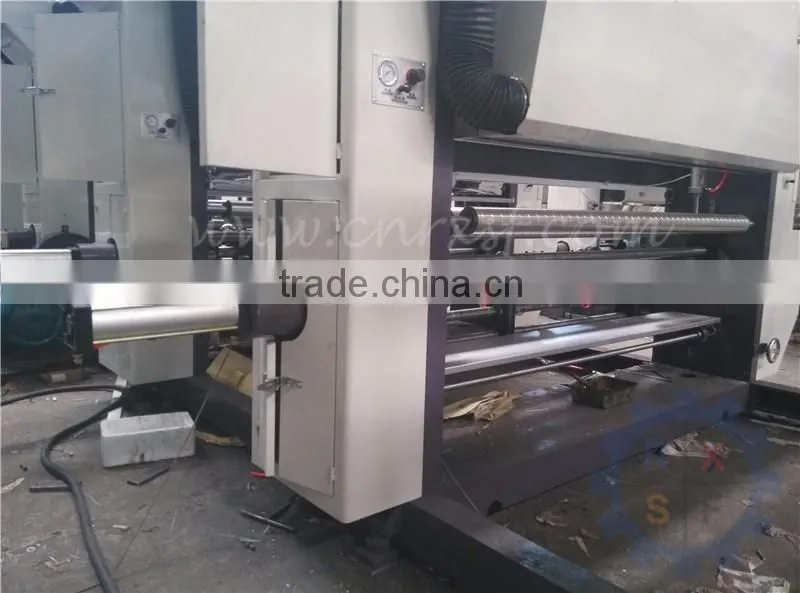

E. External heat source, L-type composite oven with good drying effect and energy saving:
Packaging & Shipping
5. Packaging and shipping

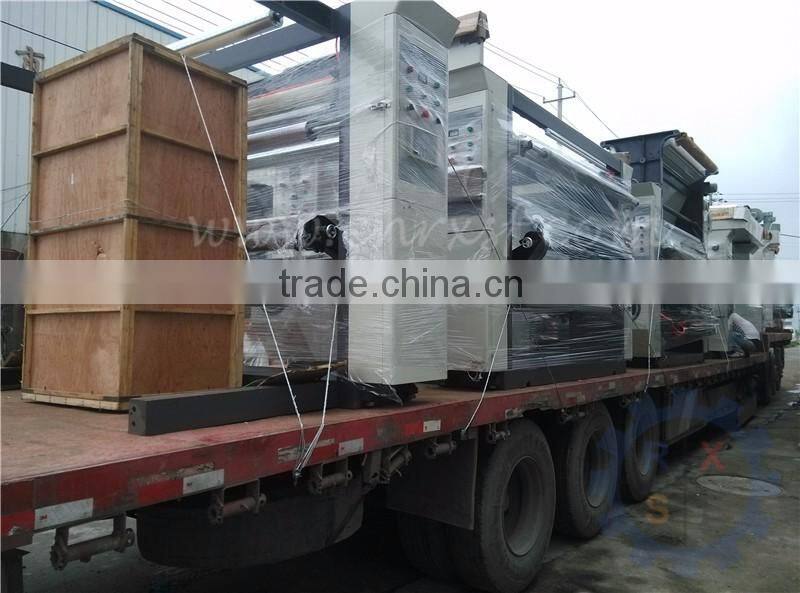

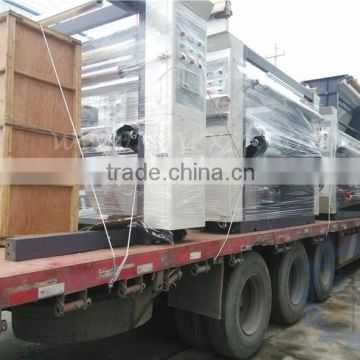

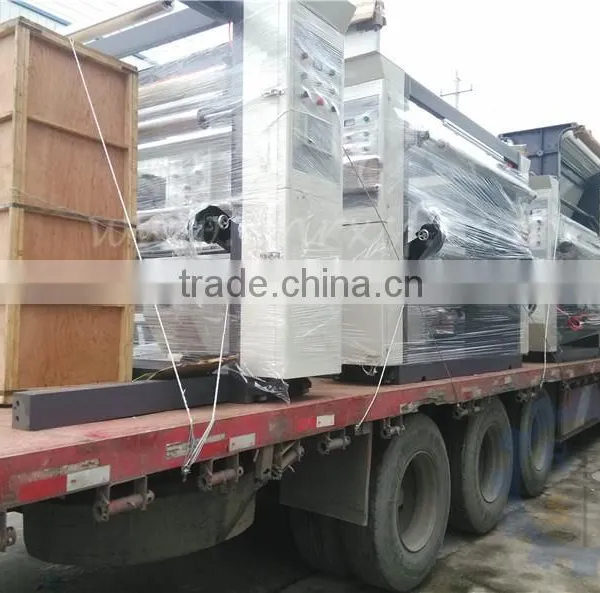

A. PE stretch film wrapping, corrugated cardboard protection, steel wire fixed:
B. Rubber roller, printing plate roller and spare parts, using felt and wooden box:
C. Electronic systems and wearing parts use wooden cases:
A. PE stretch film wrapping, corrugated cardboard protection, steel wire fixed:
B. Rubber roller, printing plate roller and spare parts, using felt and wooden box:
C. Electronic systems and wearing parts use wooden cases:
Our Services
6. Trading terms and after sales service
(1) We sold machines provide at least 360 days of quality assurance, during the warranty period, we assume full responsibility for the quality.
(2) The following three cases: beyond the quality guarantee period, improper operation and man-made damage, we still provide lifetime maintenance & guidance & commissioning of after-sales Service. However, engineers need to charge service fees.
(3) The non-standard machines that we manufacture according to customer needs, for non-standard parts, we offer customization and maintenance of lifetime, but the cost may be slightly higher than the standardized parts.
(4) Trading in FOB Term; the quoted price include the full price of the machine, transported to Ningbo Port fees, customs fees. Not include shipping and insurance charges. We can handle shipping on behalf of the purchaser, the cost paid separately by the purchaser.
(5) Earthquake, shipwrecks, war and other force majeure could be the grounds of exemption for delayed or cannot fulfill. Correspondingly, the other party's corresponding liability is also exempt.
(6) Installation and commissioning are part of after-sales service, at no additional charge. If the customer requests in writing, we will send qualified and experienced engineers. The fees borne by the customer, including but not limited to: transportation costs, accommodation costs, $ 100 per day in subsidies.
(7) Under any circumstances, customer information and contract details will be kept strictly confidential. Unless the court order or the consent of the client.
(8) Matters not covered in this document, refer to "United Nations Convention on Contracts for the International Sale of Goods (1980)" the relevant provisions solution. Both China and the United States are parties to the Convention.
7. Documents
7. Documents
A. Manuals, technical documentation, CE certificate (if required) will be sent along with the machine;
B. Bill of lading, invoices, certificates of origin (MFN certificate of origin), fumigation certificate (if required) will confirm with the client, and then sent via DHL or UPS:
