Specifications
it is suitable for any reel form packing material printingfunction
The machine is suitable for glassine paper, BOPP, PET,PVC,PE,NYLON,aluminum foil and paper etc with roll type multicolor continuous printing, it is widely used for high quality printing production.
main parameter
type |
YS-ZF1300 |
YS-ZF1500 |
Printing width |
1300mm |
1500mm |
Roll width |
1320mm |
1520mm |
Color units |
6color 8units |
6color 8units |
Rewinding and unwinding diameter |
600mm |
600mm |
Printing plate diameter |
120-300mm |
120-300mm |
Paper core inner dia. |
φ76mm |
φ76mm |
registration precision |
±0.15mm |
±0.15mm |
Printing speed |
50-140m/min |
50-140m/min |
Machine speed |
110m/min |
110m/min |
Oven heating power |
58kw |
62kw |
Total power |
72kw |
80kw |
overall machine weight |
Approx 12000kg |
Approx 13000kg |
dimension |
12000*2600*2700mm |
12000*2800*2700mm |
machine spec.
1 Overall machine is permutation combined type
2 shaft plate
3 static balance aluminum alloy guide roller, sealing type oven, Energy conservation and fast drying, auto-consent temperature control system
4 unwinding, feeding traction adopt fully automatic tension controller and magnetic powder brake control
5 rewinding, discharging traction adopt vector inverter control, running is more steady
6 pneumatic back press type movable doctor blade
7 ink cycle system, expand air shaft type unload and load shaft
8 high precision gear drive box, adopt proprietary technology
9 rewinding , unwinding is rotation double station frame, to realize no-stop splicing system
10 fully automatic computer registration device, can choose static inspecting menu.

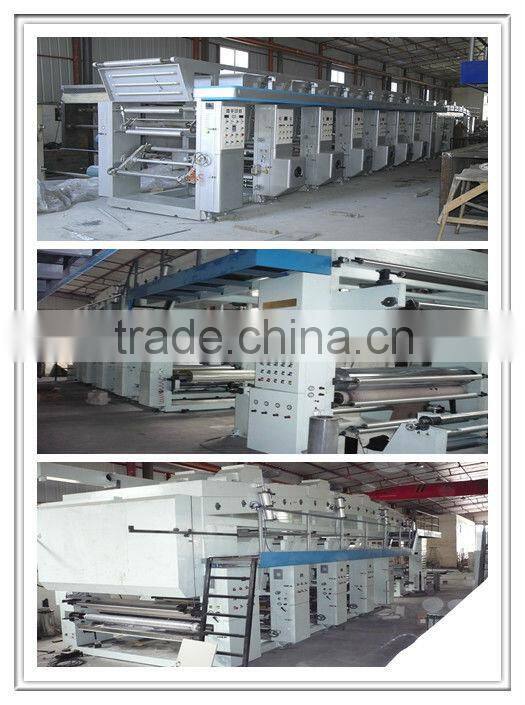

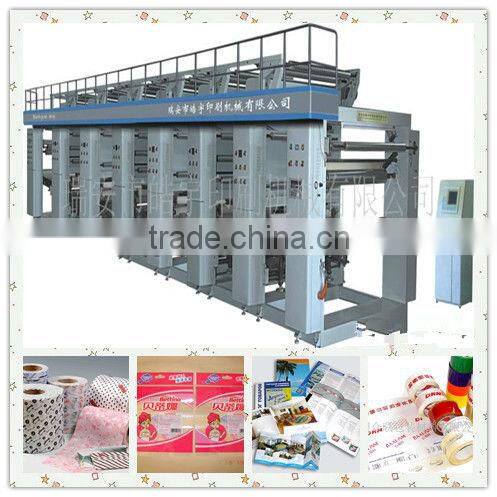

PRODUCTION PHOTO

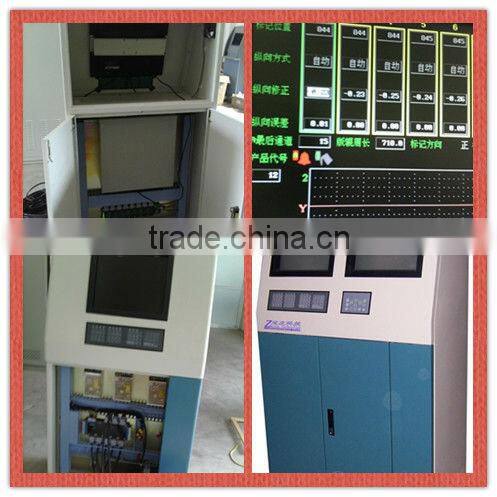

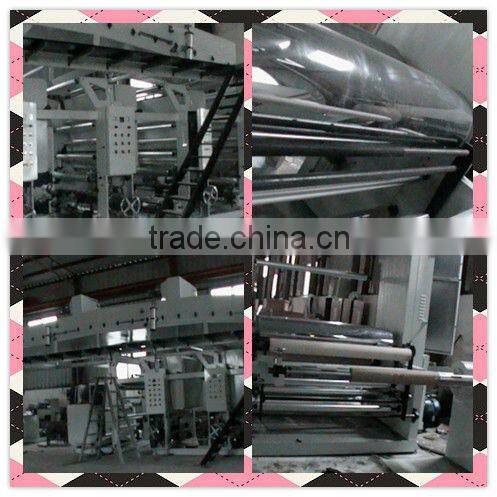

MACHINE PARTS
OUR FACTOY
5 OUR SERVICE
1. Purchase Service
HAOYU COMPANY have a specialize and efficiency working team.If you are new on the printing and packing area ,Some samples of your products could be shew to us will be appreicate ,we will give you specialized suggestion of whole work .
2. Shipping Service
HAOYU COMPANY have a spcialized and independent department which just for shipping the buyer's goods .The workers are knowing T/T,L/C Items well.all Exported documents could be made perfectly .
HAOYU COMPNAY copperate with the most famous shipping company in China also.They could provide the best and economic shipping ways to the buyer's port.
3.Installation Services
Installation Services are available with all HAOYU Company machines.HAOYU Comapny will dispatch technician to The Buyer's factory to installation and preoperation of machines .But the buyer need to surpply the round trip tickets ,food ,hotel cost.visa charge,and 100USD/DAY/PERSON as salary.
4.Clients Training Services
HAOYU Company advise The buyer could send own technican come to HAOYU factory to learn how to operate machines.HAOYU Company technician will teach and train the lerners hand by hand till he can operate machine by himself.
Obviouslly, Traning within Installation period is acceptable.
5.After Sales Service
HAOYU Company machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with machines.
Any parts broken ,Just a pictures or a videos.
The new free parts will reach within 3-7 Express working days .
SHOULD ANY FURTHER INFORMATION BE REQUIRED ,PLEASE FEEL FREE TO CONTACT WITH US
Telephone:0086-577-65165266
Fax:0086-577-65186255
Mob.:0086-13958857367
Website:
