Gravure printing type thick pvc shower curtain printing machine Quality Choice

FOB Price

USD $50,000 - $120,000 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port Ningbo/Shanghai Port
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Place of Origin:	Zhejiang, China	Brand Name:	RXSF
Model Number:	5 colors 9 units	Usage:	Other, PVC printer	Automatic Grade:	Semi-Automatic
Voltage:	AC380v 50hz	Gross Power:	140kw	Dimensions(LWH):	14.53.82.75M
Weight:	18000kg	Certification:	CE Certification	Warranty:	One Year
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

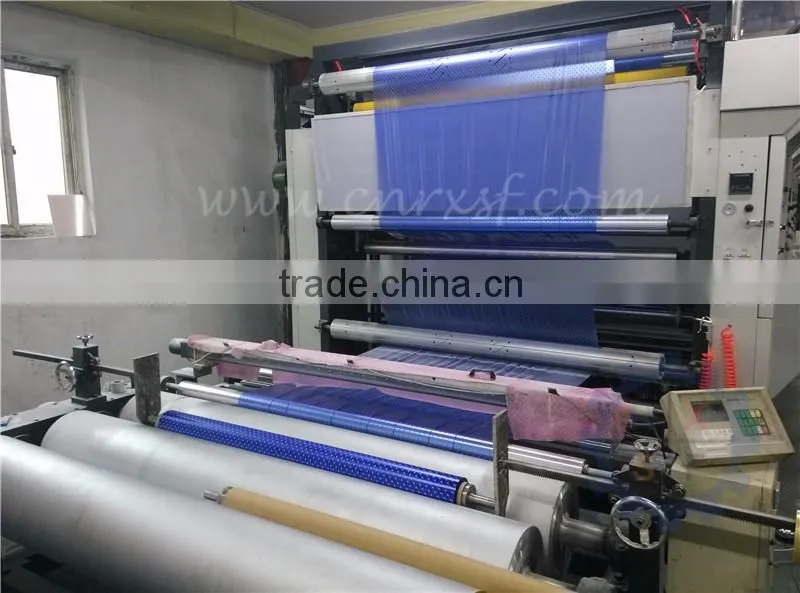

rotogravure printing machine
2000mm wide format
For PVC film

Product Description

1.Main Technical Parameters

A. Model (5 colors 9 units)	2000	Remarks
B. Printing Cylinder Dia (mm)	100-380	External Dia
C. Printing Width (mm)	2030/2000	Max/Effective
D. Printing Speed (m/min)	40-60
E. Register Precision (mm)	≤0.15
F. Unwinding Dia (mm)	600	Duplex
G. Rewinding Dia (mm)	1200	Surface coiling rewinding
H. Tension Control Range (kg)	2-30
I. Drying Method	Circulating air
J. Total Power (kw)	140
K. Weight (kg)	18000
L. Overall Dimension (M)	14.53.82.75	Removable Transport

2.Comprehensive Description

2000mm wide format rotogravure printing machine is custom models, specially designed for thick PVC printing. It equipped with central surface coiling rewinding, spring roller flattening, heavy doctor blade. Using for tablecloths, shower curtains and other PVC composite materials printing.

3. Product Features

1. Based on shaftless drive Technology, total printing unit can be increased or decreased according to customer’s requirement, number of colors can increase or decrease between 1-5, not affect the registration accuracy.

2. Unique external air circulation system, precise temperature control, specially designed for PVC

3. Each printing unit have independent control plate, can automatic correct color register error. Double electro-optical detection system can improve detection capabilities and adjust the speed of the machine

4. For more than 1400mm width models, center rewinding tension is difficult to ensure balance, we using a surface coiling rewinding to achieve without folds

5. Each printing unit is equipped with a spring roller for flattening

6. Printing pressure roller, traction pressure roller and doctor blade are all pneumatic type

7. Printing cylinder installation type: shaftless pneumatic

8. Circulating ink system to maximize ink savings, ensure the printing quality

9. Optional:

(1) Seven motor system

(2) Computer color register system

(3) Web Video device

(4) Ink pump

4. Details and photos

1. Every detail will be described in detail by text and pictures, as confirmation.

2. We provide customized manufacture according to customer demand.

3. manufactured in accordance with European CE safety standards.

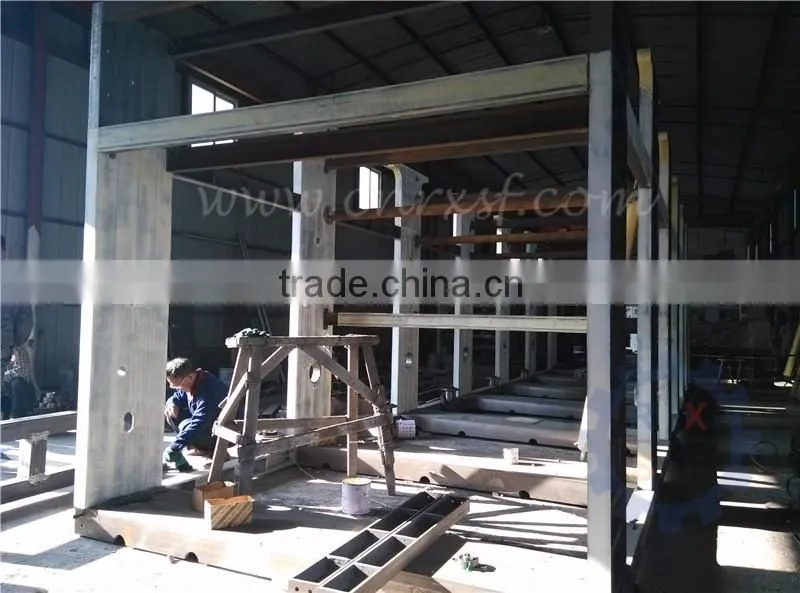

A. Full cast steel structure, dynamic balance adjustment, mechanical balance and ensure stable operation:

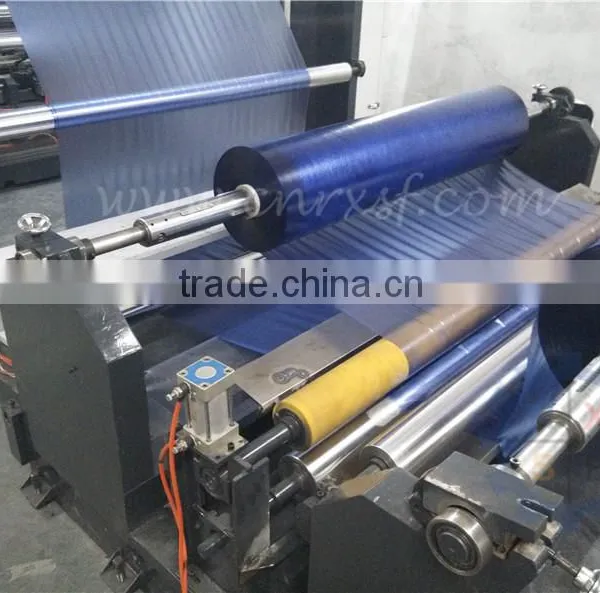

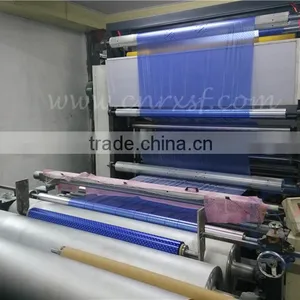

B. Three roller - double station centeral surface coiling rewinding design, without any wrinkles:

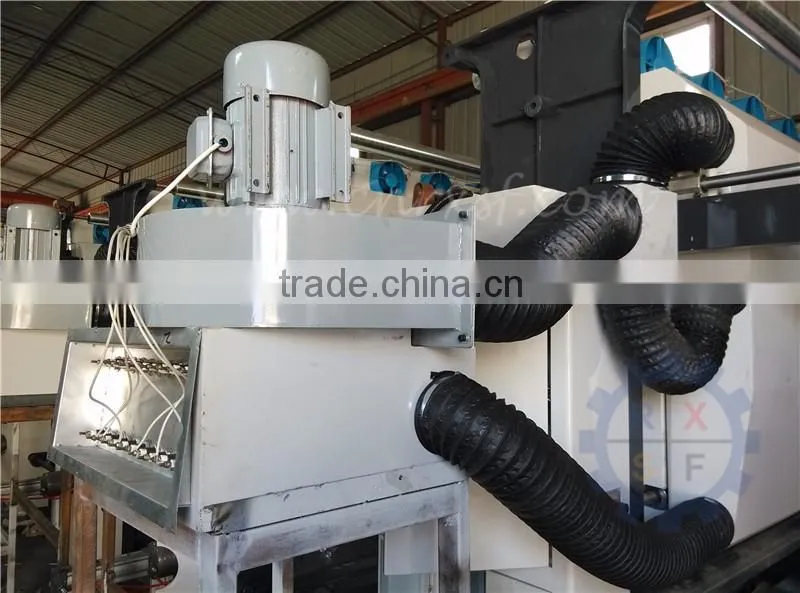

C. Unique external air circulation system, precise temperature control, specially designed for PVC:

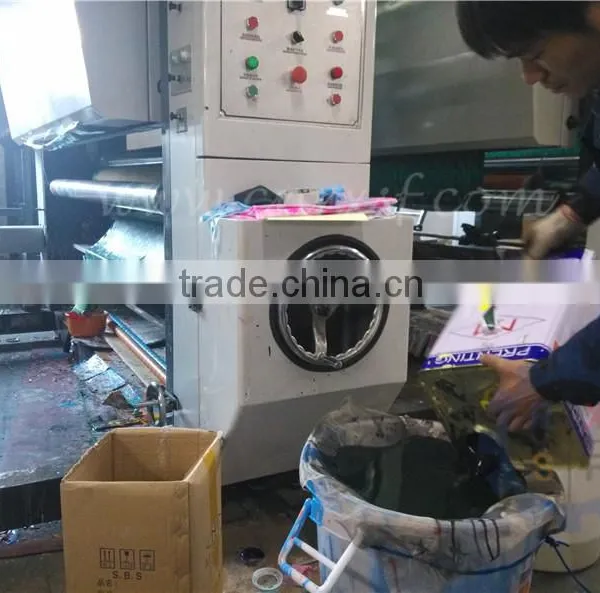

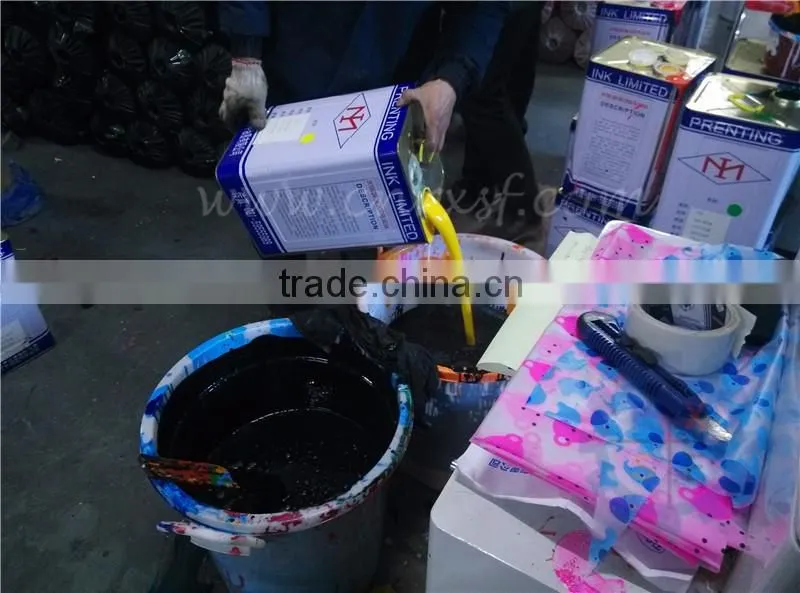

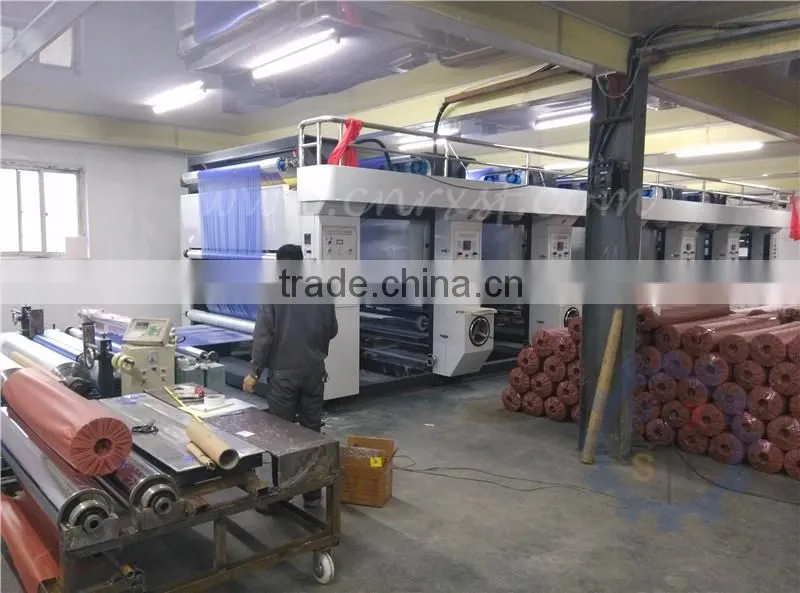

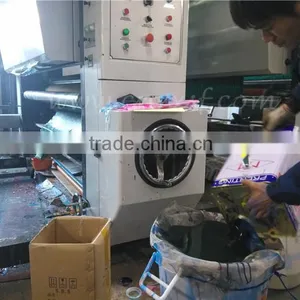

D. Photographed in the customer's workshop - Preparation of Ink:

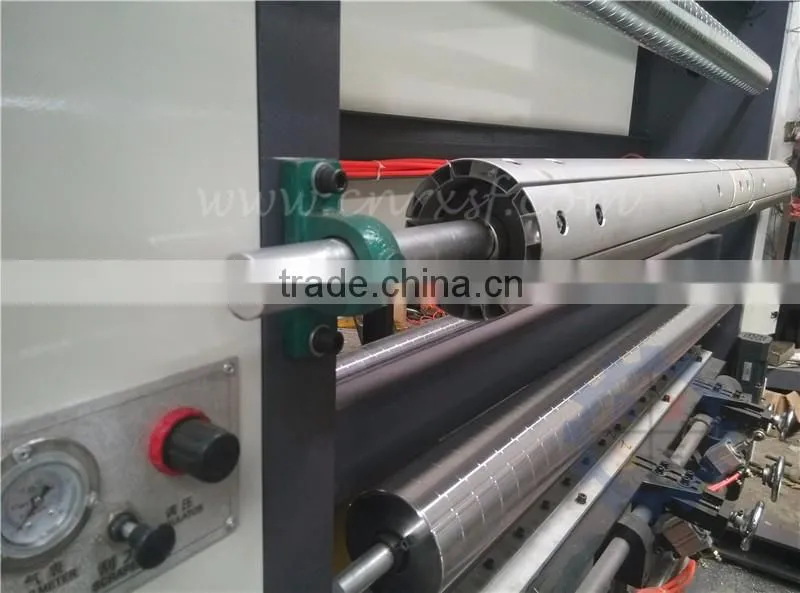

E. Unique innerspring flattening technology, with dynamic balancing guide rollers

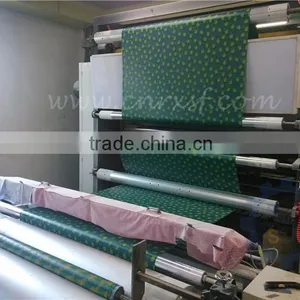

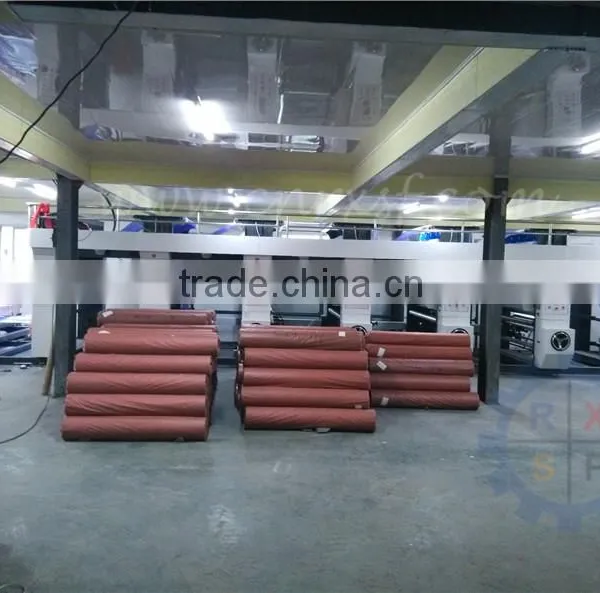

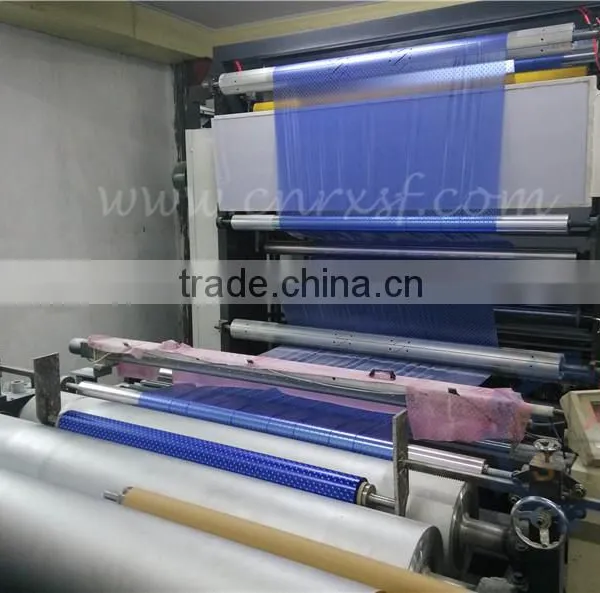

F. Photographed in the customer's workshop --PVC finished product:

Through this link, to view the video of the machine running:
https://youtu.be/VqDILGXmvWw

Packaging & Shipping

5. Packaging and shipping

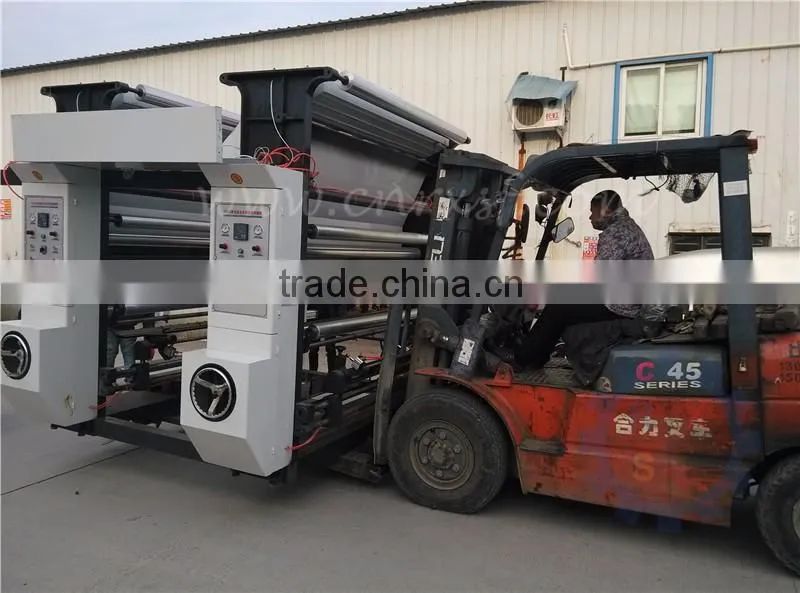

A. PE stretch film wrapping, corrugated cardboard protection, steel wire fixed:

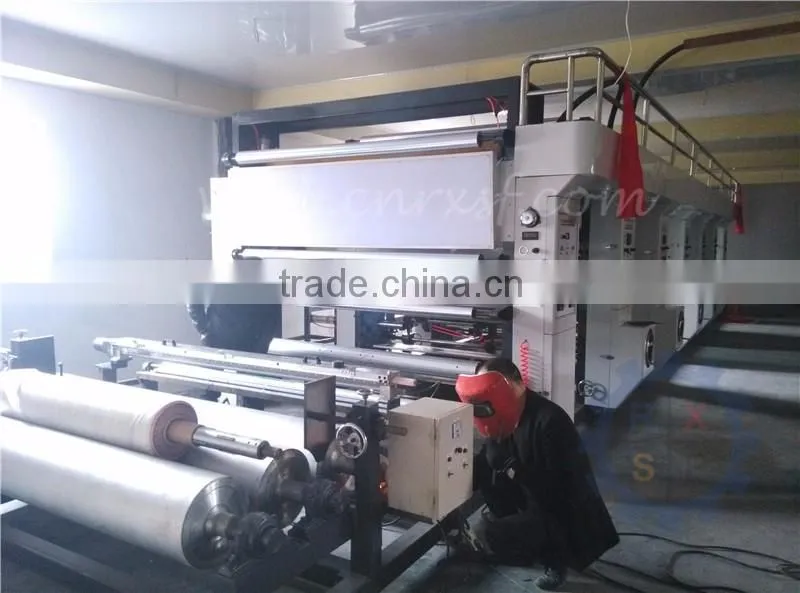

B. Engineers to provide on-site installation and commissioning:

C. We customize 2000mm printing cylinder for customers:

Our Services

6. Trading terms and after sales service

(1) We sold machines provide at least 360 days of quality assurance, during the warranty period, we assume full responsibility for the quality.

(2) The following three cases: beyond the quality guarantee period, improper operation and man-made damage, we still provide lifetime maintenance & guidance & commissioning of after-sales Service. However, engineers need to charge service fees.

(3) The non-standard machines that we manufacture according to customer needs, for non-standard parts, we offer customization and maintenance of lifetime, but the cost may be slightly higher than the standardized parts.

(4) Trading in FOB Term; the quoted price include the full price of the machine, transported to Ningbo Port fees, customs fees. Not include shipping and insurance charges. We can handle shipping on behalf of the purchaser, the cost paid separately by the purchaser.

(5) Earthquake, shipwrecks, war and other force majeure could be the grounds of exemption for delayed or cannot fulfill. Correspondingly, the other party's corresponding liability is also exempt.

(6) Installation and commissioning are part of after-sales service, at no additional charge. If the customer requests in writing, we will send qualified and experienced engineers. The fees borne by the customer, including but not limited to: transportation costs, accommodation costs, $ 100 per day in subsidies.

(7) Under any circumstances, customer information and contract details will be kept strictly confidential. Unless the court order or the consent of the client.

(8) Matters not covered in this document, refer to "United Nations Convention on Contracts for the International Sale of Goods (1980)" the relevant provisions solution. Both China and the United States are parties to the Convention.

7. Documents

A. Manuals, technical documentation, CE certificate (if required) will be sent along with the machine;

B. Bill of lading, invoices, certificates of origin (MFN certificate of origin), fumigation certificate (if required) will confirm with the client, and then sent via DHL or UPS:
