Galvanized Sheet Carbon Steel Mild Steel Sheet Metal Fiber Cutting Lasers

Specifications

sheet metal fiber cutting lasers
1.cutting area1.5X3m,2X4m,2X6m
2.laser power300w 500w 1kw 2kw
3.high speed
4.Low price

Galvanized Sheet Carbon Steel Mild Steel Sheet Metal Fiber Cutting Lasers



Fiber Laser Cutting Metal Advantages

(1) The fiber laser series are Golden Laser’s new line of metal precise processing equipment powered by fiber laser technology. The quality fiber laser beam results in faster cutting speeds and higher quality cuts compared to other cutting solutions. The key advantage of a fiber laser is its short beam wavelength (1,064nm). The wavelength, which is ten times lower than that of a conventional C02 laser, generates high absorption into metals. This makes the fiber laser become a perfect tool for cutting sheets of stainless steel, mild steel, aluminum, brass, etc.



(2)The efficiency of a fiber laser far exceeds traditional YAG or CO2 laser equipment. The fiber laser beam is capable of cutting reflective metals with much less energy as the laser is absorbed into the metal being cut. The unit will consume little to no energy when not active.



(3) Another advantage of fiber laser is the use of highly reliable single emitter diodes with projected lifetimes greater than 100,000 hours of continuous or pulsed operation.



(4) Golden Laser software allows for the capability to control power, modulation rate, pulse width and pulse shape giving the user full control of the lasers capabilities.

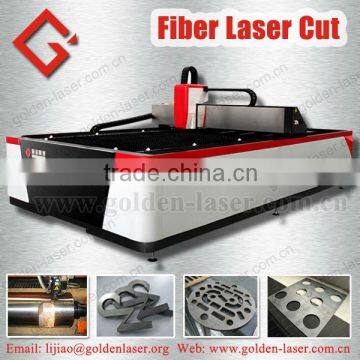

XJG-150300DT Fiber Laser Cutting Machine
Laser Type:	IPG Fiber laser /  Coherent fiber laser
Laser Power:	500W / 300W / 1000W / 2000W
Working area:	1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm
Working Table Structure:	Fixed / Pallet Working Table
Control System:	PMAC full-closed loop servo control
Driving Mode:	Double ball screw driving / Double gear rack driving
Idle/Processing Speed:	48m/min / 24m/min
Positioning Accuracy:	0.05mm
Cooling System:	High precision constant temperature water chiller
Protection System:	Enclosure protection
Laser Head:	Golden Laser / Precitec / Laser mech
Power Supply:	AC220V ± 5% 50 / 60Hz / AC380V ± 5% 50 / 60Hz
Total Power:	7.5KW / 6KW~20KW
Support Format:	PLT, DXF, BMP, AI, DST, DWG, etc.
Floor Space:	6.5mX3.2m (shuttle working table)
Other Standard Collocation:	Metal nesting software, dual-pressure gas route of 3 kind gas sources, dynamic focus, remote controller, etc.
Related Model:
XJG-6040 DT	Fiber Laser Cutting Machine 600X400mm
XJG-13090 DT	Fiber Laser Cutting Machine 1300X900mm
XJG-150300 DT	Fiber Laser Cutting Machine 1500X3000mm
GJMSJG-Series	YAG Laser Cutting Machine 600X400mm,1300X900mm,1300X2500mm,1500X3000mm



Fiber Laser Cutting Machine Features

♦The double ball screw closed-loop system and imported open-type CNC system enable high processing accuracy and high working efficiency during high speed cutting.



♦Standard collocation of 500W fiber laser generator and optional 300W-2000W fiber laser generator ensures low operation and maintenance cost.



♦Open structure is easy and convenient for material uploading and unloading.



♦Aiming at high speed cutting, we design and manufacture strengthened welded machine body after 2 times of aging process which ensures long-term accuracy and stability of performance.



♦Standard collocation of dual-pressure gas control system of 3 gas sources (high pressure air, nitrogen, oxygen) meets the processing requirement of all kinds of materials. Easy operation and low cost.



♦Standard collocation of automatic nesting software (including material management and optimized processing technology) and database of process parameters is provided for easy operation and simple management.



♦Optimized optical lens, specially designed nozzle and sensor technology realize smoother and more stable cutting.



Water-proof plastic film package with foam protection in each corner

Solid Seaworthy Wood Box Package with Steel Belt

For the big machine, we will order the special container to load
