Specifications
lazer cutter sheet metal1.Fixed/Pallet Work Table
2.Open/Closed type
3.IPG/Coherent laser
4.Fiber300W 500W 1KW
Fiber Lazer Cutter Sheet Metal/CNC Laser Cutting Device
How does laser machine work on metal ?
@ Fiber Laser Cutting Machine for Metal ,demo video: http://youtu.be/My4cYxW_mAc
@ YAG Laser Cutting Machine for Metal,demo video: http://youtu.be/1v4_dPme4Y4
@ CO2 Laser Cutting Machine for Metal,demo video: http://youtu.be/wn6Dw37Kd74
Advantages Comparison between Different Types of Laser Generators of GOLDEN LASER Metal Laser Cutting Machines:
|
Fiber Laser Generator |
YAG Lamp Pump Laser Generator |
CO2 RF Metal Laser Tube |
Power |
200W~2000W |
500W/650W/800W/1300W |
300W/500W |
Advantages |
Excellent laser beam quality, high cutting precision, high cutting speed, high efficient photoelectric conversion rate, low use-cost and maintenance cost, easy operation and convenient maintenance |
Compared with fiber laser generator and CO2 RF metal laser tube of the same power, it has lower price, thicker material cutting ability, wider application field and lower one-time investment. |
It can cut metal sheets and non-metal materials. Wider range of applicable materials. Adjustable output power. Maintenance free. Easy to operate and convenient to use. |
Applicable Materials |
All kinds of metal sheets and pipes |
All kinds of metal sheets and pipes |
All kinds of metal sheets, acrylic, wood board and other nonmetal materials |
Applicable Industry |
Sheet metal, hardware, watches, metal art craft works, etc. |
Sheet metal, kitchenware, metal letters and accessories & hardware, etc. |
Sheet metal, advertising, furniture and models, etc. |
Laser Cutting Machine Fiber Laser Cutting Advantages:
The fiber laser cutting series are Golden Laser’s new line of metal precise processing equipment powered by fiber laser technology. The quality fiber laser beam results in faster cutting speeds and higher quality cuts compared to other cutting solutions. The key advantage of a fiber laser is its short beam wavelength (1,064nm). The wavelength, which is ten times lower than that of a conventional C02 laser, generates high absorption into metals. This makes the fiber laser become a perfect tool for cutting sheets of stainless steel, mild steel, aluminum, brass, etc.
The efficiency of a fiber laser far exceeds traditional YAG or CO2 laser equipment. The fiber laser beam is capable of cutting reflective metals with much less energy as the laser is absorbed into the metal being cut. The unit will consume little to no energy when not active.
Another advantage of fiber laser is the use of highly reliable single emitter diodes with projected lifetimes greater than 100,000 hours of continuous or pulsed operation.
Golden Laser software allows for the capability to control power, modulation rate, pulse width and pulse shape giving the user full control of the lasers capabilities.

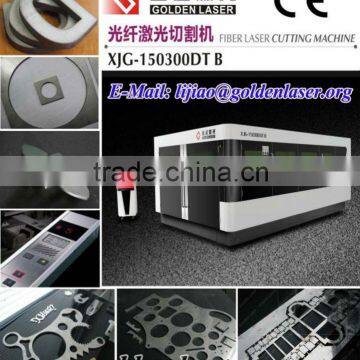

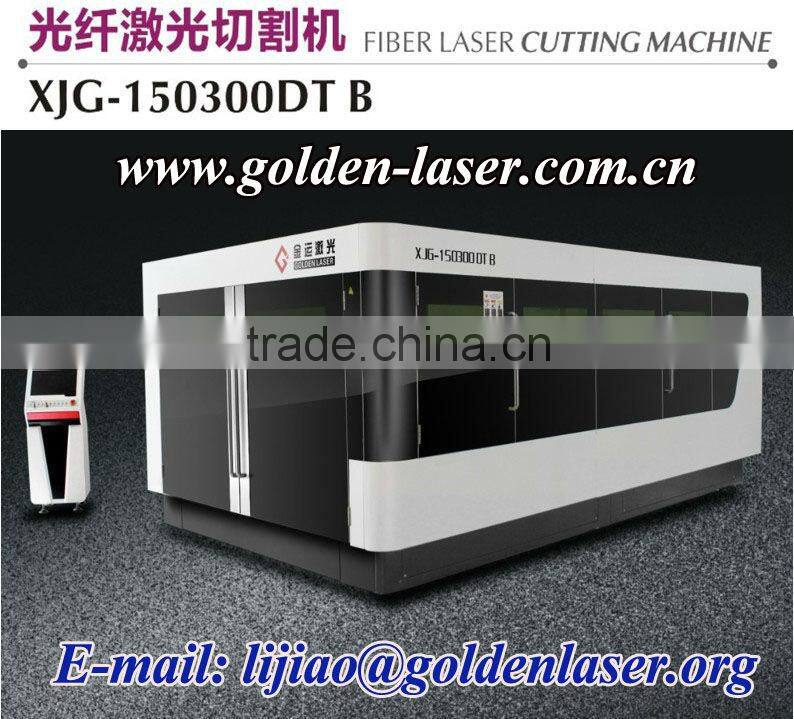

Recommend Model: XJG-150300DTB Fiber Laser Cutting Machine
Laser Cutting Machine Applicable Materials and Industry:
♣It is applicable to stainless steel, carbon steel, mild steel, alloy, aluminum, galvanized steel, iron, titanium sheet and other metal sheets and pipes (different power due to different materials)
♣It is applicable to sheet metals, kitchenware, hardware, advertising, decoration, gifts, lighting lamps, medical instruments and other field.
Laser Cutting Machine Specifications:
1.The double ball screw closed-loop system and imported open CNC system ensure high processing accuracy, high working efficiency and high speed.
2.Standard collocation of 500W fiber laser generator and optional 300W~2000W fiber laser generator. Low operation and maintenance cost and maximum long-term investment returns and profits.
3.Enclosure design meets CE standard, reliable and safe processing. Shuttle table/pallet working tables convenient for material uploading and unloading and further promotes working efficiency.
4.Aiming at high speed cutting, we design and manufacture strengthened welded machine body after 2 times of aging process which ensures long-term accuracy and stability of performance.
5.Standard collocation of dual-pressure gas control system of 3 gas sources (high pressure air, nitrogen, oxygen) meets the processing requirement of all kinds of materials. Easy operation and low cost.
6.Standard collocation of automatic nesting software (including material management and optimized processing technology) and database of process parameters is provided for easy operation and simple management.
7.Optimized optical lens, specially designed nozzle and sensor technology realize more smooth and more stable cutting.
XJG-150300DTB Fiber Laser Cutting Machine - Main Technical Data: | |
Laser Type: |
Fiber laser generator |
Laser Power: |
500W / 300W / 1000W / 2000W |
Working area: |
1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm |
Working Table Structure: |
Fixed /pallet Working Table |
Control System |
PMAC full-closed loop servo control |
Positioning Accuracy |
±0.05mm |
Driving Mode |
Double ball screw driving / Double gear rack driving |
Idle/Processing Speed: |
48m/min / 24m/min |
Cooling System: |
High precision constant temperature water chiller |
Protection System |
Enclosure protection |
Laser Head |
Golden Laser / Precitec / Laser mech |
Power Supply: |
AC220V ± 5% 50 / 60Hz / AC380V ± 5% 50 / 60Hz |
Total Power: |
7.5KW / 6KW~20KW |
Support Format: |
PLT, DXF, BMP, AI, DST, DWG, etc. |
Floor Space: |
5.8mX3.3m |
Other Standard Collocation: |
Metal nesting software, dual-pressure gas route of 3 kind gas sources, dynamic focus, remote controller, etc. |
Related Model: | |
XJG-6040 DT |
Fiber Laser Cutting Machine 600mmX400mm |
XJG-13090 DT |
Fiber Laser Cutting Machine 1300mmX900mm |
GJMSJG-Series |
YAG Laser Cutting Machine 600X400mm,1300X900mm,1300X2500mm,1500X3000mm |
Fiber Laser Cutting Machine for Metal Samples:
Laser Cutting Sheet Metal, Advertising Letters and Cabinet:

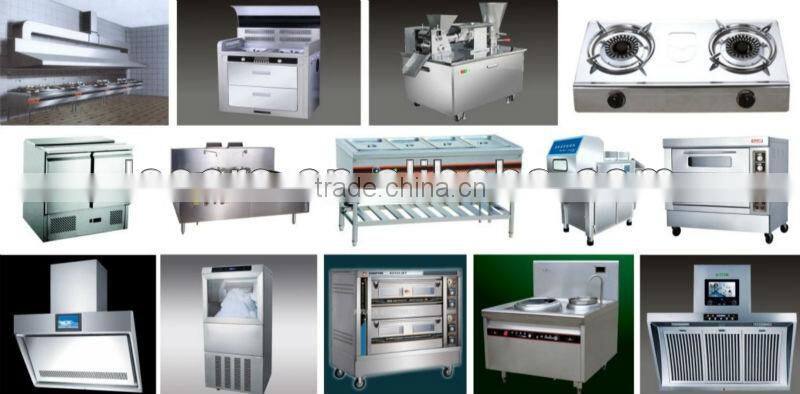

Laser Cutting Kitchen Ware & Spare Parts:

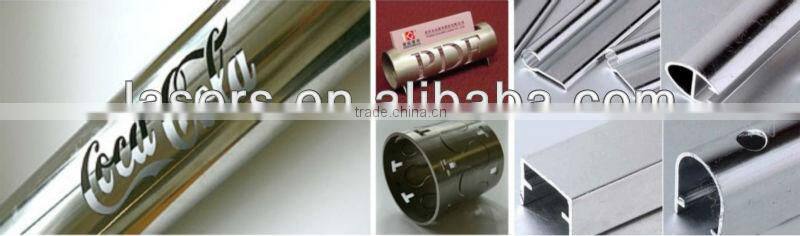

Laser Cutting Metal Tubes and Pipes:

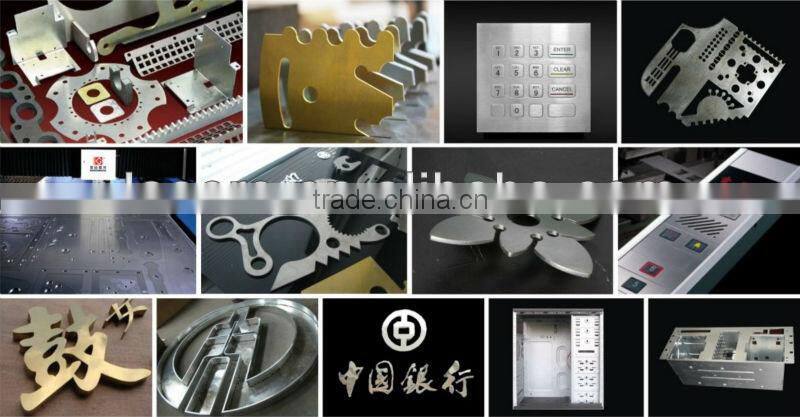

Laser Cutting Precision Metal Parts in the shape of Circle, Triangle, Octagonal and so on :
About Golden Laser:
Golden Laser is a manufacturer of different types (CO2, YAG, and Fiber) laser cutting, engraving systems, suitable for different industries - flexible textile, solid advertising, metal processing and Printing & packing. Whether you need a cost-effective machine or a more sophisticated automated solution. From the economical models to the large format processing systems, GoldenLaser has the laser machine solution that meets your requirements.
When inquiry for price list,working videos,package,delivery time and more specification,please let me know :
1,What kind of metal do you need to cut ?
2,What is the size and thickness ?
3,What is your business industry ? Are you an end user or reseller?
Attn: Ms Kelly Li
W-E-B:
E-m-a-i-l: lijiao(at)
Video link: /user/Goldenlaservideos
