| Model series | MCT-1313 Series | ||||
| MCT-1313-1000 | MCT-1313-1500 | MCT-1313-2000 | MCT-1313-3000 | MCT-1313-6000 | |
| Output Power | 1000w | 1500w | 2000w | 3000w | 6000w |
| type | continuous | ||||
| Cutting product accuracy | 0.03mm | ||||
| Minimum hole diameter for cutting through holes | 0.1mm | ||||
| Processing materials | Aluminum, copper, stainless steel metal materials | ||||
| Effective cutting size | 1300mm×1300m | ||||
| Fixing method | Pneumatic clamping and fixture support | ||||
| Drive system | Linear Motors |
| Positioning accuracy | ≦+/-0.008mm | ||||
| Repeatability | 0.008mm | ||||
| CCD alignment accuracy | 10um | ||||
| Cutting gas source | Air, nitrogen, oxygen | ||||
| Cutting line width and fluctuation | 0.02mm-0.1mm | ||||
| Cutting surface | Smooth, no burrs, no black edges | ||||
| Overall warranty period | 1 year (excluding wearing parts) | ||||
| weight | 3000Kg | ||||
| Maximum cutting thickness |
Stainless steel: 4MM (air) Aluminum plate: 2MM (air) Copper plate: 1.5MM (air) |
Stainless steel: 6MM (air) Aluminum plate: 3MM (air) Copper plate: 3MM (air) |
Stainless steel: 8MM (air) Aluminum plate: 5MM (air) Copper plate: 5MM (air) |
Stainless steel: 10MM (air) Aluminum plate: 6MM (air) Copper plate: 6MM (air) |
Stainless steel: 10MM (air) Aluminum plate: 8MM (air) Copper plate: 8MM (air) |

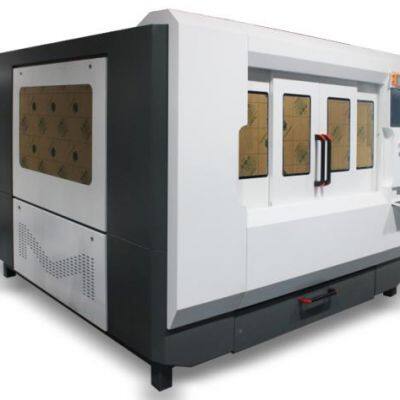

MCT-1313 high-speed precision cutting machine is suitable for precision deformation-free cutting of metals, electronic components, ceramic materials, crystals, carbide, and other precious metal materials. The equipment is driven by imported magnetic suspension linear motors, with high positioning accuracy; large speed regulation range; strong cutting ability; built-in circulating cooling system; preset feed speed; menu-based control; LCD display; users can freely define cutting methods: closed safety cutting room. It is one of the ideal equipment for industrial and mining precision processing enterprises and scientific research institutes to prepare high-quality specimens. It adopts a customized fully enclosed cutting control system and uses imported linear motors, which are high in precision, fast in speed, and can handle small products twice as fast as the screw platform; the marble platform frame is integrated with a reasonable structure, safe and reliable, imported linear motor platform, high-speed cutting head, and can be equipped with fiber lasers from any manufacturer; the CNC system adopts a dedicated laser control system and an imported non-contact height tracking system, which is sensitive and accurate, not affected by the shape of the workpiece, and can process any graphics: the guide rail adopts fully enclosed protection to reduce dust pollution, imported high-precision linear motor transmission, and imported high-precision linear guide rail guidance.
Good interactive control system expands the tolerance range and cutting width of processed parts, solves the disadvantage of overall smallness, and has better cutting shape: the cut section is smooth without burrs and deformation, and post-processing is easier: it has a safety alarm and automatically locks the light after removing the workpiece, which is highly safe: it has high positioning accuracy and sensitive response, and adopts shockproof design. There is no need to move the product manually, and cutting is carried out by automatic movement. A variety of power cutting heads can be configured to meet the cutting needs of different products.
