Steel grating welding machine manufacturer
Steel grating welding machine manufacturer
Steel grating welding machine manufacturer

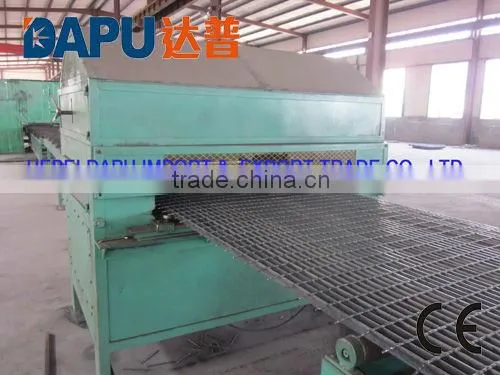

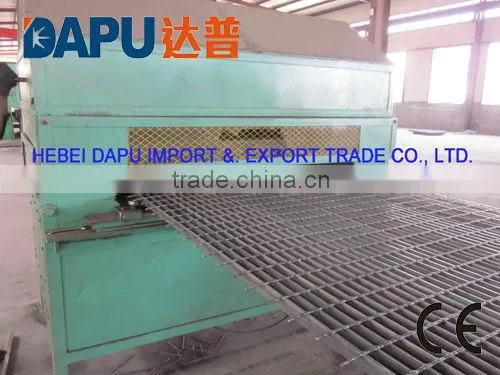

1.Steel grating welding machine is to finish bearing flat bar and twisted(round, square) cross bar horizontal to weld automatic production line of shaping alternately while being vertical, the products can reach hundreds of kinds of specifications.
2. The production line—18 meters long, 3.8 meters wide, according to the process divided into charging material position, welding position, cutting end head of cross position and finished product table position.
3. Weld automatically, step automatically to the setting position and cut end head automatically,
4. Hand over the finished product to the depositing area by artificial operation with draw material car.
5. 1000Hz medium frequency—extensive current output, accurate dynamic and static adjusting, electrode heat and mechanical pressure reducing. The electrode wear and tear can be 50 percent less.
Bearing flat bar space and cross bar space—adjustable
Adopt Solid joints—no burning marks after welding
Production: 60-100m^2/8 hours
Power supply: 100kw (distance to the machine—within 50 m)
Transformer: 150kw*2sets
Wire feed way: Flat iron: put by manual work
Twisted steel: pre-cut and put automatically
Cutting way: by manual cutting machine
Notice: 1.Post processing: galvanizing; cutting: shaping as customers’ needs
2. Air-cylinder supports energy for drawing mesh
3. Hydraulic machine controls two welding heads
Input power |
380V 50Hz |
|
Grating length |
6m |
|
Grating width |
1m |
|
Bearing flat bar |
thickness |
2.5-7mm |
width |
25-75mm |
|
Cross bar dia. |
5-8mm |
|
Bearing flat bar space |
25-60mm (customized) |
|
Cross bar space |
38-160mm adjustable |
|
Max. pressure |
160T |
|
Welding transformer |
1000KVA |
|
Welding frequency |
1000Hz-intermediate frequency |
|
Power transformer needed |
630KVA |
|
Rated welding electric current |
AC 200KA |
|
Max welding electric current |
AC300KA |
|
Welding speed |
6-9 times/minutes(2 cross bar each time) |
|
Overall dimension |
18000*3800*4800mm |
|
Weight |
13T |
|
