Specifications
Pressure steel bar grating welding machine1.FB20*2mm-Fb100mm*10mm
2.Twsted bar:5-10mm
3.Grating size:1.2*7.5m
4.Big type
Pressure steel bar grating welding machine
Contact Person: Bruce Ma
Skype: dapumachine
QQ: 1228185359
Mobile: 0086-15930181601 (whatsapp)
Pressure steel bar grating welding machine
1. Our grating machine adopts advanced medium frequency (1000Hz) technology.
2. Its instantaneous electric current is very strong and welding time is short, so it can save approximately 30%-50% power energy than low frequency (50Hz) grating machine.
3. Moreover in contrast to low frequency (50Hz) grating machine, its matched transformer can even save 40%-50%KVA.
4. The machine can weld two bars per time.
5. The twisted bars are fed automatically instead of fed by manual work.
Technical Parameters
1. Bearing bar range: FB20*2mm-Fb100mm*10mm |
2. Cross bar range: 5*5-10*10mm (twisted square steel) |
3. Welding panel width: max.1.2m; length: max.7.5m |
4. Cross bar feed way: automatic |
5. Welding times: 8-9s/times (It can weld 2 bars one time.) |
6. Weld Material: low carbon steel or stainless steel |
7. Input the power: 3-Phase,380V/220V/415V/440V 50Hz or 60Hz |
8. Welding transformer: 250kva*8pcs |
9. Max pressure: 160Ton |
10. Welding frequency: 1000Hz |
11. Rated welding for the electric current: 200KA |
12. Weld the electric current the most largely:350KA |
13. Auxiliary equipments like front roller, rear roller and cutting machines are included |

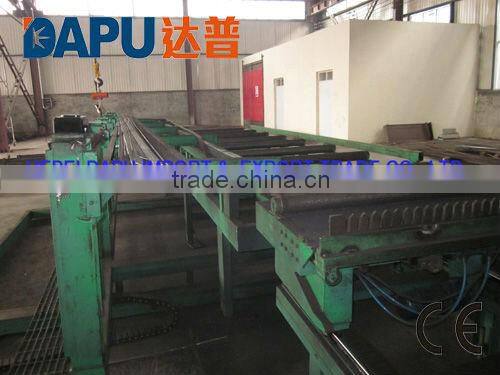

Bearing flat bar feeding device
Bearing flat bar feeding

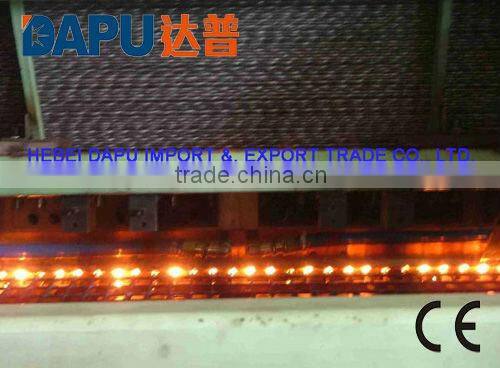

Welding

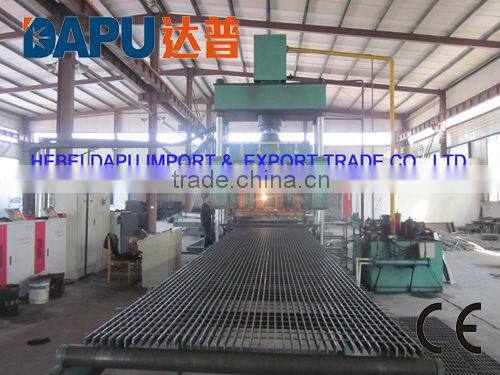

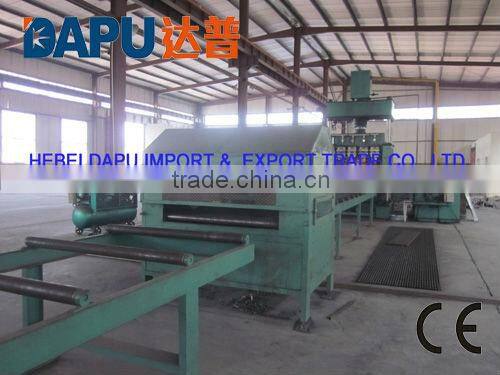

Production

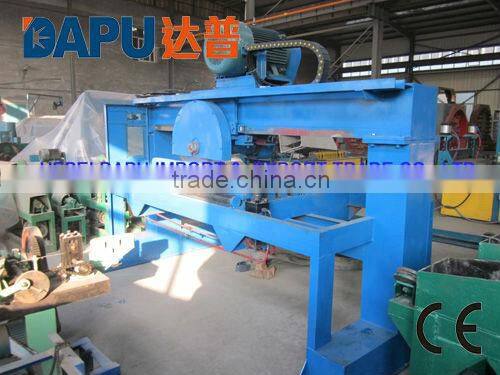

Grating cutting saw machine

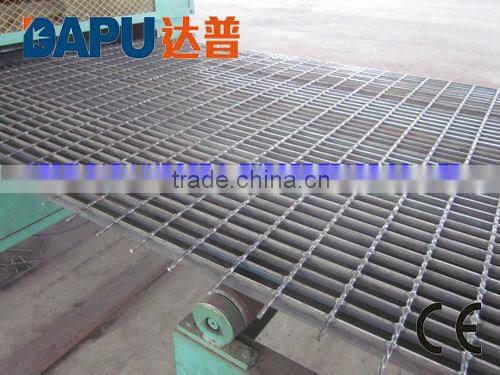

Finished steel gratings
