Specifications
Steel bar grating welding machine1.Flat bar:2.5*25-5*65mm
2.Twisted bar:5-8mm
3.Grating size:1m*6m
4.Weld 2 spots one time

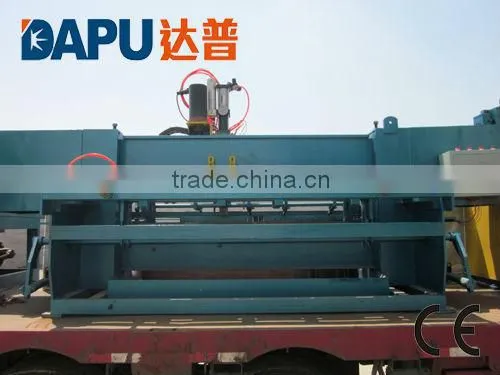

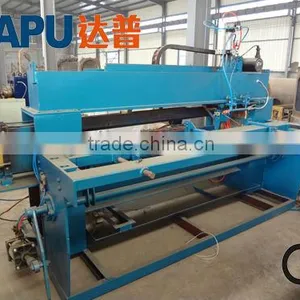

Steel bar grating welding machine
Contact Person: Bruce Ma
Skype: dapumachine
QQ: 1228185359
Mobile: 0086-15930181601 (whatsapp)

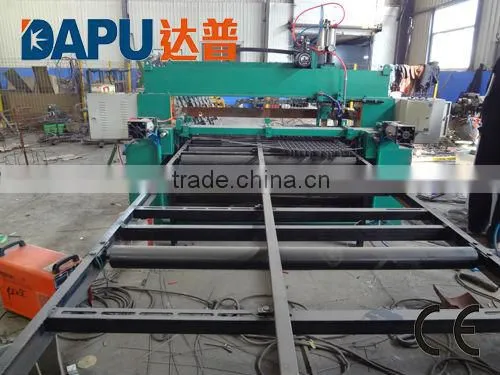

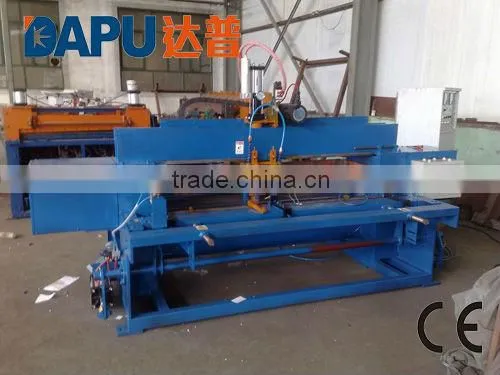

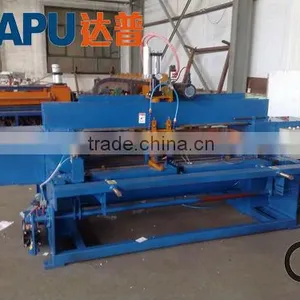

Steel bar grating welding machine
1. The machine adopts technology of power electronic synchronous control; the welding time and separate-welding are combined by digital integrated circuits.
2. The machine adopts hydraulic device to control welding electrode; it can weld two spots one time when flat bar thickness is below 5mm.
3. The machine adopts imported pneumatic elements---two air-cylinders to supply energy for drawing mesh part.
4. The machine adopts water cooling device to lower the temperature of welding spots to guarantee the welding quality.
5. The control precision are very accurate, operate smoothly; the welding spots are very firm.
6. It has characteristic of pressure uniformity, few malfunction and long service life.
Steel bar grating welding machine
Technical Parameters
1. Bearing bar range: 2.5*25-5*65mm |
2. Cross bar range: 5-8mm (twisted square steel) |
3. Welding panel width: 1.2m; length: 6m |
4. Production Capacity: 70-100m^2/shift (8hours) |
5. Pitch of flat bar: 25,30,40,50,60mm |
6. Pitch of cross bar: 50,100mm |
7. Welding transformer: 200kva |
8. Overall size: 16*2.5*1.5m |
9. Weight: 4000kg |

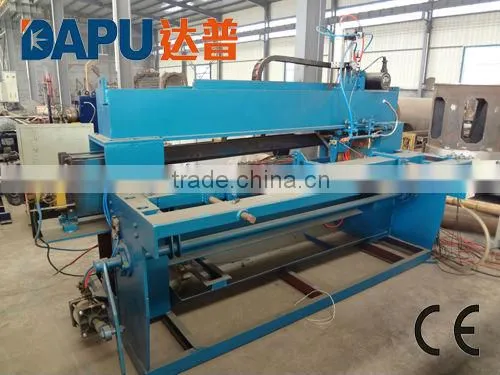

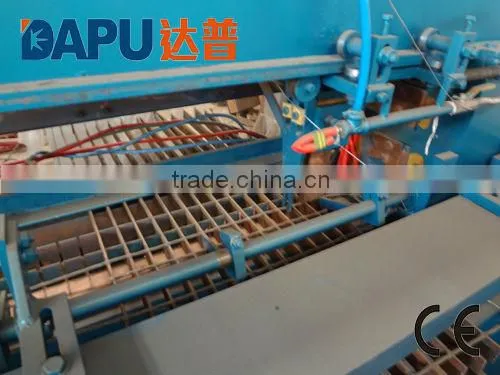

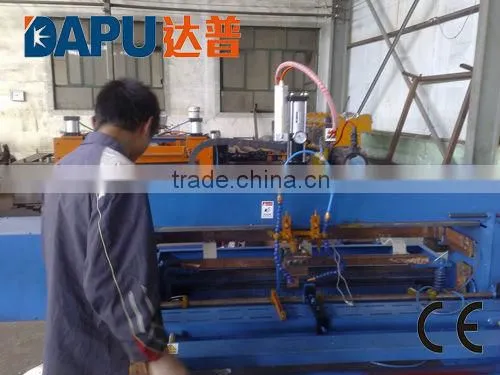

Welding part

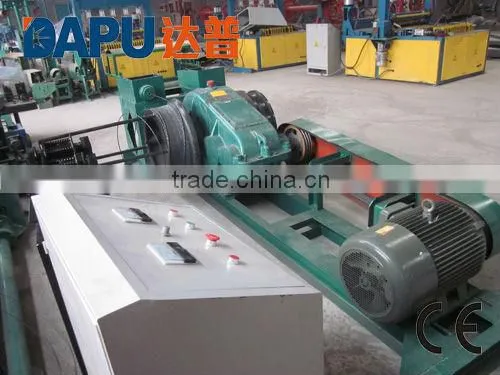

Twisted square bar drawing machine

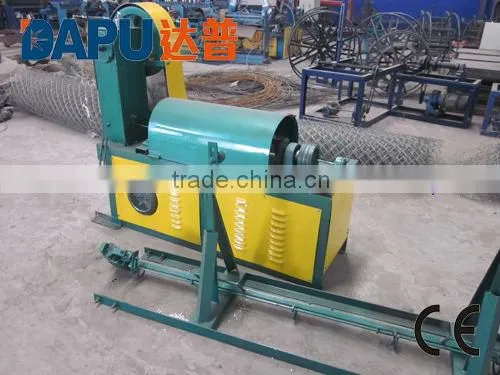

Twisted square bar straightening and cutting machine
Grating cutting machine by manual

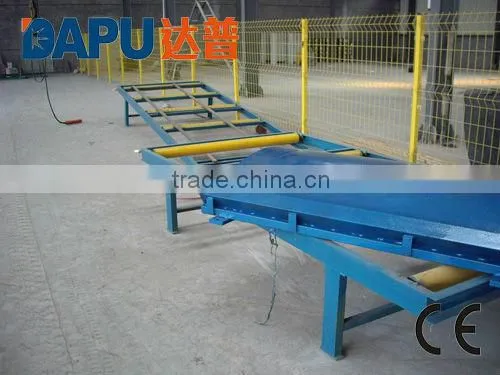

Bracket and grating flatten table
Steel gratings
