Cheapest saving energy Cement Industrial ball grinding machine price list
I. Description of Ball grinding machine :
Ball mill is the material being broken, and then to smash the key equipment.It is widely used in cement, Portland products, new building material, refractory material, fertilizer, 52555 black and non-ferrous metal ore dressing and glass ceramics production industry, of all kinds of ores and other materials may be grinding of dry or wet grinding.Ball mill is suitable for all kinds of ores and other materials, is widely used in mineral dressing, building materials and chemical and other industries, can be divided into dry type and wet type two kinds of grinding way.According to the row of ore in different ways, can be divided into grid type and overflow type two kinds.
II. Working Principle of Ball grinding machine:
It is horizontal type and cylinder rotating device, has two cabins, grate energy saving ball mill, and its outside drives along gear. The material enters spirally and evenly the first warehouse of the milling machine along the input material hollow axis by input material device, In this warehouse, there is a ladder scale board or ripple scale board, and different specification steel balls are installed on the scale board, when the barrel body rotates and then produces centrifugal force, at this time, the steel ball is carried to some height and falls to make the material grinding and striking. After grinding, coarsely in the first warehouse, the material then enters into the second warehouse for regrinding with the steel ball and scale board In the end, The powder is discharged by output material board and the end products are completed.
III. Main Features of Ball grinding machine :
1,The ball mill is made up of feeding part, discharging part, gyre part, transmission part, (decelerator, small transmission gear, generator, electrical control) and so on.
2,The hollow axis adopts the cast steel and the lining can replace, the rotating big gear processes in the way of casting rolling gear.
3,The cylinder is wearable well and bears wearable lining board.
IV.Main Technical Parameters:
Type |
Cylinder rotary speed(r/min) |
Ball load(t) |
Feeding size(mm) |
Discharge size(mm) |
Capacity(t/h) |
Motor power (kw) |
Weight (t) |
900×1800 |
36-38 |
1.5 |
≤20 |
0.075-0.89 |
0.65-2 |
18.5 |
4.6 |
900×3000 |
36 |
2.7 |
≤20 |
0.075-0.89 |
1.1-3.5 |
22 |
5.6 |
1200×2400 |
36 |
3 |
≤25 |
0.074-0.6 |
1.5-4.8 |
30 |
12 |
1200×3000 |
36 |
3.5 |
≤25 |
0.074-0.4 |
1.6-5 |
37 |
12.8 |
1200×4500 |
32.4 |
5 |
≤25 |
1.6-5.8 |
55 |
13.8 |
|
1500×3000 |
29.7 |
7.5 |
≤25 |
2-5 |
75 |
15.6 |
|
1500×4500 |
27 |
11 |
≤25 |
3-6 |
90 |
21 |
|
1500×5700 |
28 |
12 |
≤25 |
3.5-6 |
130 |
24.7 |
|
1830×3000 |
25.4 |
11 |
≤25 |
4-10 |
130 |
28 |
|
1830×4500 |
25.4 |
15 |
≤25 |
4.5-12 |
155 |
32 |
|
1830×6400 |
24.1 |
21 |
≤25 |
6.5-15 |
180 |
34 |
|
1830×7000 |
24.1 |
23 |
≤25 |
7.5-17 |
210 |
36 |
|
2100×3000 |
23.7 |
15 |
≤25 |
6.5-36 |
210 |
34 |
|
2100×4500 |
23.7 |
24 |
≤25 |
8-43 |
245 |
42 |
|
2100×7000 |
23.7 |
26 |
≤25 |
8-48 |
280 |
50 |
|
2200×4500 |
21.5 |
27 |
≤25 |
9-45 |
280 |
48.5 |
|
2200×6500 |
21.7 |
35 |
≤25 |
14-26 |
370 |
52.8 |
|
2200×7000 |
21.7 |
35 |
≤25 |
15-28 |
380 |
54 |
|
2200×7500 |
21.7 |
35 |
≤25 |
15-30 |
380 |
56 |
|
2400×4500 |
21 |
30 |
≤25 |
8.5-60 |
320 |
65 |
|
2700×4000 |
20.7 |
40 |
≤25 |
12-80 |
400 |
94 |
|
2700×4500 |
20.7 |
48 |
≤25 |
12-90 |
430 |
102 |
|
3200×4500 |
18 |
65 |
≤25 |
25-130 |
800 |
137 |

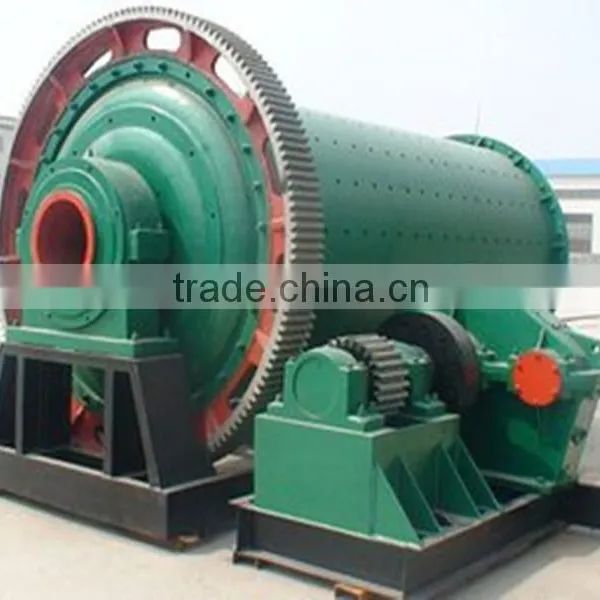

Ball grinding machine in working shop photos
Before sale:
Be a good consultant and assistant of our customer to ensure our customer's investment will be rewarded with great profit.
1.Select the right model of equopment for customer.
2.Our service engineers would be ready for service 24 hours per day.
3.We will answer your qustion any time
4.Provide training for customer's technician
During sale:
Respect every customer and provide them convenience and reliability.We are devoted to help customer gain more.
1.Inspect before accept the products sent by us.
2.Assist our customer to make a constrution plan.
After sale:
1.The installation and testing of equipment.
2.We would be ready for service 24 hours per day to accept your feedback .
3.we would provide maintaince if our product have problem.
Leadtime:
15-30 days after confirm the order
Packing:
export standard
Zhengzhou YinHai Mining Machinery equipment Co., Ltd. is a hi-tech, engineering group. We are specialized in the research, development, and production of industrial crushing, powder grinding, mineral processing equipments and other related devices. Our products have been sold to 120 countries and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future. We hold "Pursuing the YinHaiTechnology and Quality" as our management concept all the time. Relying on absorbing world leading crushing and powder processing technology, advanced management and quality control system, as well as our full efforts, YINHAI has earned high reputation among our customers.
How about the quality of our machine?
Our machine manufactured strictly according to national and international standard.
We take a test on every machine before delivery.
How about price of machine?
We can give the lowest price than market one.
We do quotation of machine as soon as possible for any custome.
Discount of machine can be given according to quantity.
How about the after-sale service of your company?
Our engineer is aviliable to installation machine overseas.
The guarantee period of our machine is one year.
Spare parts will supply at any time.
Note: Above technical parameters are just for reference, if you want to get more detailed information or if you have any trouble in selecting the suitable machine, please contact us.
