Chian Direct Supplier MB Rod Mill / Rod Grinding Mill With Rolling Bearing Structure

Chian Direct Supplier MB Rod Mill / Rod Grinding Mill With Rolling Bearing Structure thumbnail-1
Chian Direct Supplier MB Rod Mill / Rod Grinding Mill With Rolling Bearing Structure thumbnail-2

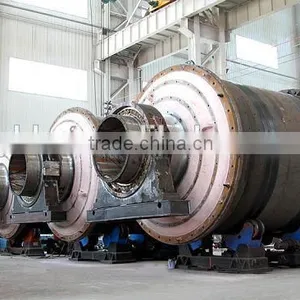

Chian Direct Supplier MB Rod Mill / Rod Grinding Mill With Rolling Bearing Structure thumbnail-3

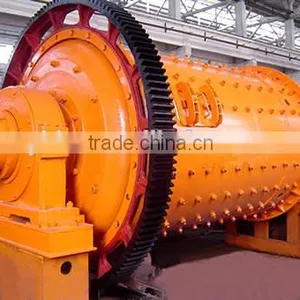

Chian Direct Supplier MB Rod Mill / Rod Grinding Mill With Rolling Bearing Structure thumbnail-4
Chian Direct Supplier MB Rod Mill / Rod Grinding Mill With Rolling Bearing Structure photo-1

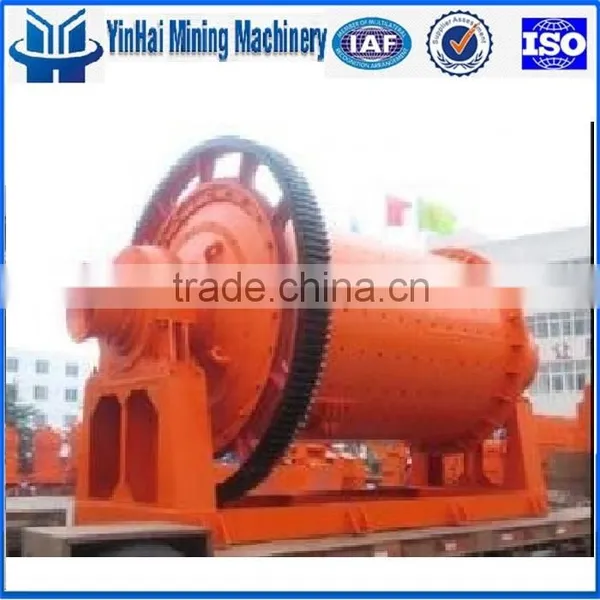

Chian Direct Supplier MB Rod Mill / Rod Grinding Mill With Rolling Bearing Structure photo-2

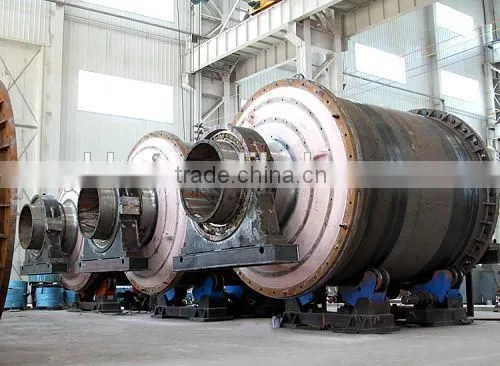

Chian Direct Supplier MB Rod Mill / Rod Grinding Mill With Rolling Bearing Structure photo-3

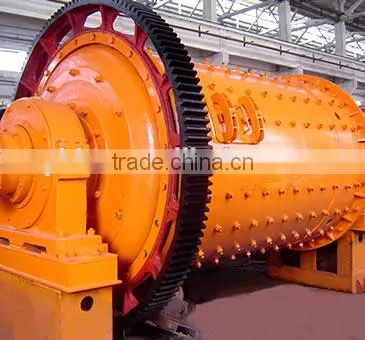

Chian Direct Supplier MB Rod Mill / Rod Grinding Mill With Rolling Bearing Structure photo-4
US$ 39,850 - 48,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Rod mill
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Zhengzhou Yinhai Mining Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in china
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Rod mill
Motor Type AC Motor
Power(W) 132kw
Capacity(t/h) 20-9.5t/h
Place of Origin Henan, China
Brand Name YinHai
Model Number 1800*3000
Dimension(L*W*H) 1800*3000mm
Weight 29.8t
Certification ISO9001:2008
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Chian direct supplier MB Rod mill / Rod grinding mill with rolling bearing structure



Introduction of rod mill

At present, the sand maker-rod mill is the most effective crushing machine. Its performance has achieved the international standard. And it is one of the gravel equipments for building widely used in the gravel industry. It is mainly used for processing or crushing the feldspar, quartz, minerals and other raw materials, and it is also suitable for finely or secondarily crushing the various tough or brittle materials, such as grinding material, refractory material, cement, steel shot, pulverized slag, Copper Ore, iron ore, gold ore, concrete aggregate, bituminized aggregate. Now it is a most advanced sand-maker in the world.





Working Principles of rod mill

Depending on the reduction box and the reduction of the peripheral big gear wheel, the motor rotary drives the cylinder rotating or the motor drives the cylinder rotating directly by the peripheral big gear wheel. And inside the cylinder, there’s an appropriately grinding medium-steel bar .The steel bar will drop after reaching a certain height with friction and the centrifugal force. And the material will be hit and grinded to achieve the purpose of making sand.



1.Cylinder 2.End cover 3.Big gear 4.Bearing 5.6:Liners 7.Feeder 8.Feeding pipe ,9.Outlet pipe .10 inlet hole .





Specifications of rod mill

Model Barrel size(mm) Effective volume(m3) loading capacity(t) Rotating speed(r/min) Pow(kw) Discharge size(m) Capacity(t/h) Weight(t)
MB0918 φ900×1800   2.3 29 22 2.5-0.2 6-1.6 6.2
MB0924 φ900×2400   3.1 29 30 2.5-0.2 10-2.9 6.6
MB1224 φ1200×2400   6.5 27 55 2.5-0.2 5~13 13.5
MB1530 φ1500×3000 5 8 23 75 2.5-0.2 12-5.5 16.71
MB1830 φ1800×3000 6.5 17 22.8 132 2.5-0.2 20-9.5 29.8
MB2122 φ2100×2200 6.7 18 20.9 160 2.5-0.2 12~17 42.5
MB2130 φ2100×3000 9.2 25 20.9 160 2.5-0.2 30-13 43.9
MB2136 φ2100×3600 11 28 20.9 200 2.5-0.2 35-14.8 49.4
MBZ2136 φ2100×3600 11 32.5 20.9 210 -5 61.5-43 49.9
MB2140 φ2100×4000 12.2 31 20.9 220 2.5-0.2 38-17 50.3
MB2145 φ2100×4500 13.8 35 20.9 250 2.5-0.2 43-19 51.8
MB2430 φ2400×3000 12.2 31 19 250 2.5-0.2 47-22 56
MBZ2430 φ2400×3000 12.2 31 19 250 -5 73-52 58.3
MB2436 φ2400×3600 14.6 37 19 280 2.5-0.2 55-26 61
MBZ2436 φ2400×3600 14.6 37 19 280 -5 84-60 62.4
MB2736 φ2700×3600 18.4 42 17.5 355 5-0.8 150-45 81.8
MB2740 φ2700×4000 20.5 47 17.5 400 5-0.8 165-50 84.3
MB3040 φ3000×4000 25.9 50 16.2 500 5-0.8 206-62 130
MB3245 φ3200×4500 33 56 15.5 630 5-0.8 228-70 138
MB3645 φ3600×4500 40.8 78 14.5 800 5-0.8 270-83 168
MB3654 φ3600×5400





Leadtime:

15-30 days after down payment

Packing:

standard export package.



Before sale:

Be a good consultant and assistant of our customer to ensure our customer's investment will be rewarded with great profit.

1.Select the right model of equopment for customer.

2.Our service engineers would be ready for service 24 hours per day.

3.We will answer your qustion any time

4.Provide training for customer's technician

During sale:

Respect every customer and provide them convenience and reliability.We are devoted to help customer gain more.

1.Inspect before accept the products sent by us.

2.Assist our customer to make a constrution plan.

After sale

1.The installation and testing of equipment.

2.We would be ready for service 24 hours per day to accept  your  feedback .

3.we would provide maintaince if our product have problem.





Zhengzhou YinHai Mining Machinery equipment Co., Ltd. is a hi-tech, engineering group. We are specialized in the research, development, and production of industrial crushing, powder grinding, mineral processing equipments and other related devices. Our products have been sold to 120 countries and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future. We hold "Pursuing the YinHaiTechnology and Quality" as our management concept all the time. Relying on absorbing world leading crushing and powder processing technology, advanced management and quality control system, as well as our full efforts, YINHAI has earned high reputation among our customers.



How about the quality of our machine?

Our machine manufactured strictly according to national and international standard.
We take a test on every machine before delivery



How about price of machine?
We can give the lowest price than market one.
We do quotation of machine as soon as possible for any custome.
Discount of machine can be given according to quantity.







  Note: Above technical parameters are just for reference, if you want to get more detailed information or if you have any trouble in selecting the suitable machine, please contact us.
