MB1224 small Rod milling machine for grinding various stones
I. Introduction of Rod milling machine :
The rod mill is composed of a cylinder body of the grinding body is named for the loading of steel bar, rod mill is generally used for wet overflow type, can be used as an open circuit grinding, widely used in artificial sand stone, ore dressing plant, chemical plant in the power sector level grinding
Lattice drum in the discharging end with a hollow shaft neck of Turgene, with the inner sleeve of the bearing and the discharge lattice. Discharge lattice by lattice liner, liner and dustpan shaped lining board etc..
II.Working Principles of rod milling machine :
Depending on the reduction box and the reduction of the peripheral big gear wheel, the motor rotary drives the cylinder rotating or the motor drives the cylinder rotating directly by the peripheral big gear wheel. And inside the cylinder, there’s an appropriately grinding medium-steel bar .The steel bar will drop after reaching a certain height with friction and the centrifugal force. And the material will be hit and grinded to achieve the purpose of making sand.
1.Cylinder 2.End cover 3.Big gear 4.Bearing 5.6:Liners 7.Feeder 8.Feeding pipe ,9.Outlet pipe .10 inlet hole .
III.Specifications of rod milling machine :
| Model | Barrel size(mm) | Effective volume(m3) | loading capacity(t) | Rotating speed(r/min) | Pow(kw) | Discharge size(m) | Capacity(t/h) | Weight(t) |
| MB0918 | φ900×1800 | 2.3 | 29 | 22 | 2.5-0.2 | 6-1.6 | 6.2 | |
| MB0924 | φ900×2400 | 3.1 | 29 | 30 | 2.5-0.2 | 10-2.9 | 6.6 | |
| MB1224 | φ1200×2400 | 6.5 | 27 | 55 | 2.5-0.2 | 5~13 | 13.5 | |
| MB1530 | φ1500×3000 | 5 | 8 | 23 | 75 | 2.5-0.2 | 12-5.5 | 16.71 |
| MB1830 | φ1800×3000 | 6.5 | 17 | 22.8 | 132 | 2.5-0.2 | 20-9.5 | 29.8 |
| MB2122 | φ2100×2200 | 6.7 | 18 | 20.9 | 160 | 2.5-0.2 | 12~17 | 42.5 |
| MB2130 | φ2100×3000 | 9.2 | 25 | 20.9 | 160 | 2.5-0.2 | 30-13 | 43.9 |
| MB2136 | φ2100×3600 | 11 | 28 | 20.9 | 200 | 2.5-0.2 | 35-14.8 | 49.4 |
| MBZ2136 | φ2100×3600 | 11 | 32.5 | 20.9 | 210 | -5 | 61.5-43 | 49.9 |
| MB2140 | φ2100×4000 | 12.2 | 31 | 20.9 | 220 | 2.5-0.2 | 38-17 | 50.3 |
| MB2145 | φ2100×4500 | 13.8 | 35 | 20.9 | 250 | 2.5-0.2 | 43-19 | 51.8 |
| MB2430 | φ2400×3000 | 12.2 | 31 | 19 | 250 | 2.5-0.2 | 47-22 | 56 |
| MBZ2430 | φ2400×3000 | 12.2 | 31 | 19 | 250 | -5 | 73-52 | 58.3 |
| MB2436 | φ2400×3600 | 14.6 | 37 | 19 | 280 | 2.5-0.2 | 55-26 | 61 |
| MBZ2436 | φ2400×3600 | 14.6 | 37 | 19 | 280 | -5 | 84-60 | 62.4 |
| MB2736 | φ2700×3600 | 18.4 | 42 | 17.5 | 355 | 5-0.8 | 150-45 | 81.8 |
| MB2740 | φ2700×4000 | 20.5 | 47 | 17.5 | 400 | 5-0.8 | 165-50 | 84.3 |
| MB3040 | φ3000×4000 | 25.9 | 50 | 16.2 | 500 | 5-0.8 | 206-62 | 130 |
| MB3245 | φ3200×4500 | 33 | 56 | 15.5 | 630 | 5-0.8 | 228-70 | 138 |
| MB3645 | φ3600×4500 | 40.8 | 78 | 14.5 | 800 | 5-0.8 | 270-83 | 168 |
| MB3654 | φ3600×5400 |

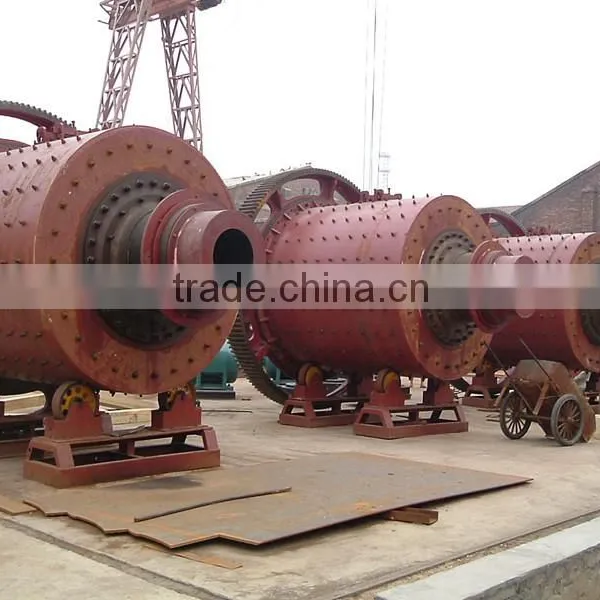

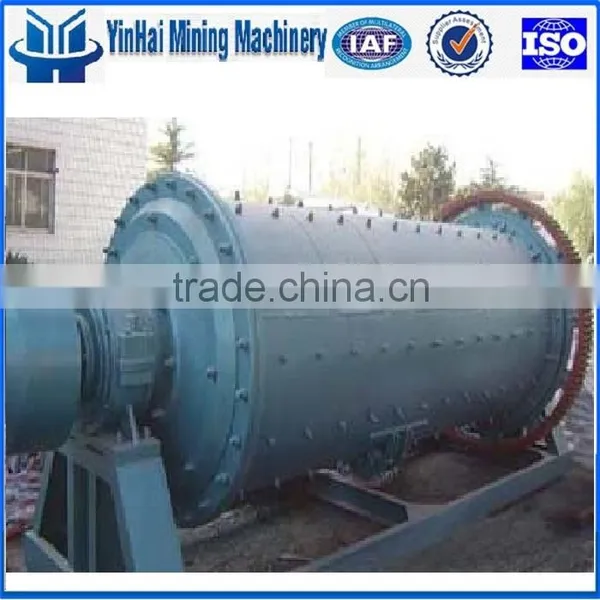

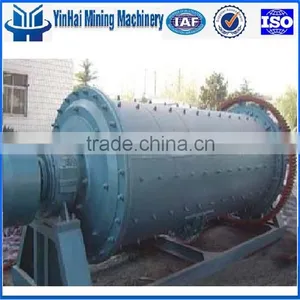

Rod milling machine photos
Rod milling machine working photo
Leadtime:
15-30 days after down payment
Packing:
standard export package.
Before sale:
Be a good consultant and assistant of our customer to ensure our customer's investment will be rewarded with great profit.
1.Select the right model of equopment for customer.
2.Our service engineers would be ready for service 24 hours per day.
3.We will answer your qustion any time
4.Provide training for customer's technician
During sale:
Respect every customer and provide them convenience and reliability.We are devoted to help customer gain more.
1.Inspect before accept the products sent by us.
2.Assist our customer to make a constrution plan.
After sale
1.The installation and testing of equipment.
2.We would be ready for service 24 hours per day to accept your feedback .
3.we would provide maintaince if our product have problem.
Zhengzhou YinHai Mining Machinery equipment Co., Ltd. is a hi-tech, engineering group. We are specialized in the research, development, and production of industrial crushing, powder grinding, mineral processing equipments and other related devices. Our products have been sold to 120 countries and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future. We hold "Pursuing the YinHaiTechnology and Quality" as our management concept all the time. Relying on absorbing world leading crushing and powder processing technology, advanced management and quality control system, as well as our full efforts, YINHAI has earned high reputation among our customers.
How about the quality of our machine?
Our machine manufactured strictly according to national and international standard.
We take a test on every machine before delivery
How about price of machine?
We can give the lowest price than market one.
We do quotation of machine as soon as possible for any custome.
Discount of machine can be given according to quantity.
Note: Above technical parameters are just for reference, if you want to get more detailed information or if you have any trouble in selecting the suitable machine, please contact us.
