Specifications
Tilt Transducer1.Single-Axis Inclinometer
2.Measuring Range :+/-35deg
3.Resolution: 0.001deg
4.IP67 protection cl
Analog Tilt Transducer High Accuracy Level Transducer
General Description
HCA518T is a high accuracy single-axis inclinometer, output adopt the standard industry electronic interface 4 ~ 20mA, can be long-distance transmission of up to 2000 meters. The product uses the latest MEMS high technology for production, made precise compensation and correction to temperature error and nonlinearity error, small measuring range the highest accurate up to 0.003 ° (bigger measuring range index, please refer to product technical data),
HCA518T inclinometer use the dynamic zero test compensation technology to ensure product Quick Launch, high resolution ,stable data, good capacity to bear shock & vibration, built-in anti-RF, adopts anti-electromagnetic interference circuit to ensure that the output signal to a higher anti-interference ,in addition to this product is better than the similar market product on software technical data, on the reliability and stability the product is also using the high-end application-level MCU,three-proofing PCB board, imported cable, wide temperature shielded metal enclosure and other measures to improve product industrial level,to ensure the product can be long-term & safety extraordinary operation in harsh environments.
Features:
- Single-Axis Inclinometer
- Measuring Range :±1~±90° optional
- Accuracy: refer to the technical data
- Wide voltage input: 9~36V
- Output interface : 4-20mA
- Wide temperature working: -40~+85°C
- IP67 protection class
- Highly anti-vibration performance >2000g
- Resolution: 0.001°
- Small Volume : 90×50×28mm(customized)
Application:
- Satellite positioning Search
- Rail-mobile monitoring
- engineering mechanical measurement of dip angle
- oil-well drilling equipment
- Radar detection of vehicle platform
- Underground drill posture navigation
- Gun Barrel angle measurement in early shooting
- Based on the angle direction measurement
- Satellite communications vehicle posture detection
- Shield pipe jacking application
- Ship’s navigation posture measurement
- Geological equipment inclined monitoring
Ordering information:

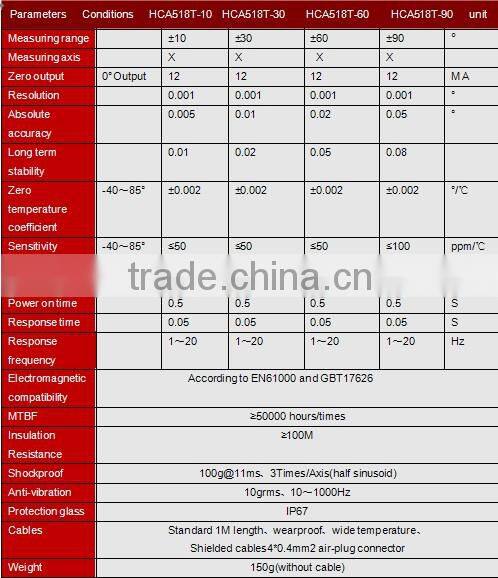

Technical Data
Dimension
Packing:
- Packaging: carton with sponge
- Delivery time: within 7 business days for common order after we receive the full payment
- Shipping time: 3-5 work days by DHL/UPS/FEDEX/TNT; 5-7 work days by EMS.
Pre-sale service
- Evaluate your application, recommend the most suitable item;
- Make you fully understand the products, usage and maitenance;
- Answer all your questions, and let you have no doubt before make any decision;
- Adjust, revise or redesign our products to consist with the application(for customized service);
Sales service
- Recommend the best payment term and shipping term for you;
- Make official quotation and PI with company Stamp;
- Keep you posted about the products producing;
- Send exactly requried products on time;
- Provide tracking NO. and inform you when products leave factory and arrive destination;
Post-sale service
- Instruct products connection, installation and application;
- if anything happen to products(barely will), engineer will evaluate the problem, solve the problem or exchange malfunction item for free, make sure you get the best solution and service.
- Keep tracking the products usage and ask for suggestion and advice.
Shenzhen RION, as a positon sensor manufacturer and solution expert, attaches much importance to products reseach and develop which spend over 20% of annual profit. We have the most R&D personnel and best technology comparing with our peer to raise our up on the high level of sensor field. And we orientate ourself to market tightly and engage ourself into providing the most considerate and professional solution and service to customers. RION introduce advanced equipment, such as TEMP&HUMI chamber, salt spray corrosion test chamber, high precision automatic turntable, high precision marble checking platform, digital thermostat drying oven, electrostatic discharge tester and 360 degree mechanical turntable etc, and set up Environmental Testing Laboratory, Product Aging Chamber, 2D&3D Posture Calibration Room and Shake&Impact Test Room for R&D and factory test.
Beside owning excellent hardware, RION also developed 15 sets of software independently and keep developing, including multi-sensor monitor software, remote sensor monitor software, synchronous dynamic l tracking 3D presentation software, tilt switch early warning and debugging software and sensor serial port setting presentation software etc which could apply to XP, Win7, Win8, WinCE and Android system. RION, owning talent and diligent personnel, advanced technology and market-orientated strategy, engages itself in offerring you the most considerate and professional solution and service of position sensor.
You satisfaction is our mission.
Certificates & Honor
FAQ
- How to choose suitable item: bowse our webiste and choose products by catalog, or contact us directly by email, skype, TM.
- How to buy: We accept the payment by Escrow/Alipay,including Paypal,Credit Card and T/T, WU.
- How to ship: by DHL, Fedex, UPS, EMS, TNT and ARAMEX Express mainly, we have long term and reliable logistic cooperator to ensure the safety and cost-saving
- How to apply: We provide instruction manual, software and online service to instuct you to connect, install, use and maintain our products.
- What if anything happen to products: contact us, we will evaluate the problem and instruct you, exchange the wrongly purchased item or fix the malfunction item for free...till you get the best solution.
- What if no suitable item to be found: customerized service is available.
- How to cooperate: we offer technical support, products info, samples, favorable terms&condition and sales support in concerned region.
