Help CenterHCA526T New Upgraded High Performance Accurate Digital Inclinometer With Temperature Output Showed In Software
Related Products
-
LCA310 The Cheapest 1-axis Analog Tilt Sensor , Analog Inclinometer With Built-in Newest MEMS Tech From Shenzhen FactoryNegotiableMOQ: 1 Piece -
ACA620T High Accuracy Dual Axis Analog Tilt Sensor , Analog Type Inclinometer With Stable Performance Output Mode OptionalNegotiableMOQ: 1 Piece
-
Wholesales & Retails SCA110T One Axis Analog Type Transducer , Shenzhen Transducer Factory SupplierNegotiableMOQ: 1 Piece
-
SCA120T Cheap High Precision Analog Capacitive Level Sensor With Single/dual Axis Opitonal From Shenzhen FactoryUS$ 100 - 200MOQ: 1 Piece
-
ACA610T High Accuracy 1-axis Analog Type Inclinometer , Analog Slope Sensor +/-5V or 0-10V Output OptionalNegotiableMOQ: 1 Piece
Specifications
1.Dual axis digital-type with high accuracy 0.002deg ;2.Range : +/-30deg (MAX);
3. With Temp . Output ;
4.DC 9-36V power;

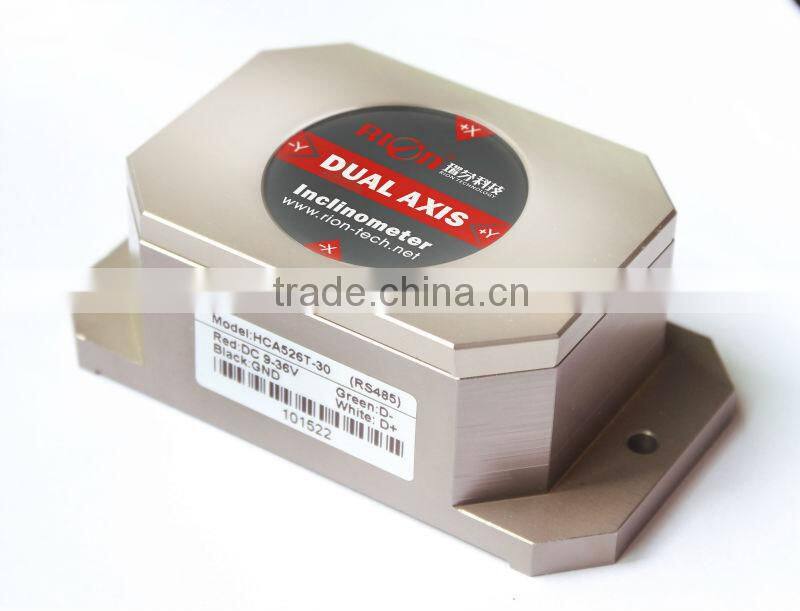

HCA526T New Upgraded High Performance Accurate Digital Inclinometer With Temperature Output Showed In Software
Description
HCA526T is a Dual-Axis inclinometer (tilt sensor,angle sensor)which is researched and produced by Shenzhen RION with resolution:0.001degree , The maximum measuring range is±85degree. This series Output through serial interface RS232 ,RS485 or TTL.
As the built-in ADI's high-precision digital temperature sensor, Therefore,the output angle value have been revised again within the working temperature, To ensure high repeatability of products in wide temperature.
Sensor angle response speed is 20Hz, and has five filters. Product belongs to real industral grade and is suited for various of adverse industrial control circumstances it features stable and reliable performance, good expansibility and many kinds of output ways to be chosen.
Features
- Dual-Axis inclinometer
- DC 9-36V wide voltage power supply
- Shockproof>20000g
- Output RS232,RS485,TTL serial interface
- Full Metal Jacket,IP68 protection
- Resolution0.001°
- Wide Temperature-40-+85(Degrees Celsius)
- small size(90*45*29mm)
Application
- Satellite positioningSearch
- Rail-mobile monitoring
- Engineeringmechanical measurement of dip angle
- Mining mechanism,oil-well drilling equipment
- Radardetection of vehicle platform
- Gun Barrel angle measurement in early shooting
Screen shot for HCA Series Software :
Our Company & Workshop View :
Certificates & Test Reports :
We can offer :
- Reliable high quality products and services
- Perfect whole system application solution
- Strong technical support before or after sales service
- Extend strong sales teams & distributors global
- OEM products as buyer's requests
Our main products :
- Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc. )
- 2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
- 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
- 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
- Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
- High performance MEMS Mini AHRS ( Attitude Heading Reference System )
- Other Agent Products PNI...etc
Order Process :
Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .
Payment ways :
T/T, WU or Paypal;
Delivery methods & Time :
DHL takes 3-5days , Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;
Quality Policy :
We gurantee 1 year in free charge .
Storage :
Note usually we don't make any items in stock , samples customize time need around 3-7days .
Other more information please visit our website :
Now please contact us through below methods for your any requirement or comments !
Contact person : Ms kity(sales)
SHEN ZHEN RION TECHNOLOGY CO.,LTD
Factory Address:
3F/Block 5, HuaFeng Tech- Park, Xin'an Road 6 #, BaoAn Dis. Shenzhen, China
Tel : +86-755-29657137 ext 807 Cell phone: 15625295088
Fax : +86-755-29123494 MAIL: kiting AT
Skype: sz_rion_tech MSN: tradeofchina AT
RIONWEB: ALIWEB: http://rion.en.china.cn
