Specifications
level measurment sensor1.Single-axis Voltage-type
2.Long term stability<0.1degree
3.IP67
4.DC5V power supp(7-36Voptional)

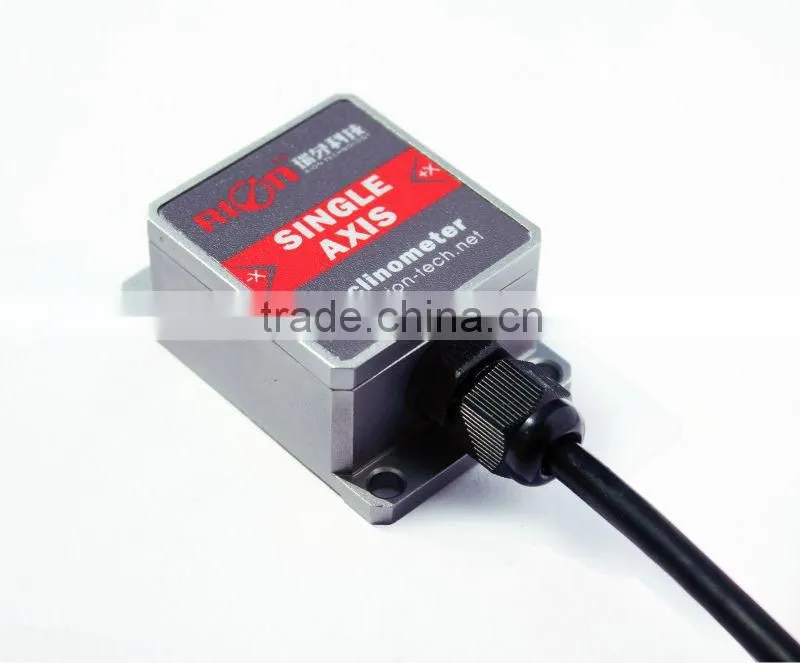

LCA310 The Cheapest 1-axis Analog Tilt Sensor , Analog Inclinometer With Built-in Newest MEMS Tech From Reliable Shenzhen Factory
General Description
The LCA310T series inclinometer which developed by Rion Company is a small volume, low-cost single-axis tilt sensor, the output voltage through an internal secondary linearity correction, is a linearity voltage output tilt sensor, mainly for the application market where with high-volume and cost restrictive. Built-in the latest MEMS production technology inclination unit, small size, low power consumption, and high consistency and stability of MEMS technology, working temperature up to the industry level -40 to +85, is a ultra-high cost-effective inclination modules.

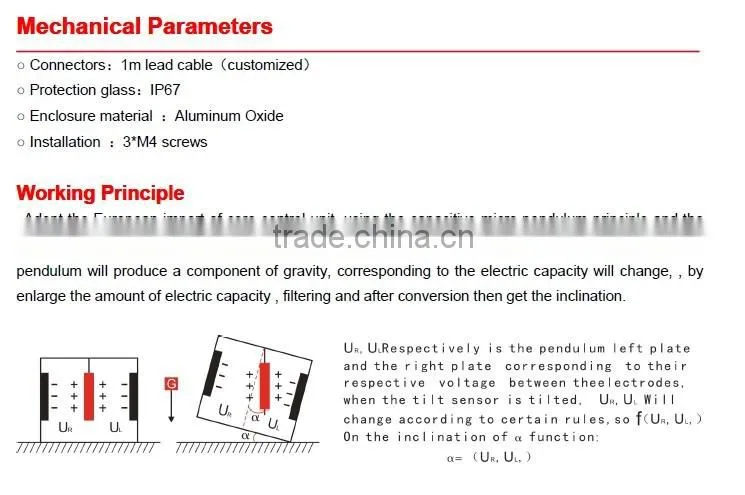

This product adopts non-contact measuring principle, can real-time output the current posture inclination, simple to use, no need to find the relative variation of the two surface for mounting.Small size, strong ability of resisting external electromagnet interference,strong ability to withstand shock and vibration. It Is the ideal choice for industrial equipment and platform measuring attitude !
Features
- Single-Axis Inclinometer
- Full measuring range anyone within 360° optional
- Accuacy: refer to the technical data
- Wide voltage input: 9~36V
- Output interface :0~5V
- Wide temperature working: -40~+85°C
- IP67 protection class
- Highly anti-vibration perfermance >3500g
- Resolution: 0.05°

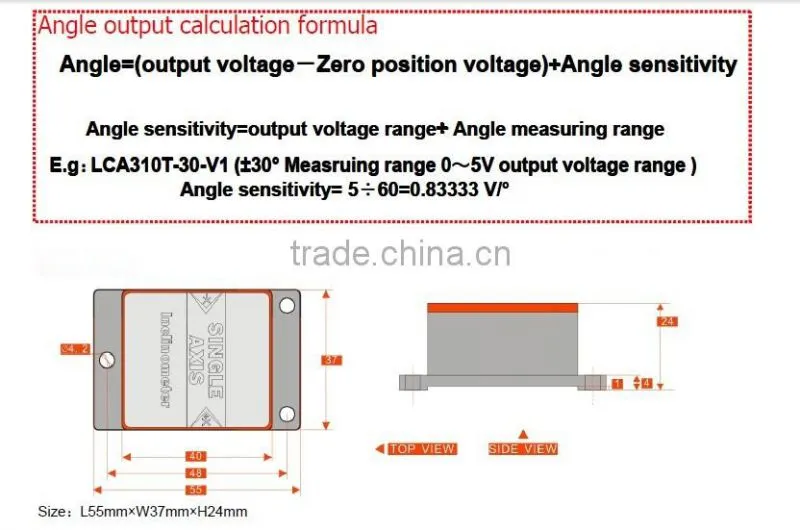

- Small Volume : 55×37×24mm(customized)
Application
- Electric blind man chair leveling
- Cloud deck operating monitor
- Satelite antenna positioning
- Medical equipment leveling
- Car Chassis Measurement
- Four - wheeled positioning system
- engineering mechanical measurement of dip angle
Our Company & Workshop View :
Certificates & Test Reports :
We can offer :
- Reliable high quality products and services
- Perfect whole system application solution
- Strong technical support before or after sales service
- Extend strong sales teams & distributors global
- OEM products as buyer's requests
Our main products :
- Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc. )
- 2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
- 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
- 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
- Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
- High performance MEMS Mini AHRS ( Attitude Heading Reference System )
- Other Agent Products PNI...etc
Order Process :
Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .
Payment ways :
T/T, WU or Paypal;
Delivery methods & Time :
DHL takes 3-5days , Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;
Quality Policy :
We gurantee 1 year in free charge .
Storage :
Note usually we don't make any items in stock , samples customize time need around 3-7days .
Other more information please visit our website :
Now please contact us through below methods for your any requirement or comments !
Contact person : Ms kity(sales)
SHEN ZHEN RION TECHNOLOGY CO.,LTD
Factory Address:
3F/Block 5, HuaFeng Tech- Park, Xin'an Road 6 #, BaoAn Dis. Shenzhen, China
Tel : +86-755-29657137 ext 807 Cell phone: 15625295088
Fax : +86-755-29123494 MAIL: kiting AT
Skype: sz_rion_tech MSN: tradeofchina AT
RIONWEB: ALIWEB: https://img13.fr-trading.com
