Home > Electrical & Electronics > Sensor > Pressure Sensor > Wholesales & Retails SCA110T One Axis Analog Type Transducer , Shenzhen Transducer Factory Supplier

Wholesales & Retails SCA110T One Axis Analog Type Transducer , Shenzhen Transducer Factory Supplier

Name: Wholesales & Retails SCA110T One Axis Analog Type Transducer , Shenzhen Transducer Factory Supplier
Brand: RION
SKU: 124602627

Wholesales & Retails SCA110T One Axis Analog Type Transducer , Shenzhen Transducer Factory Supplier thumbnail-1

Wholesales & Retails SCA110T One Axis Analog Type Transducer , Shenzhen Transducer Factory Supplier photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

RION

Model Number:

SCA110T

Contact Supplier Request Quote Chat Now

Shenzhen Rion Technology Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name RION

Model Number SCA110T

Usage Level Sensor

Theory Capacitance Sensor

Output Analog Sensor

Specifications

1.Single-Axis Inclinometer
2.Measuring Range :+/-1 to +/-180deg optional
3.Resolution: 0.0025 deg

Wholesales & Retails SCA110T One axis Analog Type Transducer , Shenzhen Transducer Factory Supplier

Production implementation standard reference

1.Enterprise quality system standards: ISO9001: 2008 standard (certification number: 128101)

2.Tilt sensor production standards: GB / T 191 SJ 20873-2003 inclinometer general specification of Level

3. The Academy of metrology and quality inspection Calibrated in accordance to: JJF1119-2004 Electronic Level calibration Specification

3.Gyro accelerometer test standard: QJ 2318-92 Gyro accelerometer test methods

4. Software development reference standard: GJB 2786A-2009 military software development General requirements

5. Product environmental testing standards: GJB150

6.Electromagnetic anti-interference test standards: GB / T 17626

General Description

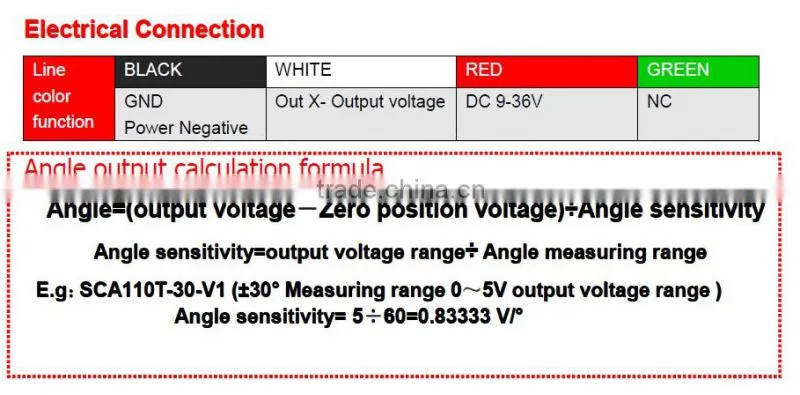

SCA110T is a single axis inclinometer with analog voltage output, the user simply collecting the inclinometer voltage value then can calculate the inclination of the current object. Built-in (MEMS) micro solid pendulum into angle changes by measuring the static gravity field changes, changes in mode output voltage (0-5V). Mainly used to measure the inclination of the object with respect to the horizontal plane.

This product uses non-contact measurement principle, can real-time output current posture inclination, non-contact inductive measuring principle, simple installation. Latest MEMS inclinometer productive technology production, high-precision, small size, strong resistance to external electromagnetic interference ability, the ability to withstand shock and vibration. It is the ideal choice for industrial equipment, platform measuring attitude!

Features

1.Single-Axis Inclinometer

2.Measuring Range :±1~±180° optional

3.Accuracy: refer to the technical data

4.Wide voltage input: 9~36V

5.Output interface :0~5V

6.Wide temperature working: -40~+85°C

7.IP67 protection class

8.Highly anti-vibration performance >2000g

9.Resolution: 0.0025°

10.Small Volume : 90×40×26mm(customized)

Application:

1.Engineering vehicles automatic leveling

2.Bridge & dam detection

3.Aerial platform vehicle,lifter safety & protection

4.Medical facilities angle control

5.Underground drill posture navigation

6.Shield pipe jacking application

7.Based on the angle direction measurement

8.Geological equipment inclined monitoring

9.Directional satellite communications antenna pitching angle measurement

10.Mining machinary, oil-well drilling equipment

11.Equipment level control

12.Alignment control , curve control

Our Company & Workshop View :

Certificates & Test Reports :

We can offer :

Reliable high quality products and services
Perfect whole system application solution
Strong technical support before or after sales service
Extend strong sales teams & distributors global
OEM products as buyer's requests

Our main products :

Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc. )
2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
High performance MEMS Mini AHRS ( Attitude Heading Reference System )
Other Agent Products PNI...etc

Order Process :

Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .

Payment ways :

T/T, WU or Paypal;

Delivery methods & Time :

DHL takes 3-5days , Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;

Quality Policy :

We gurantee 1 year in free charge .

Storage :

Note usually we don't make any items in stock , samples customize time need around 3-7days .

Other more information please visit our website :

Now please contact us through below methods for your any requirement or comments !
