Specifications
HIsingle axis inclinometer sensor analog current output1.Single-axis current-type
2.Long term stability<0.02degrees
3.IP67

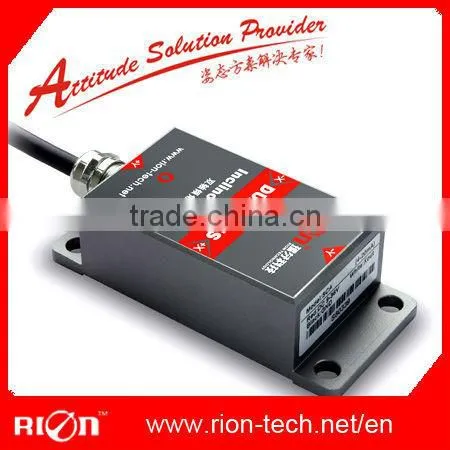

single axis inclinometer sensor with analog current output can be +/-180deg range measurement
General Description
SCA118T is a standard industrial output single-axis inclinometer, standard current 4 ~ 20mA output, can be long-distance transmission of up to 2000 meters. The output signal with strong anti-interference, professional be used to work on engineering machinery and equipment in harsh environment. The product uses the latest MEMS sensor production technology for production, made precise compensation and correction to temperature error and nonlinearity error, small measuring range the highest accurate up to 0.03 ° (more precision index, please refer to product Electronic Characteristics), high accuracy , small size, high packaging technology, good capacity to withstand shock and vibration, built-in anti-RF, anti lectromagnetic interference circuit , is particularly suitable for application underground trenchless type of machinery and other harsh industrial environments. In addition to this product is better than the ordinary market product on technical parameters, on the reliability and stability the product is also using the high-end application-level MCU,three-proofing PCB board, imported cable, wide temperature shielded metal enclosure and other measures to improve product industrial level.
Features
1.ngle-Axis Inclinometer
2.asuring Range :±1~±180° optional
3.curacy: refer to the technical data
4.ide voltage input: 9~36V
5.tput interface : 4-20mA
6.de temperature working: -40~+85°C
7.67 protection class
8.ghly anti-vibration performance >2000g
lution: 0.0025°
10.all Volume : 90×40×26mm(customized)
Application:
1.ineering vehicles automatic leveling
2.ridge & dam detection
3.rial platform vehicle,lifter safety & protection
4.ical facilities angle control
5.derground drill posture navigation
6. Field pipe jacking application
7.sed on the angle direction measurement
8.ological equipment inclined monitoring
9.quipment level control
10.gnment control , curve control
11.ectional satellite communications antenna pitching angle measurement
12.ing machinary, oil-well drilling equipment
