Specifications
1. High Resoluiton 0.0025deg ;2. No-contact Measurement ;
3. Latest MEMS Production Technology ;
4. Small size .

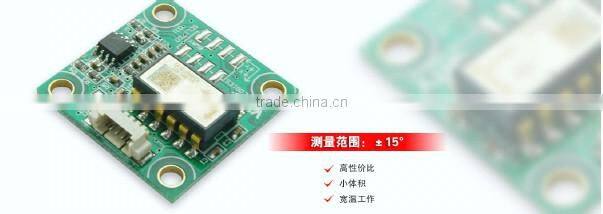

Wholesales Dual axis Voltage Type Inclnometer Sensor Circuit Board From Reliable Shenzhen Factory
General Description :
SCA1900T is a dual axis inclinometer modul with analog voltage output, adopts VTI MEMS control unit by measuring the static gravity field changes then convert into inclination change, the changes in mode output voltage (0-5V),mainly used to measure the inclination of the object with respect to the horizontal plane.Resolution is0.0025deg,accuracy specification please refer to the page 3 of product technicaldata .
This product uses non-contact measurement principle, can real-time output current posture inclination,Simple to use, and no need to retrieve the relative changed surface to install.Latest MEMS inclinometer productive technology production, high-precision, small size, strong resistance to external electromagnetic interference ability, the ability to withstand shock and vibration. It is the ideal choice for industrial equipment, platform measuring attitude!
Fetures :
Dual-Axis Inclinometer(Single axis are optional)
Measuring Range : ±1~±85°optional
Accuacy: refer to the technical data
DC 5V voltage input
Output interface :0~5V
Wide temperature working: -40~+85°C
Resolution: 0.0025°

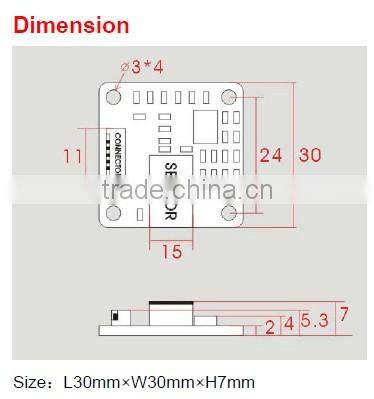

Small Volume : 30×30×5mm(customized)
Application:
Engineering vehicles automatic leveling
Bridge & dam detection
Aerial platform vehicle,lifter safety & protection
Medical facilities angle control
Underground drill posture navigation
Shield pipe jacking application
Based on the angle direction measurement
Geological equipment inclined monitoring
Directional satellite communications antenna pitching angle measurement
Our Company & Workshop View :
Certificates & Test Reports :
We can offer :
- Reliable high quality products and services
- Perfect whole system application solution
- Strong technical support before or after sales service
- Extend strong sales teams & distributors global
- OEM products as buyer's requests
Our main products :
- Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc. )
- 2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
- 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
- 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
- Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
- High performance MEMS Mini AHRS ( Attitude Heading Reference System )
- Other Agent Products PNI...etc
Order Process :
Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .
Payment ways :
T/T, WU or Paypal;
Delivery methods & Time :
DHL takes 3-5days , Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;
Quality Policy :
We gurantee 1 year in free charge .
Storage :
Note usually we don't make any items in stock , samples customize time need around 3-7days .
