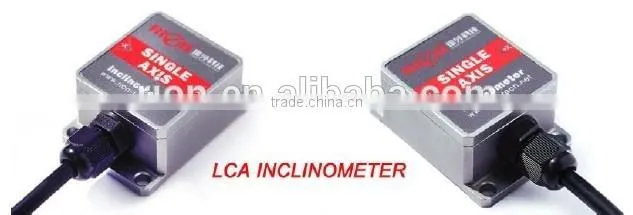

LCA310 Low Cost Electronic Single Shot Inclinometer With Standard 0~5V /0.5~4.5V Output

cartons

Specifications

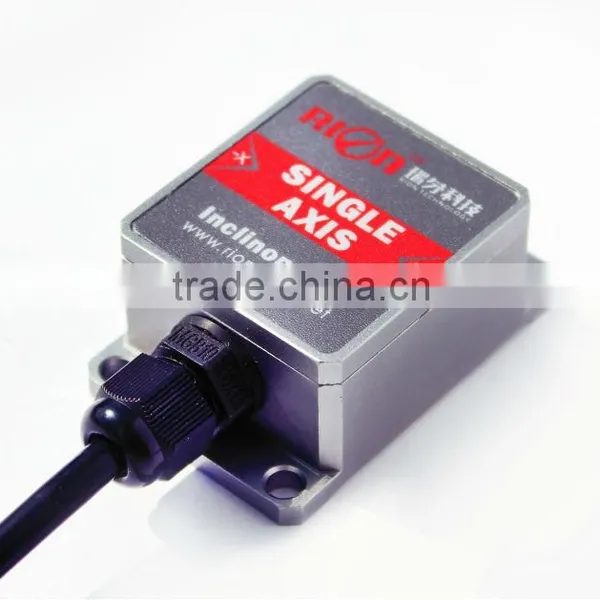

LCA310 Low-cost tilt angle sensor
1.Single-axis Voltage-type
2.Long term stability<0.1degree
3.IP65
4.DC5V power supp(7-36V

LCA310 Low Cost Electronic Single Shot Inclinometer With Standard 0~5V /0.5~4.5V Output





General Description



The LCA310T series inclinometer which developed by Rion Company is a small volume, low-cost single-axis tilt sensor, the output voltage through an internal secondary linearity correction, is a linearity voltage output tilt sensor, mainly for the application market where with high-volume and cost restrictive. Built-in the latest MEMS production technology inclination unit, small size, low power consumption, and high consistency and stability of MEMS technology, working temperature up to the industry level -40 to +85, is a ultra-high cost-effective inclination modules.

This product adopts non-contact measuring principle, can real-time output the current posture inclination, simple to use, no need to find the relative variation of the two surface for mounting.Small size, strong ability of resisting external electromagnet interference,strong ability to withstand shock and vibration. It Is the ideal choice for industrial equipment and platform measuring attitude !







Features



• Single-Axis Inclinometer
• Full measuring range anyone within 360° optional
• Accuacy: refer to the technical data
• Wide voltage input: 9~36V
• Output interface :0~5V
• Wide temperature working: -40~+85℃
• IP67 protection class
• Highly anti-vibration perfermance >3500g
• Resolution: 0.05°
• Small Volume : 55×37×24mm(customized)



Application:



• Electric blind man chair leveling
• Cloud deck operating monitor
• Satelite antenna positioning
• Medical equipment leveling
• Car Chassis Measurement
• Four - wheeled positioning system
• engineering mechanical measurement of dip angle
