Specifications
1. Measuring Range :+/- ~+/-90deg optional2. Resolution: 0.01deg
3. Highly anti-vibration performance >2000g
SCA126T Wireless Comunication Inclinometer Wireless Slope Sensor 2+1 With Wireless Data Receiver Screen Display

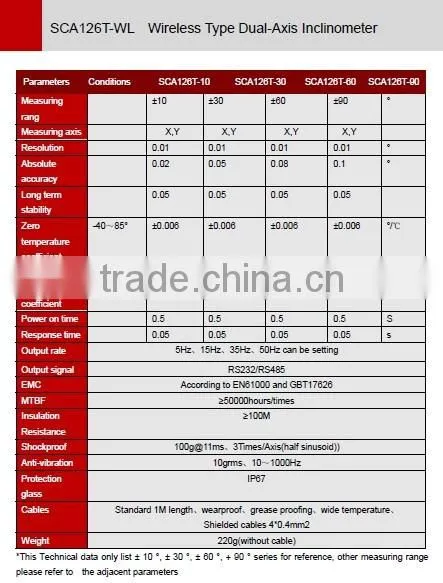

SPECIFICATIONS
Item No.:SCA126T-WL
Description:Wireless Type Dual-Axis Inclinometer
Version:Ver.05
Production implementation standard reference
- Enterprise quality system standards: ISO9001: 2008 standard (certification number: 128101)
- Tilt sensor production standards: GB / T 191 SJ 20873-2003 inclinometer general specification of Level
- The Academy of metrology and quality inspection Calibrated in accordance to: JJF1119-2004 Electronic
- Level calibration Specification
- Gyro accelerometer test standard: QJ 2318-92 Gyro accelerometer test methods
- Software development reference standard: GJB 2786A2009 military software development General requirements
- Product environmental testing standards: GJB150
- Electromagnetic anti-interference test standards: GB / T 17626
General Description:
SCA126T-WL is a wireless transmission type dual-axis inclinometer launched by RION company to the
field of industrial control,
Is composed of the measurement transmitter and the receiver two parts, using wireless ISM all band
operating frequency, in line with the global ISM band communications standard, no need to apply
frequency point. The carrier frequency is within 400-480MHz. Open area in visual communication
distance up to 200 meters. GFSK modulation method and adopt efficiency forward error correction
channel encoding technology, to improve the ability of the data against burst interference and random
interference. Inclinometer measurement structure is made of aluminum alloy shell, fully waterproof
structure, long-term work in the outdoor monitoring applications.

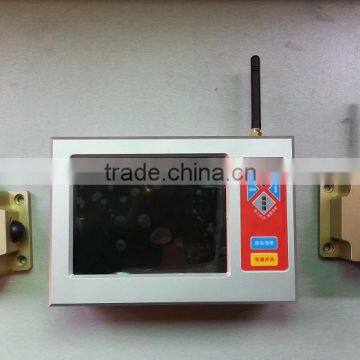

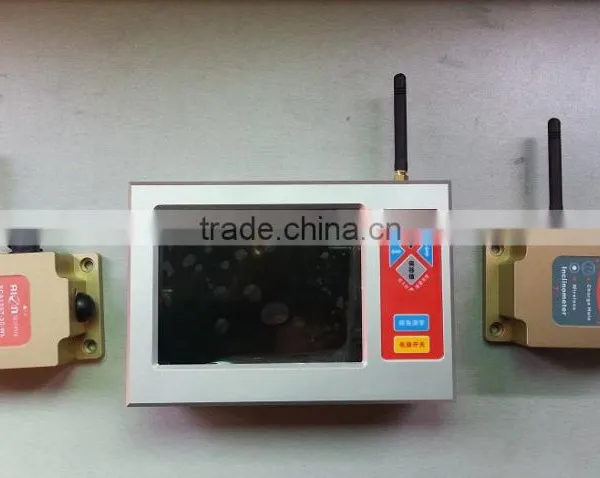

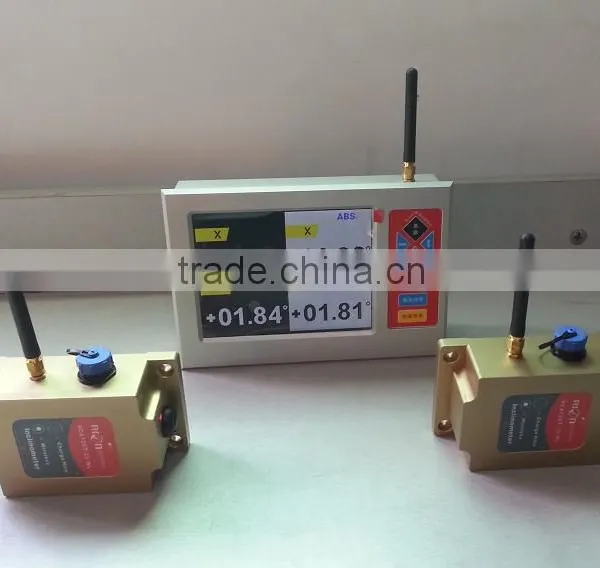

This product is composed of wireless inclinometer and wireless data receiver two parts, both of two
parts along with receiving antenna and the air connector components, through RS232/RS485 interface
port the receiver output the inclinometer measurement values which received by wireless module, the
user simply to provide the power supply and collecting its digital signal then can real-time measure and
analyze the remote object tilt angles.
The inclinometer built-in high-precision 16bit A / D differential converter, through 5 filtering algorithm,
which can measure the angle of sensor output relative to the horizontal tilt and pitch tilt. The output
interface RS485, RS232, RS422, TTL, are optional.Because of Built in ADI company’s high precision
digital temperature sensor that can correct the sensor temperature drift in accordance with the changes
of the built-in temperature sensor, to ensure high repeatability of the product in the low-temperature and
high-temperature environment. The output frequency response standards up to 18Hz, for higher
response frequency Division we can customize according to the user requests. The products are truly
industrial-grade products, reliable performance, scalability, and a variety of output options. Suitable for a
variety of harsh industrial control environment.
Features:
- Dual-Axis Inclinometer
- Measuring Range :±1~±90° optional
- Accuracy: refer to the technical data
- Wide temperature working: -40~+85°C
- Resolution: 0.01°
- IP65 protection class
- Highly anti-vibration performance >2000g
- 200M wireless transmission

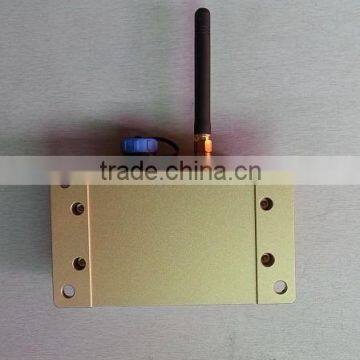

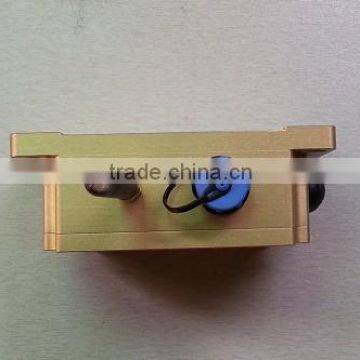

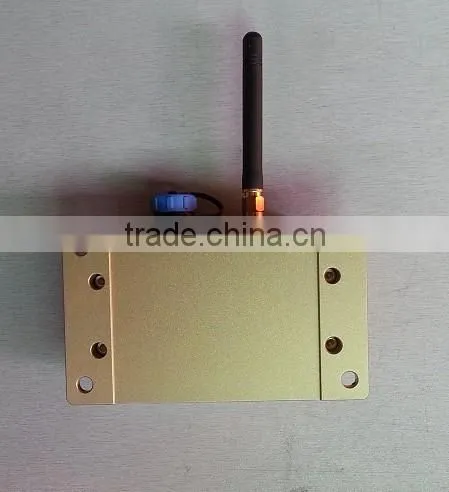

- Wireless inclinometer size : L110 X W65 X H34mm

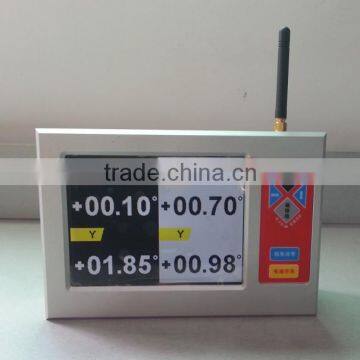

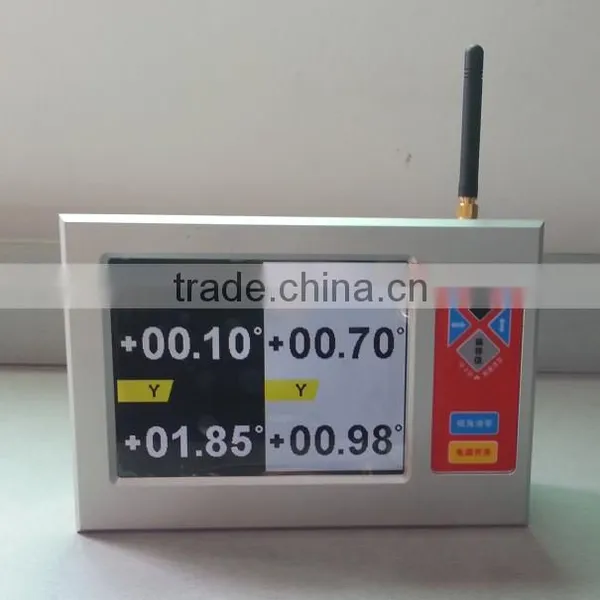

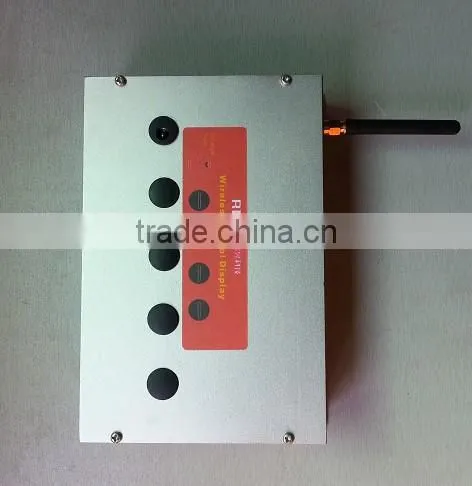

- Wireless data receiver with screen size : L185 X W126 X H47mm , 5.6" screen
Application:
- Satellite positioning Search
- Rail-mobile monitoring
- engineering mechanical measurement of dip angle
- oil-well drilling equipment
- Radar detection of vehicle platform
- Underground drill posture navigation
- Gun Barrel angle measurement in early shooting
- Based on the angle direction measurement
- Satellite communications vehicle posture detection
- Shield pipe jacking application
- Ship’s navigation posture measurement
- Geological equipment inclined monitoring
