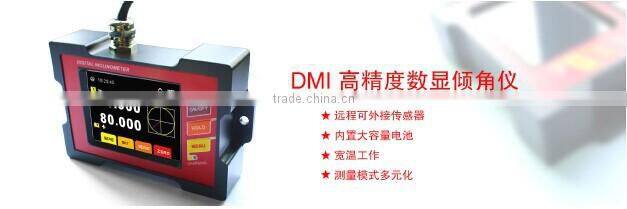

Additional High Precision Calibrated Inclinometer Tilt Sensor With Touch Screen Data Store and More Functions
General Description
DMI825 is a digital display inclinometer which took RION company three years to develop professional for various industry angle controling and measuring.Thecore of this product is using the micro-mechanical control principle, dual-core measurement unit,can use the Y-axisto compensate X-axis during the measurement process,and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. DMI825 is a uniaxial 90deg measurement, resolution 0.001 °,the highest accuracy <0.005degree full-scale,fast response, stable data,products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use, In addition, supporting the selection of DMI825 (SMI825) with the use of separate measurement, used in combination with the Division HCA series tiltsensor, the transmission mode wireless or wired optional, wireless using one-to-one band transmission, transmission straight line distance> 10m, the cable transmission standard 1 meter (can be customized long distance), DMI825 series has strong scalability, convenient & practical application andindustrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !
Features:
- Best accuracy:<0.003°
- Repeatability:0.003°
- Angle resolution:0.001°
- Maximum measuring range:±30°
- User can set the alarm value by himself
- Data store function
- Absolute/Relative measurement can switch
- Both sides and bottom can measure
- Working Temperature : -10°~ +70℃
- Auto temperature drift compensation
- User can calibrate ZERO by himself
- IP54 protection class
- °/mm/m Dual units switch function
- Filter frequencyoptional
- Three kinds of measurement mode selectable (radian, angle, mm)
Application :
- Building construction
- Automobile four-wheel testing
- Road slope
- Machinery installation
- Piping installation
- Industrial platform
- Turntable testing
- Pan unit angle detection
- Production jig
- Medical instruments
Technical Data
Angle Measuring range |
DMI825:±15 ° ; |
DMI825:±30 ° ; |
° |
MM measuring range |
267 |
577 |
mm |
Meausring axis |
Single axis |
Single axis |
|
The highest meausring accuracy |
<0.005 (Full measuring range) |
<0.01 (Full measuring range) |
° |
Angle Measuring resolution |
0.001 |
0.001 |
° |
MM measuring accuracy |
0.1 |
0.2 |
mm |
Three measurement mode selectable |
radian, angle, mm measuring can be selected |
|
|
MM measuring res |
0.02 |
mm |
|
LCD |
64 true colors night vision display screen |
||
LCD visible area size |
L57.6*W43.2 |
mm |
|
Working temperature |
-10°~ +70℃ |
°/℃ |
|
Working humidity |
85 |
%RH |
|
Equipped with PC software |
VC software |
||
Data output signal |
RS485/RS232 |
||
Connect plug in |
Standard 5Pin USB connector |
||
Shock resistance |
10g@11ms,3Times/Axis(half sinusoid) |
g |
|
Shock impact |
10grms,10~100Hz |
g |
|
Weight |
300 |
g |
|
Waterproof grade |
IP54 |
||
Material |
Metal |
||

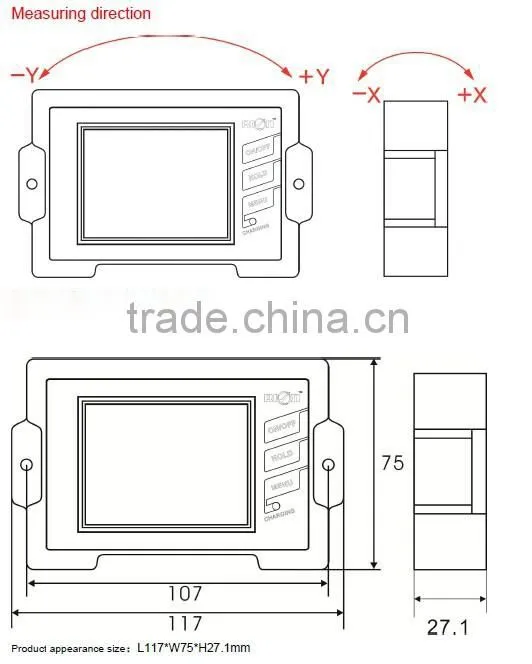

Size |
L117*W75*H27.1mm |
mm |
|
Ordering information
Item No. |
Desc. |
|
DMI825-15 |
Standard dual-axis digital display inclinometer ±15° |
|
DMI825-30 |
Standard dual-axis digital display inclinometer ±30° |
|
E.g:DMI825-15 is standard Dual-axis digital display inclinometer with measuring range ±15°

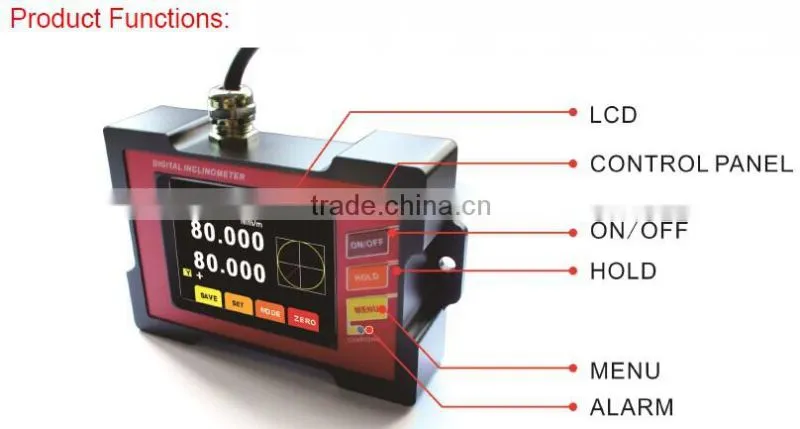

ON/OFF: Press for 2seconds to power on or off ;
HOLD: This key to lock the current data, convenient customer records;
MENU: Press MENU menu disappears, then re-press appears..
Functional menu instructions :
1. Press MENU menu disappears, then re-pressappears..
2.Press the“ MENU” and “HOLD” keys at same time to enter the touch screen calibration.
2.1 Click “OK” enterinto nex step ,click “EXIT” to Exit touchscreen calibration.
2.2 Click the red dot with a small pen to move the red finish four points automatically exit calibration.
Other more data sheet pls download the file from our official website : or contact us for sending .
RION' software for DMI825 Inclinometer ;
Products maintenance :
1. The instrument reliability and can be used in the vibration environment, please don’t high-altitude fall the instrument to avoid cause permanent damage.
2. If found instrument damage please don’tdisassemble it by yourself, please contact us at first for professional guidance , such as personal removed , subject to manufacturer shall refuse to repair.
Warning :
1.This producthas a high precision sensor and information processing circuit, it is forbidden to drop impact or to tear open outfit, otherwise the consequence is proud.
2. Don't press the multiple keys at the same time, it is easy to affect the service life of the
Product.
3.This product should be placed ina safe place where Children can not touch.
Our Company & Workshop View :
Certificates & Test Reports :
We can offer :
- Reliable high quality products and services
- Perfect whole system application solution
- Strong technical support before or after sales service
- Extend strong sales teams & distributors global
- OEM products as buyer's requests
Our main products :
- Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc. )
- 2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
- 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
- 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
- Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
- High performance MEMS Mini AHRS ( Attitude Heading Reference System )
- Other Agent Products PNI...etc
Order Process :
Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .
Payment ways :
T/T, WU or Paypal;
Delivery methods & Time :
DHL takes 3-5days , Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;
Quality Policy :
We gurantee 1 year in free charge .
Storage :
Note usually we don't make any items in stock , samples customize time need around 3-7days .
