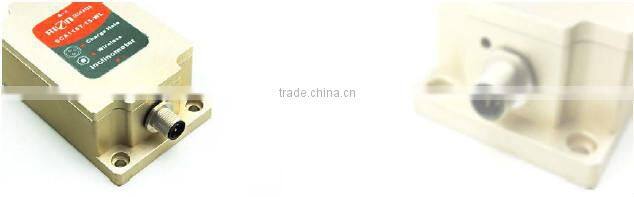

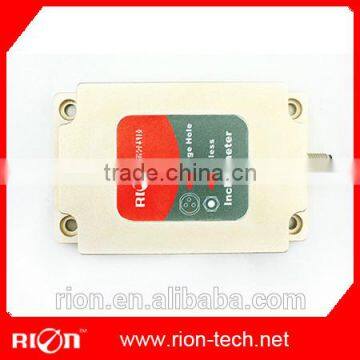

High Frequence Tilt Angle Sensor With Full Temp. Compensation

High Frequence Tilt Angle Sensor With Full Temp. Compensation

General Description

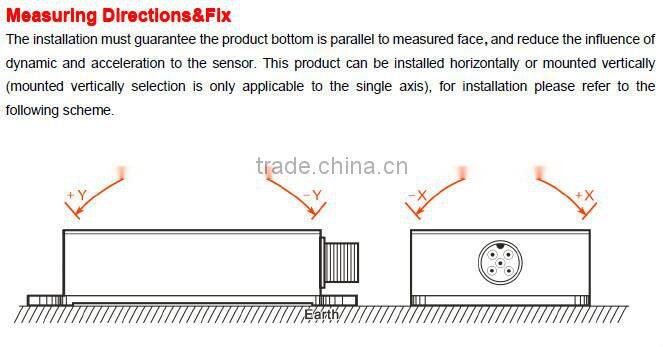

   ACA2200 is a analog balanced servo inclinometer which manufactured by Rion company, the principle is composed of the non-contact displacement sensor, torque motor, error & amplifier circuit, the feedback circuit and cantilever mass five parts. This series inclinometer accuracy is far superior than the inclinometer relative tothe electrolyte principle or the capacitance principle on the nonlinearity,repeatability, hysteresis, temperature drift and working temperature, resistance shock anti-vibrationand other properties.Internal integration of the 24 ARM high-end system,resolution  0.0001 ° ,precision 0.001 ° ,temperature drift: 0.0008 ° C / ° ,response frequencies up to 300Hz (baud rate 115200),it is a highly competitive industry product nowadays .Non-contact installation features make ACA2200 with superior system integration, Simply fix the sensor on the measured surface by screws , then can automatically calculate the object posture inclination, easy to use , no need to find the relative change two surfaces for mounting . With strong ability resistance to external electromagnetic interference and to withstand shock and vibration,in the domestic counterparts products with absolute competitive advantage, specialized in application in the industrial and military fields where the high-end user requirements.

Features

• Dual-Axis Inclinometer

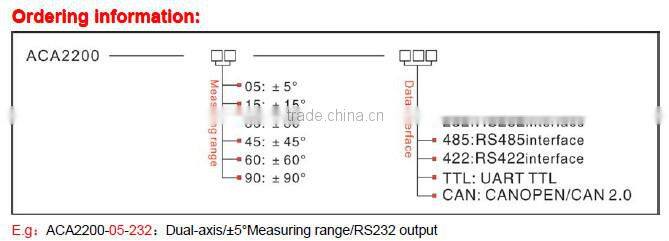

• Measuring Range :±1~±90° optional
• Response frequence: 300Hz
• Wide voltage input: 9~36V
• Wide temperature working: -40~+85℃
• Resolution: 0.0001°

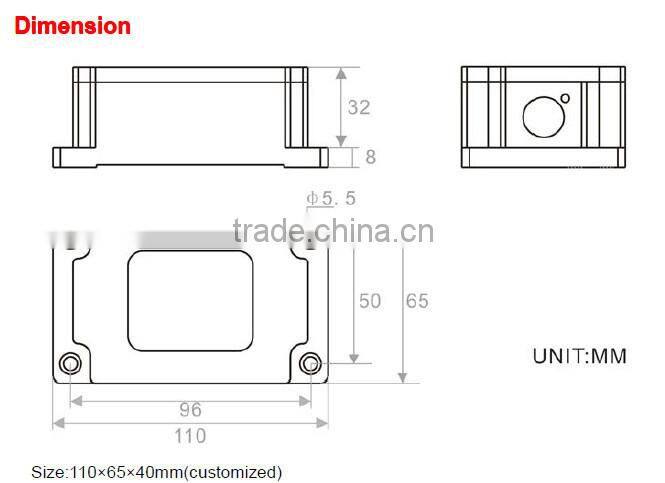

• Size:110×65×40mm(customized)
• IP67 protection class

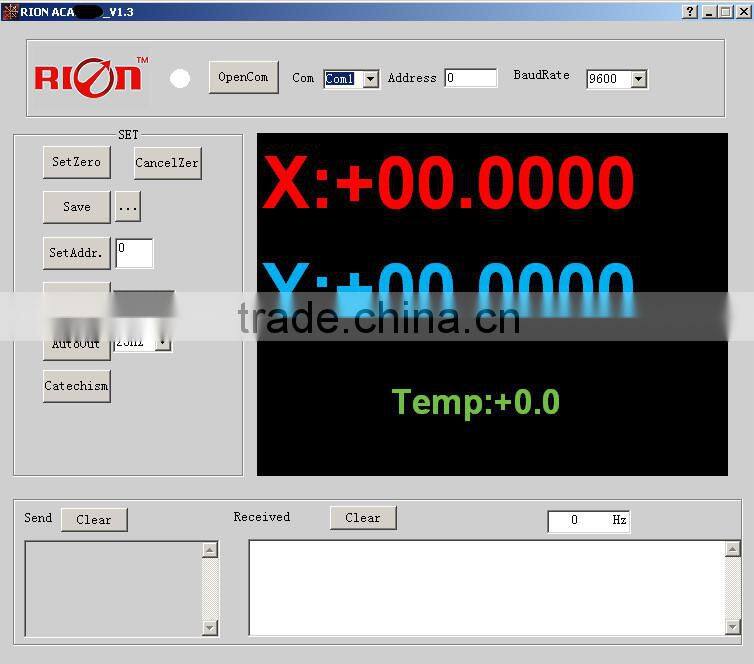

• Output mode RS232,RS485,TTL,PWM are optional

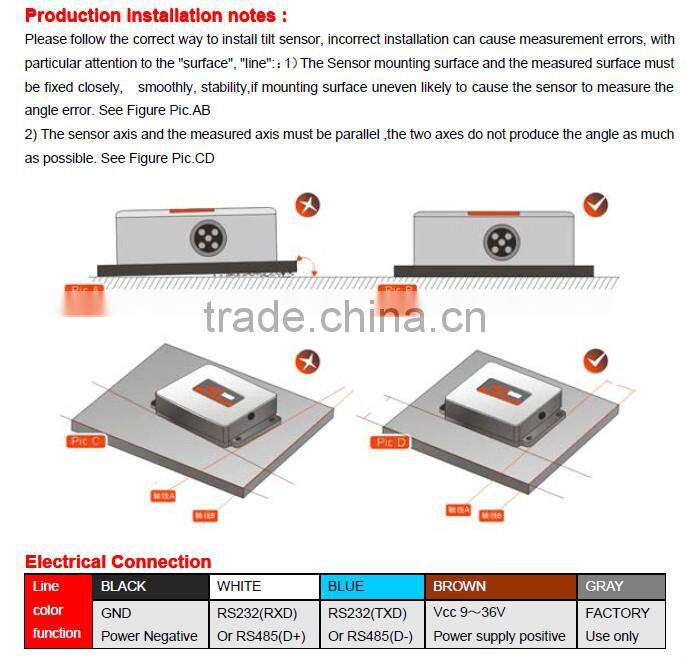

• Water-proof air-plug

Application

• Engineering vehicles automatic leveling
• Bridge & dam detection
• Precise equipment level control
• Medical facilities angle control
• Underground drill posture navigation
• Railway gauging rule , gauge equipment leveling
• Based on the angle direction measurement
• Geological equipment inclined monitoring
• Directional satellite communications antenna pitching angle measurement
