Specifications
Analog Output Type 3D Electronic Compass Sensor1. Heading Accuracy : 0.3-0.5deg
2. Heading Ouput Signal : 4-20mA
HCM508B High Performance & Stability Industry Analog Output Type 3D Electronic Compass Sensor , Low Power Consumption,Small Size
General Description

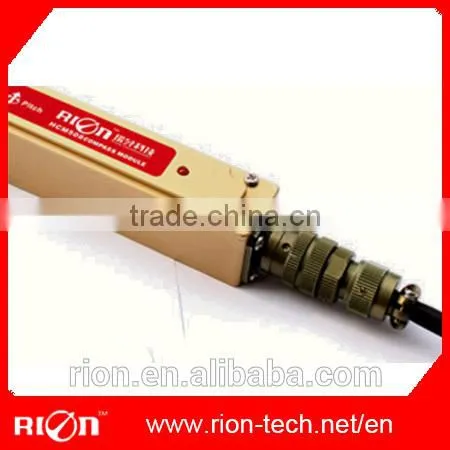

HCM508B is a high accuracy 3D compass single board sealed in aluminum enclosure with IP67 water-proof grade, more suitable for drilling measurement. it uses advanced hard iron and soft iron calibration algorithm,it can still provide the high precision heading information in the roll angle 360 ° to any toolssurface .it has the characteristics of small and low power consumption, and more suited to today's miniaturization sensitive measurement system.
HCM500B integrated patented three -axis fluxgate technology, real-time solver heading data through CPU , and use a three-axis accelerometer to proceed with heading compensation for a wide range tilt angle, belongs to the high-performance, high stabilitymilitary grade products , HCM500B with small size, low power consumption, widely used in the antenna securely, vehicle and system integration etc. many fields .
Features:
- Heading accuracy: 0.3°~0.5°
- Roll angle measuring range :±180°
- Tilt angle resolution: 0.1°
- Tilt angle accuracy: 0.2°
- With hard magnetic ,soft magnetic and angle compensation
- Size: L:125×W:22×H:24 mm
- Standard RS232/RS485/TTL output interface
- Wide temperature : -40°C~+85°C
Application :
- Satellite antenna search satellite
- Marine navigation surveying and mapping
- GPS integrated navigation
- Antenna servo control
- Gun emission system
- Infrared imager
- Laser range finder
- Map for plotter
- ROV underwater robot navigation
- Oceanography measurement instruments
- Special occasion robot
- Unmanned aircraft
Parameter :
Fix & Measuring Direction :
Product Software ref.
Our Company & Workshop View :
Certificates & Honors :
We can offer :
- Reliable high quality products and services
- Perfect whole system application solution
- Strong technical support before or after sales service
- Extend strong sales teams & distributors global
- OEM products as buyer's requests
Our main products :
- Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc. )
- 2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
- 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
- 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
- Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
- High performance MEMS Mini AHRS ( Attitude Heading Reference System )
- Other Agent Products PNI...etc
