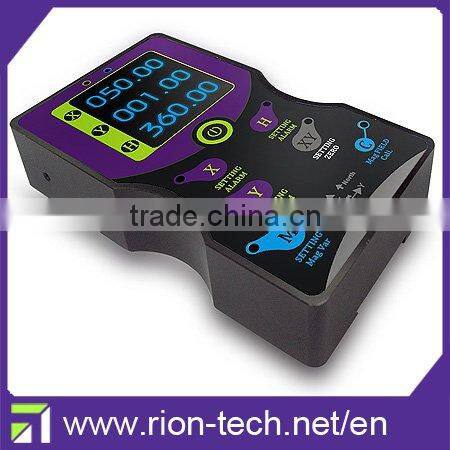

SDC630 Digital 3D North Finder With 3D Heading 360deg Display

Specifications

SDC630 digital 3D North Finder with 3D Heading 360°display

General Description:

SDC630is  quick north-seeking equipment with low-cost price which produced by RION company. Which uses advanced algorithms, with hard iron and soft iron corrections, To provide highly accurate heading information over its extra wide tilt range at latitudes up to 360deg.Andalso through the magnetic declination setting can quick find the true north position.

In addition,SDC630 combines three angle value alarm setting function. For example. If you set “H”-Heading angle to:000.0,When the north finder rotated to 0 degrees(North),position,It will drive a buzzer to alert for help operator to finding they needed position.

Do not always need the display to seeking north. SDC620 built-in high capacity rechargeable battery,  Battery using life is 1 million times or more, when the power is weak,LED lights will flash warning you need to charge ,You can just use 220V charger to charge like mobile telephone, convenient and quickly.

Features:

1)3D Heading 360°display

2)360deg tilt compensation plus simultaneous disply

3)Hand-held, Dovetail bad installation in one design

4)three angle value alarm setting function

5)With hard iron and soft iron corrections

6)Power weak warning function

7)Angle relative absolute zero setting

8)Reset function

9) Long working hours>30h

10) Slope angle compensation optional

11) High resolution:0.01°

12) Real-time data on the direction

13) Wide temperature-20°~ +80°C

14) Various combinations of optional (External optional compass)

15) IP65 protection level

16) Industrial digital display, wide temperature range, can be night vision

Applications:

1:Satellite receivers installed north seeking
2: Robotic systems
3:High performance ROV navigation
4:GPS system integration
5:Satellite positioning Search
6:Remote terrestrial antenna direction indicators
7:Sonar targeting systems
8:3-axis magnetic field sensing
