Specifications
Digital Output Acceleration Sensors1. High performance
2. High accuracy
3. Stable & reliable
4. Low power consumption

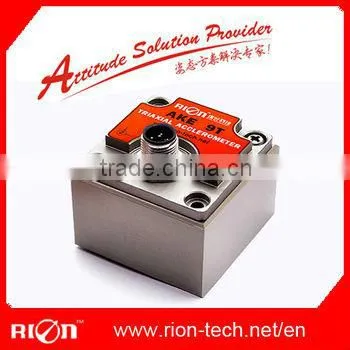

Triple Axis Digital Output Acceleration Sensors High Accuracy and Robustness
General Description
AKE392B three-axis accelerometer sensor series products is RION company imported the Switzerland patented technology to produce for using widely, suitable for vibration testing, impact testing and more fields. The product uses a digital interface output, RS232/485/TTL optional, can be set to a different address code, long distance series with multiple sensors to facilitate multi-point measurement and data analysis.AKE392B is a monocrystalline silicon capacitive sensor, composed by a silicon chip of micro-mechanical treatment, low power ASIC for the signal adjustment, a microprocessor for storing compensation value and a temperature sensor. The product with low power consumption, after calibration, firm structure, stable output . New electronic configuration reset to provide a solid-state power, to provide comprehensive protection for over current. Scale factor in the full range of long-term stability and the deviation is typically less than 0.1%.This series products with firm structure,low power consumption, excellent deviation stability .etc characteristics to guarantee the reliability of outstanding output .
Key Features
Three axis measurement optional (X,Y,Z) Output signal:RS232/RS485/TTL
Voltage supply:9-36V Shock resistance:2000G
Measuring range optional:±01G;±02G;±04G;±08G;±16G;±32G;±40G
Excellent deviation stability Good environment performance shock,vibration and temperature
Size:L47×W47×H38mm Weight:100g
Working temperature:-40°C to +85°C Storage temperature:-55°C to +100°C
Application
Crash records, fatigue monitoring and forecasting
Traffic system monitoring, the roadbed analysis and high-speed railway fault detection
Military and civilian flight simulator The shipboard satellite tracking system
Low frequency vibration and automatic monitoring
Military and civilian flight simulator The shipboard satellite tracking system
Low frequency vibration and automatic monitoring
Parameter
Order Information
Electrical Connection
Company and Factory
Certificates & Honor
Payment methods
We accept the payment by Escrow/Alipay,including Paypal,Credit Card and T/T, WU.
We are not responsible for any custom duty or import tax.
Shipment
We will ship your order within 7 business days after we receive the full payment.
If you choose ship by DHL/UPS/FEDEX/TNT,it will take 3-5 work days; If you choose EMS ,it will take 5-7 work days.
