Underwater Robot Using 3D Compass Sensor With High Accuracy
- 30000 Piece / Pieces per Month
- HK
- T/T Credit Card
- HCM505B Industrial Compass Sensor Module With Heading Angle 360deg, Roll angle +/-180deg and Pitch +/-90deg Output
- Triple Axis Digital Output Acceleration Sensors High Accuracy and Robustness
- Wide Working Temp. RS232 Digital Compass Position Sensor Mini 3D Compass Electronic
- HCM505B New Generation High Precision 3D Compass Sensor For Drilling Measurement Horizontal or Vertical Optional
- DCM302B High Performance 3 axis Compass Sensor From Reliable Shenzhen Factory
- RS232 Output Type High Accuracy 3D Compass Sensor Used For Drilling Measurement , IP67
Product Details
Place of Origin: | Guangdong, China | Brand Name: | RION | Model Number: | HCM505 |
Usage: | Magnetic Sensor | Theory: | Other, MEMS | Output: | Digital Sensor |
Packaging Details
1pcs/box with sponge inside, 200pcs/ctn
Product Description
Underwater Robot Using 3D Compass Sensor With High Accuracy

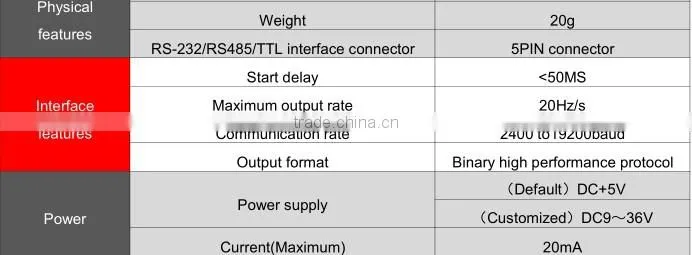

SPECIFICATIONS
Item No.:HCM505B
Description:High Accuracy 3D Digital Compass
Version:Ver.07

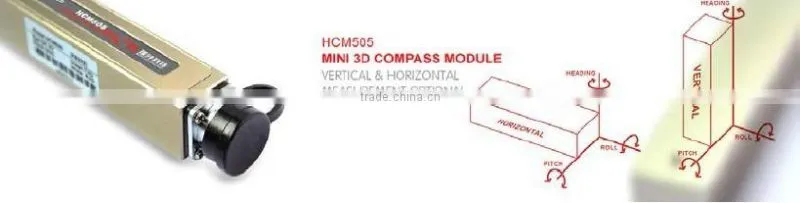

HCM505B is a high accuracy 3D compass single board, elongated volume,the width is only 1.6CM, sealed in aluminum enclosure with IP67 water-proof grade, more suitable for drilling measurement. it uses advanced hard iron and soft iron calibration algorithm,it can still provide the high precision heading information in the roll angle 360 ° to any toolssurface .it has the characteristics of small and low power consumption, and more suited to today's miniaturization sensitive measurement system.
HCM500B integrated patented three -axis fluxgate technology, real-time solver heading data through CPU , and use a three-axis accelerometer to proceed with heading compensation for a wide range tilt angle, belongs to the high-performance, high stabilitymilitary grade products , HCM500B with small size, low power consumption, widely used in the antenna securely, vehicle and system integration etc. many fields .
Features:
- Heading accuracy: 0.3°~0.5°
- Roll angle measuring range :±180°
- Tilt angle resolution: 0.1°
- Tilt angle accuracy: 0.2°
- With hard magnetic ,soft magnetic and angle compensation

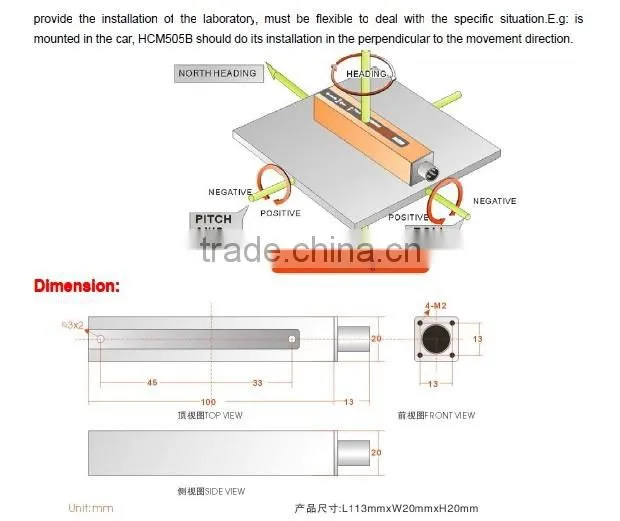

- Size: L113×W20×H20mm
- Standard RS232/RS485/TTL output interface

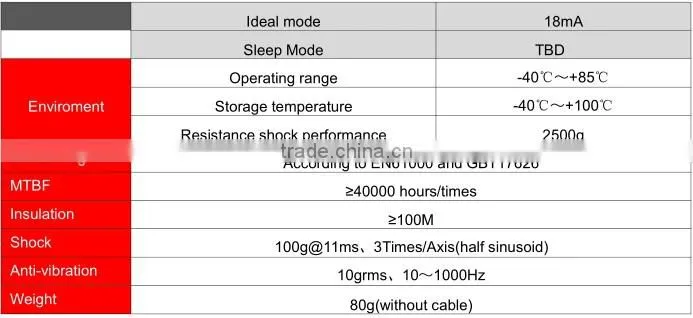

- Wide temperature : -40°C~+85°C
Applications:
- Satellite antenna search satellite
- Marine navigation surveying and mapping
- GPS integrated navigation
- Antenna servo control
- Gun emission system
- Infrared imager
- Laser range finder
- Map for plotter
- ROV underwater robot navigation
- Oceanography measurement instruments
- Special occasion robot
- Unmanned aircraft

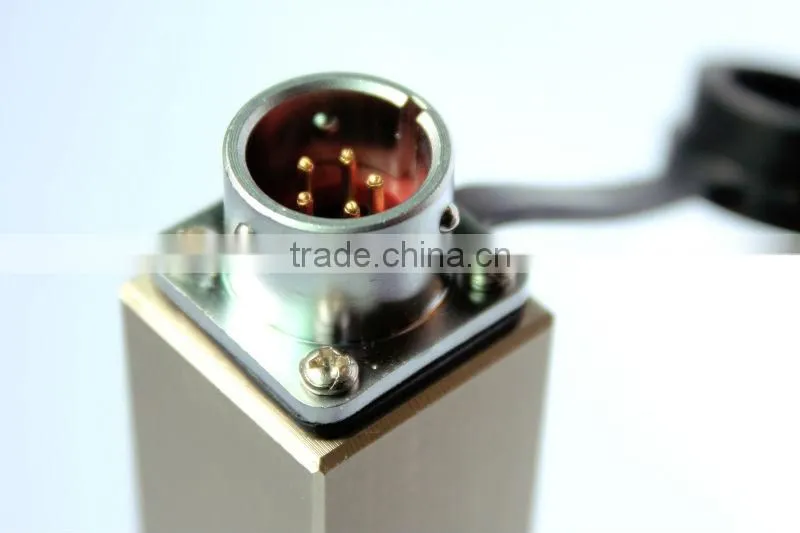

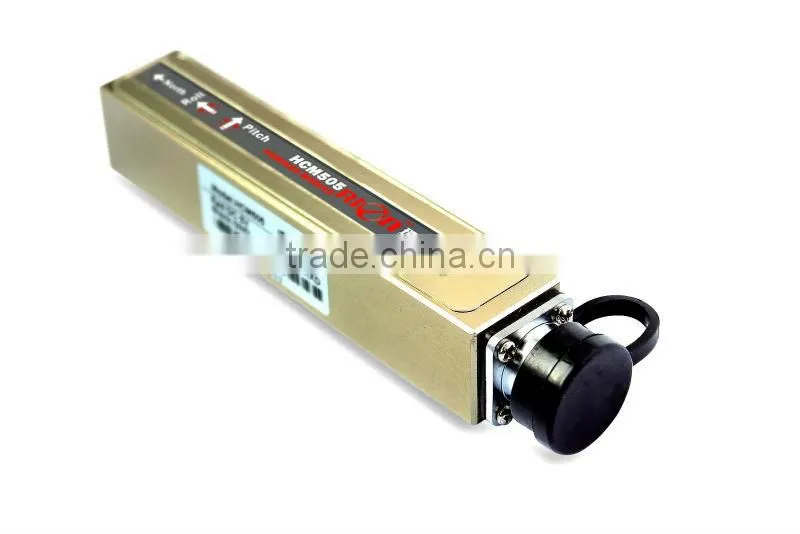

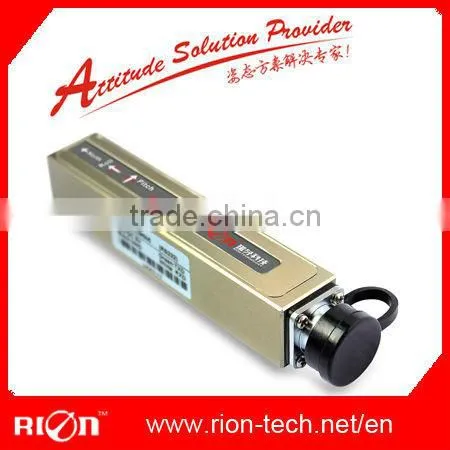

Product photos :
Our Company & Workshop View :
Certificates & Test Reports :
We can offer :
- Reliable high quality products and services
- Perfect whole system application solution
- Strong technical support before or after sales service
- Extend strong sales teams & distributors global
- OEM products as buyer's requests
Our main products :
- Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc. )
- 2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
- 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
- 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
- Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
- High performance MEMS Mini AHRS ( Attitude Heading Reference System )
- Other Agent Products PNI...etc
Order Process :
Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .
Payment ways :
T/T, WU or Paypal;
Delivery methods & Time :
DHL takes 3-5days , Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;
Quality Policy :
We gurantee 1 year in free charge .
Storage :
Note usually we don't make any items in stock , samples customize time need around 3-7days .
