3D Calibrated Digital Compass Sensor With Stable Output

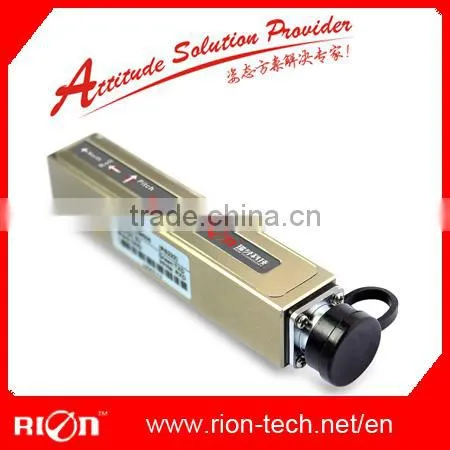

HCM505B is a high accuracy 3D compass single board, elongated volume,the width is only 1.6CM, sealed in aluminum enclosure with IP67 water-proof grade, more suitable for drilling measurement. it uses advanced hard iron and soft iron calibration algorithm,it can still provide the high precision heading information in the roll angle 360 ° to any toolssurface .it has the characteristics of small and low power consumption, and more suited to today's miniaturization sensitive measurement system.
HCM500B integrated patented three -axis fluxgate technology, real-time solver heading data through CPU , and use a three-axis accelerometer to proceed with heading compensation for a wide range tilt angle, belongs to the high-performance, high stabilitymilitary grade products , HCM500B with small size, low power consumption, widely used in the antenna securely, vehicle and system integration etc. many fields .
Features
- Heading accuracy: 0.3°~0.5°
- Roll angle measuring range :±180°
- Tilt angle resolution: 0.1°
- Tilt angle accuracy: 0.2°
- With hard magnetic ,soft magnetic and angle compensation
- Size: L113×W20×H20mm
- Standard RS232/RS485/TTL output interface
- Wide temperature : -40°C~+85°C
Applications
- Satellite antenna search satellite
- Marine navigation surveying and mapping
- GPS integrated navigation
- Antenna servo control
- Gun emission system
- Infrared imager
- Laser range finder
- Map for plotter
- ROV underwater robot navigation
- Oceanography measurement instruments
- Special occasion robot
- Unmanned aircraft
Technical Data
Compass heading parameter |
The best heading accuracy |
0.3° tilt <10° |
1.0° tilt <180° | ||
Resolution |
0.1° |
|
Compass tilt parameter |
Pitch accuracy |
0.1°<15°(Measuring range) |
0.1°<30°(Measuring range) | ||
0.1°<60°(Measuring range) | ||
0.2°<90°(Measuring range) | ||
Pitch tilt range |
±85° |
|
Roll accuracy |
0.1°<15°(Measuring range) |
|
0.1°<30°(Measuring range) | ||
0.1°<60°(Measuring range) | ||
0.2°<180°(Measuring range) | ||
Roll tilt range |
±180° |
|
Resolution |
0.1° |
|
Calibration |
Hard iron calibration |
Yes |
Soft iron calibration |
Yes |
|
Magnetic field interference calibration method |
24 points(3D calibration) |
|
Physical features |
Dimension |
L113×W20×H20mm |
Weight |
20g |
|
RS-232/RS485/TTL interface connector |
5PIN connector |
|
Interface features |
Start delay |
<50MS |
Maximum output rate |
20Hz/s |
|
Communication rate |
2400 to19200baud |
|
Output format |
Binary high performance protocol |
|
Power |
Power supply |
(Default)DC+5V |
(Customized)DC9~36V | ||
Current(Maximum) |
20mA |
|
Ideal mode |
18mA |
|
Sleep Mode |
TBD |
|
Enviroment |
Operating range |
-40℃~+85℃ |
Storage temperature |
-40℃~+100℃ |
|
Resistance shock performance |
2500g |
|
Electromagnetic compatibility |
According to EN61000 and GBT17626 |
|
MTBF |
≥40000 hours/times |
|
Insulation resistance |
≥100M
|
|
Shock resistance |
100g@11ms,3Times/Axis(half sinusoid) |
|
Anti-vibration |
10grms,10~1000Hz |
|
Weight |
80g(without cable) |
|
